Yieryi BLE-9100 BlueTooth Dissolved Oxygen Meter

Please Note ! ! !

1. Scan the QR code and download the mobile APP software. There are two types of QR code, Android and ios, please scan and download and install according to the corresponding QR code of the mobile phone system.

2. Turn on the Bluetooth function: After the water quality pen is turned on, there is no Bluetooth logo and it cannot connect to Bluetooth. You need to press and hold the power button for 5 seconds, and then you can connect to Bluetooth after the Bluetooth logo appears.

3. Turn off the Bluetooth function: After turning on the Bluetooth standard, press the power button for 5 seconds to turn off the Bluetooth function.

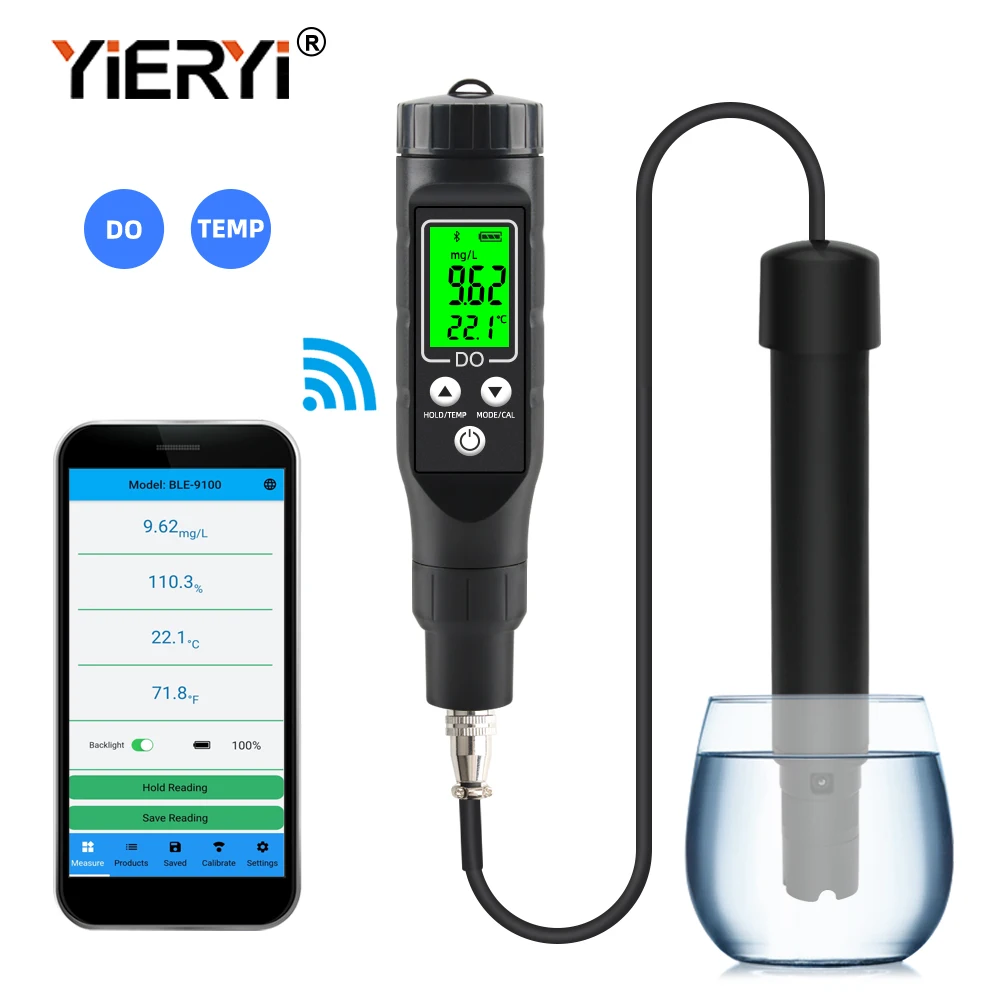

Yieryi BLE-9100 Blue Tooth-compatible Dissolved Oxygen Meter Professional Dissolved Oxygen Analyzer Oxygen Concentration Tester

1. Multi-function Meter with Bluetooth: mobile phone APP intelligent control, mobile phone full screen multi-parameter display, professional measurement of Dissolved oxygen concentration and Temp. The mobile phone can control the backlight. Drinking water, Aquarium, Fish Tank, Swimming Pool, Farmland irrigation, Laboratory Etc.

2. Cloud Based Data Management System: Precision real-time Bluetooth data transmission, Synchronize save time and data record, Share data or print excel tables, the mobile phone can view the calibration record.

3.Automatic Calibration Tester: With high sensitive replaceable probe, easy to operate, automatically calibrate pH, two sets of calibration points are optional

4. Multifunctional Meter with Automatic Temperature Compensation: Temperature can affect reading levels, digital pH tester has an even better range of (0.1 ~ 40) °C, 32.1-104.0°F, automatic temperature compensation can ensure that you are getting the best reading , so you can test with confidence in any environment

5. High Accuracy Water Tester: High-accuracy algorithm chip and electrode of our digital water quality tester ensure an accurate and fast response. EU CE certification, Chinese / English switching, backlit LCD design, read the measurement results at any time. One key to lock the reading function, you can view the data at any time. Can be set to automatically/manually save data. It can detect water data changes for a long time, and automatically set the time interval for recording measurement results. You can set the maximum and minimum values. When the measurement result is not within the set range, the value will be displayed in red.

6. Dissolved oxygen meter is a precise instrument for measuring dissolved oxygen and temperature. Dissolved oxygen probes are thin films with aurora sensors and thermistors for temperature measurement and temperature compensation. The permeable membrane separates the solution under test from the sensing electrode, but allows oxygen to pass through the membrane to react and measure the concentration.
2. Dissolved oxygen refers to the concentration of molecular oxygen dissolved in water, usually expressed in milligrams per liter (ppm) and saturation rate (%), that is, the percentage of dissolved oxygen in 1 liter of water. The oxygen concentration of our dissolved oxygen meter is 0.0-40.0 mg/L, and the range of most dissolved oxygen meters on the market is 0.0-20 mg/L. When measuring and calibrating, there is no need to open the protective cover of the electrode, just put the electrode into the solution for measurement.

BLE-9100 Specifications:

1. Model: BLE-9100
2. Dissolved oxygen: (0.0～30.0)mg/L, 0.0-300.0%
3. Temperature: (0.1 ~ 40) °C, 32.1-104.0°F
4. Dissolved Accuracy: ±1.5%F.S
5. Dissolved oxygen saturation Accuracy: ±1.5%F.S
6. Temperature Accuracy: ±0.5°C
7. Dissolved oxygen Resolution: 0.1MG/L
8. Oxygen concentration Resolution: 0.1%
9. Temperature Resolution: 0.1°C 0.1°F
10.Automatic temperature compensation range: 0-40°C
11.Use environment: 0.1-40.0°C RH max: 90%
12.Meter Size:155*35*35mm
13.Probe Line Length: 1.5m
14.Power supply: 3*1.5V button battery (NOT INCLUDE)
15.Power Time: Automatic shut down about 8 minutes
16.Packing list: 1*BLE-9100 Bluetooth Dissolved Oxygen Meter

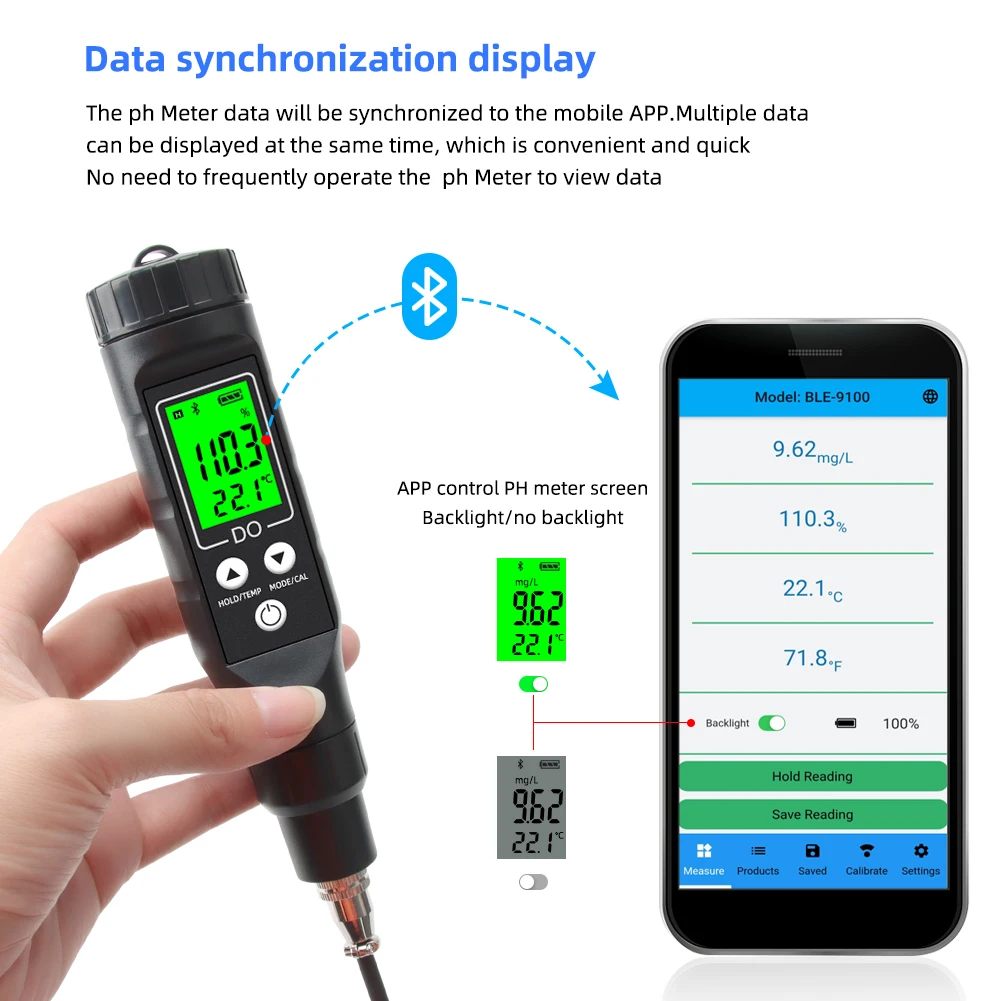

Data synchronization display：

The ph Meter data will be synchronized to the mobile APP.Multiple data can be displayed at the same time, which is convenient and quick No need to frequently operate the ph Meter to view data

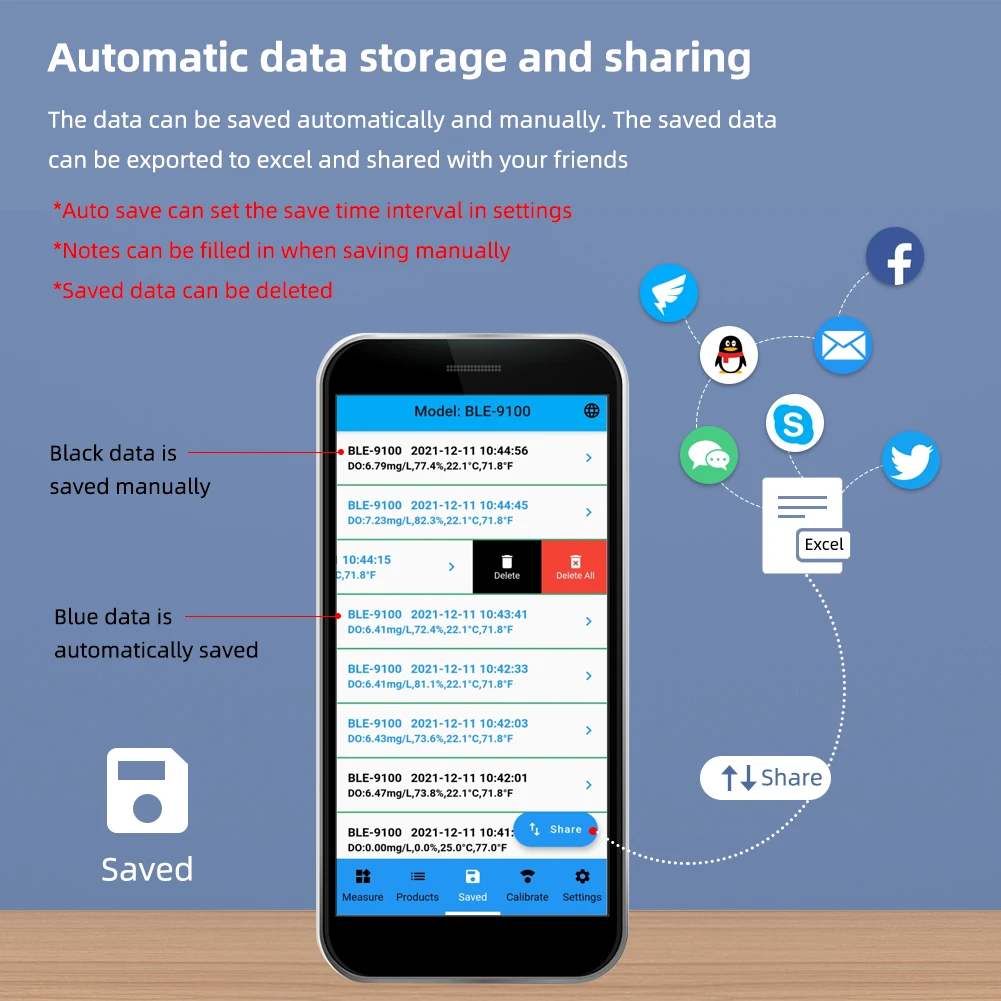

Automatic data storage and sharing ：

The data can be saved automatically and manually. The saved data can be exported to excel and shared with your friends

* Auto save can set the save time interval in settings.

* Notes can be filled in when saving manually

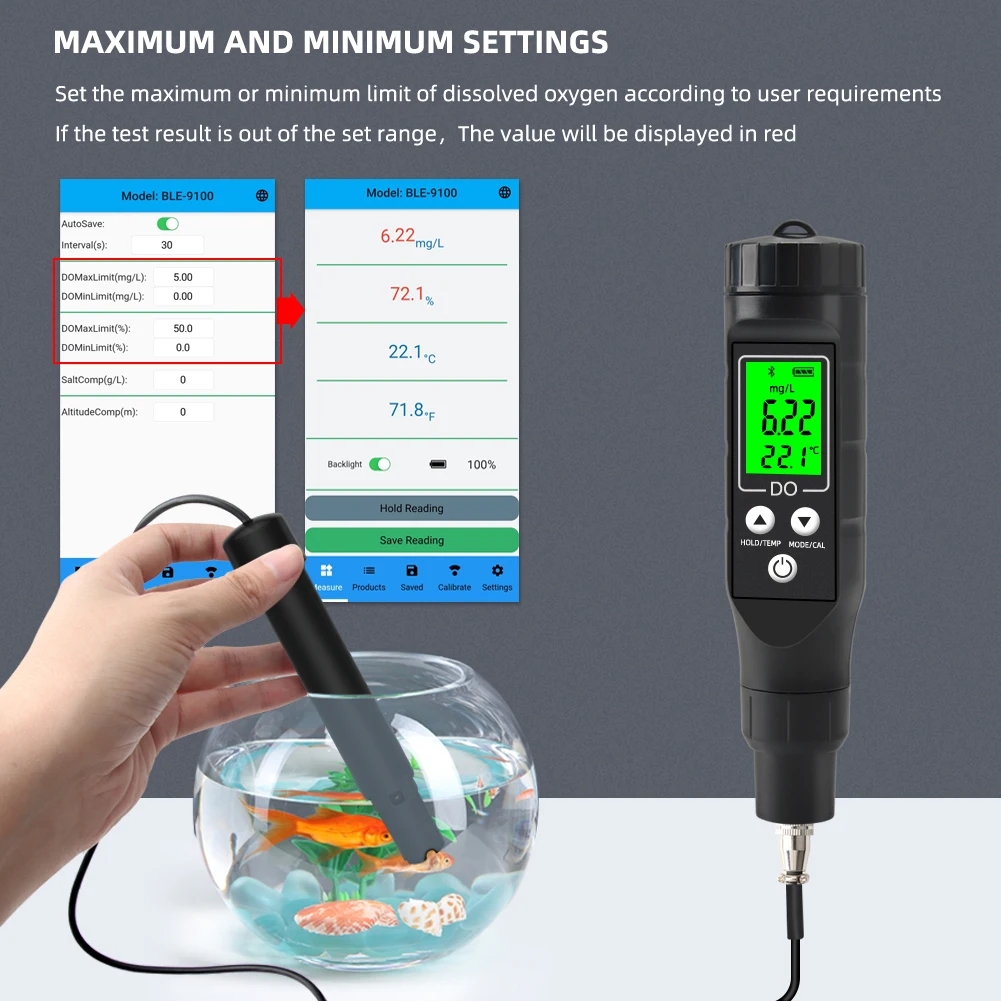

MAXIMUM AND MINIMUM SETTINGS

Set the maximum or minimum limit of dissolved oxygen according to user requirementsIf the test result is out of the set range, The value will be displayed in red

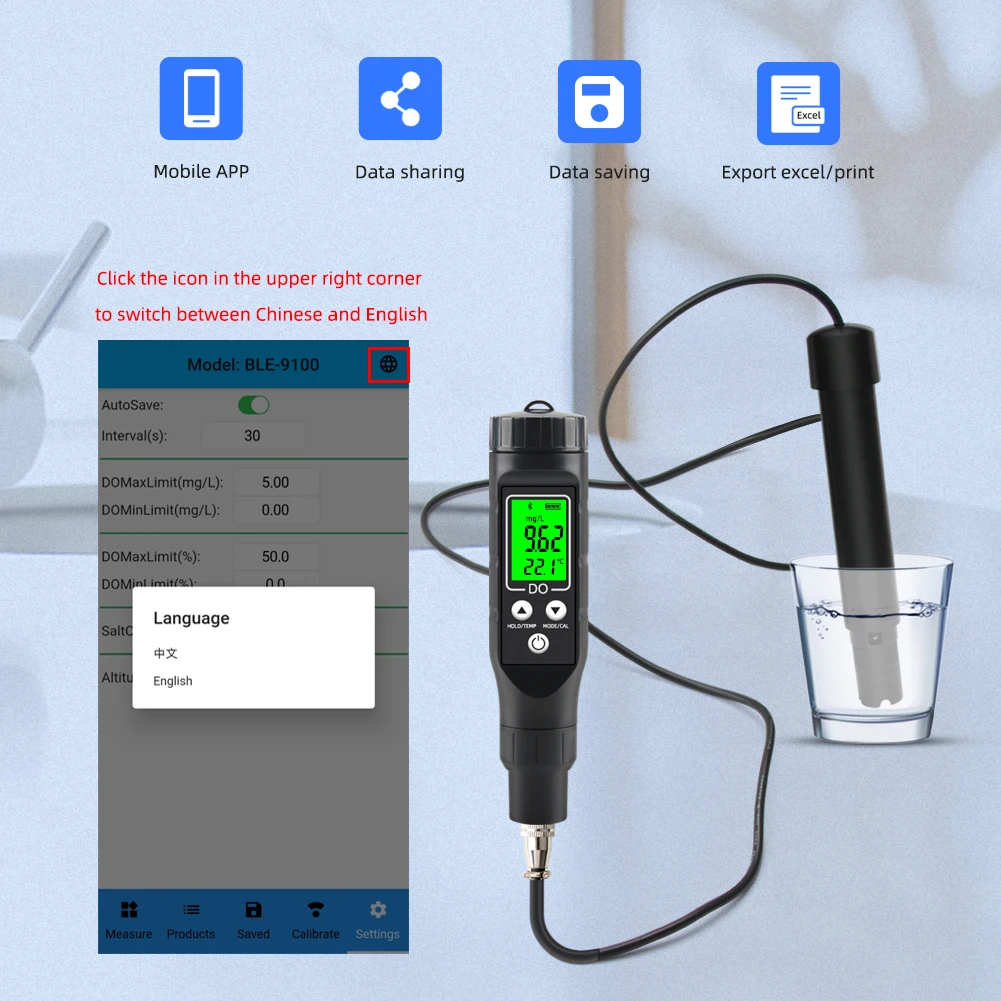

1.Mobile APP 2. Data sharing 3. Data saving 4.Export excel/print

Click the icon in the upper right corner to switch between Chinese and English
