Yieryi BLE-C600 Bluetooth-compatible Water Quality Pen

Please Note ! ! !

1. Scan the QR code and download the mobile APP software. There are two types of QR code, Android and ios, please scan and download and install according to the corresponding QR code of the mobile phone system.

2. Turn on the Bluetooth function: After the water quality pen is turned on, there is no Bluetooth logo and it cannot connect to Bluetooth. You need to press and hold the power button for 5 seconds, ，and then you can connect to Bluetooth after the Bluetooth logo appears.

3. Turn off the Bluetooth function: After turning on the Bluetooth standard, press the power button for 5 seconds to turn off the Bluetooth function.

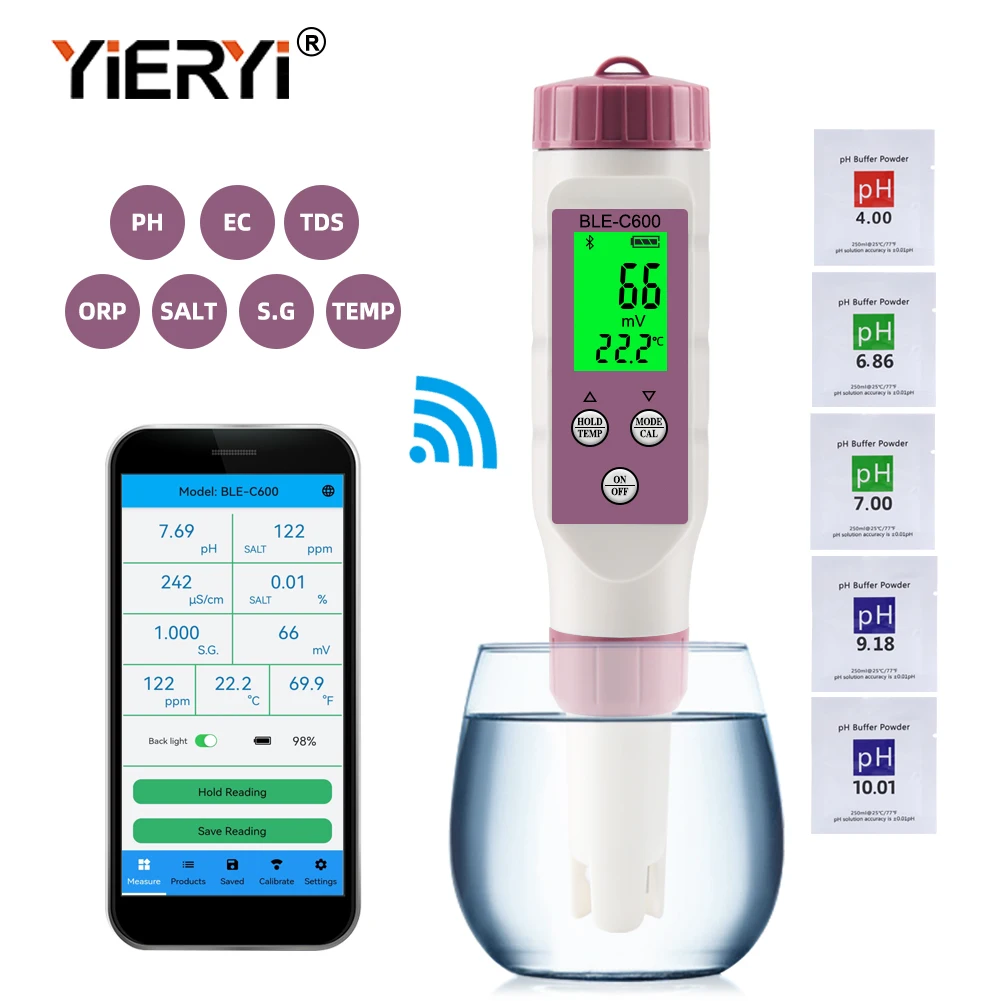

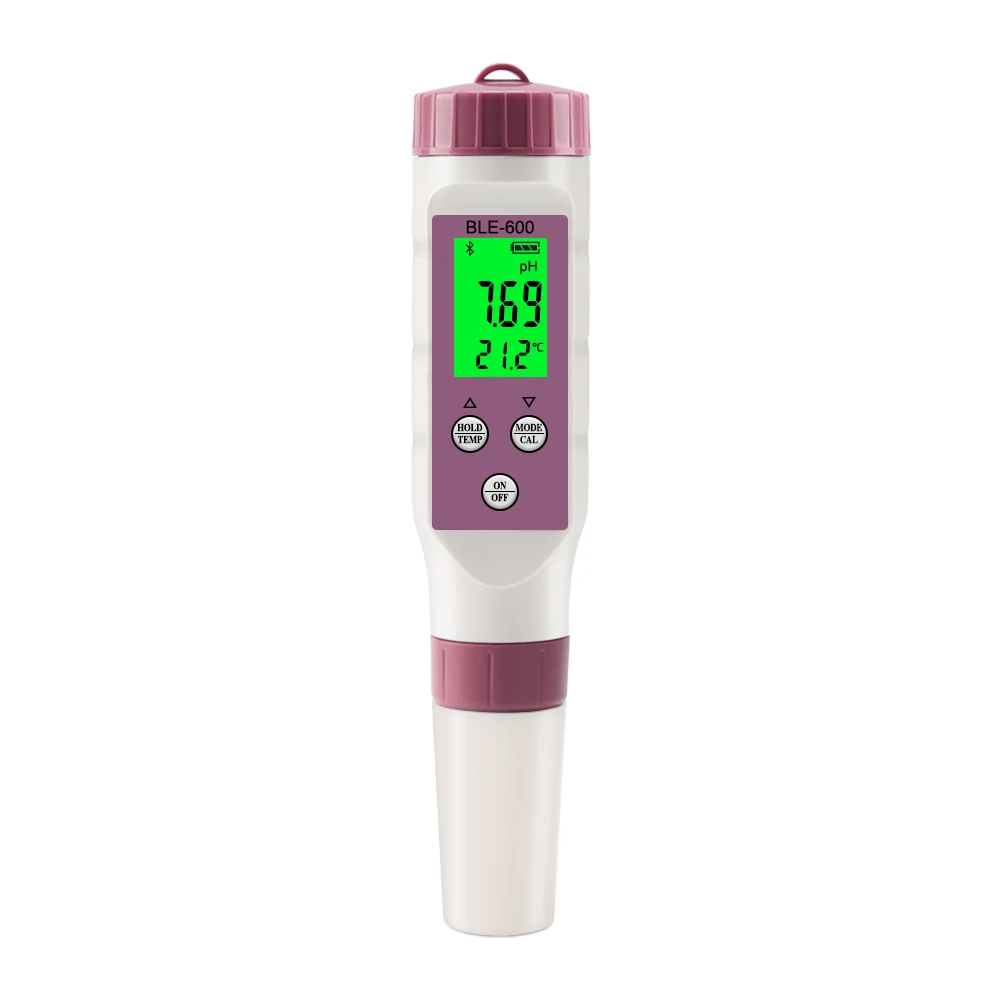

Yieryi BLE-C600 Blue Tooth-compatible Water Quality Pen 7 in 1 PH/EC/TDS/ORP/SALT/S.G/TEMP Meter APP Intelligent Control Tester

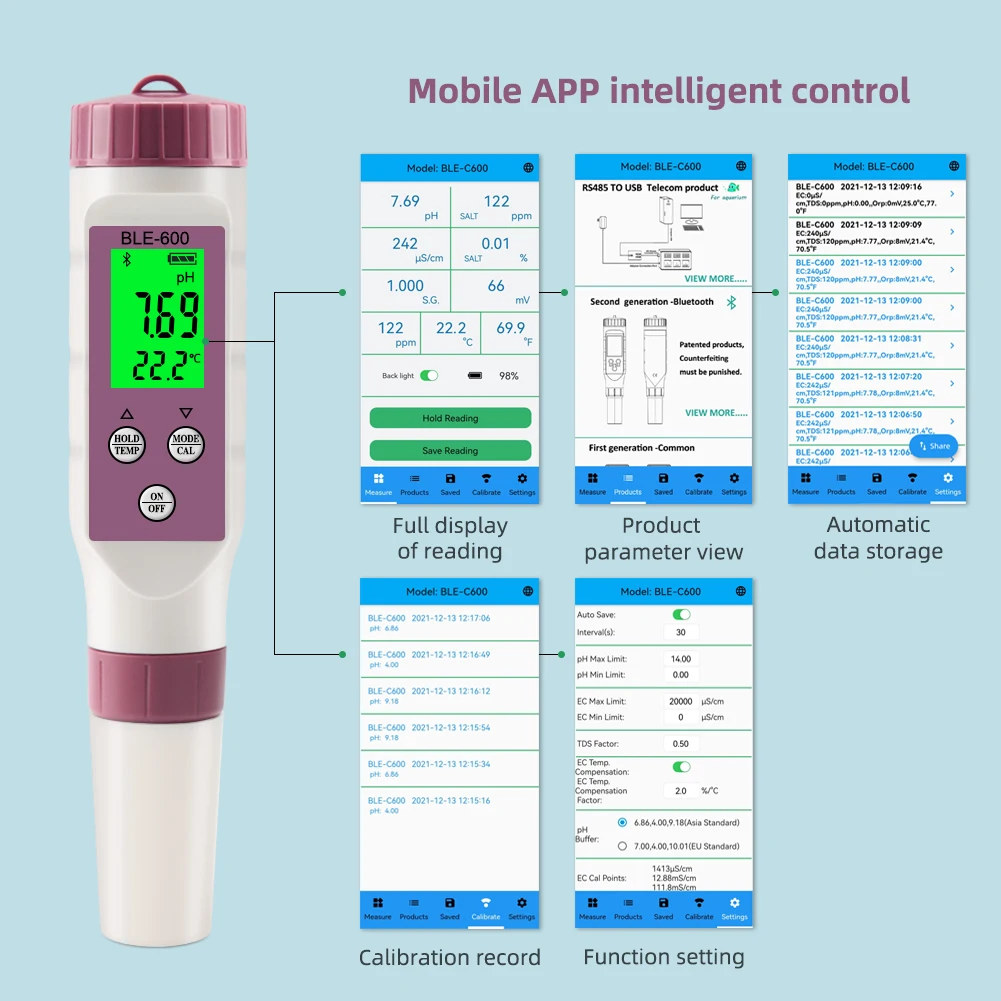

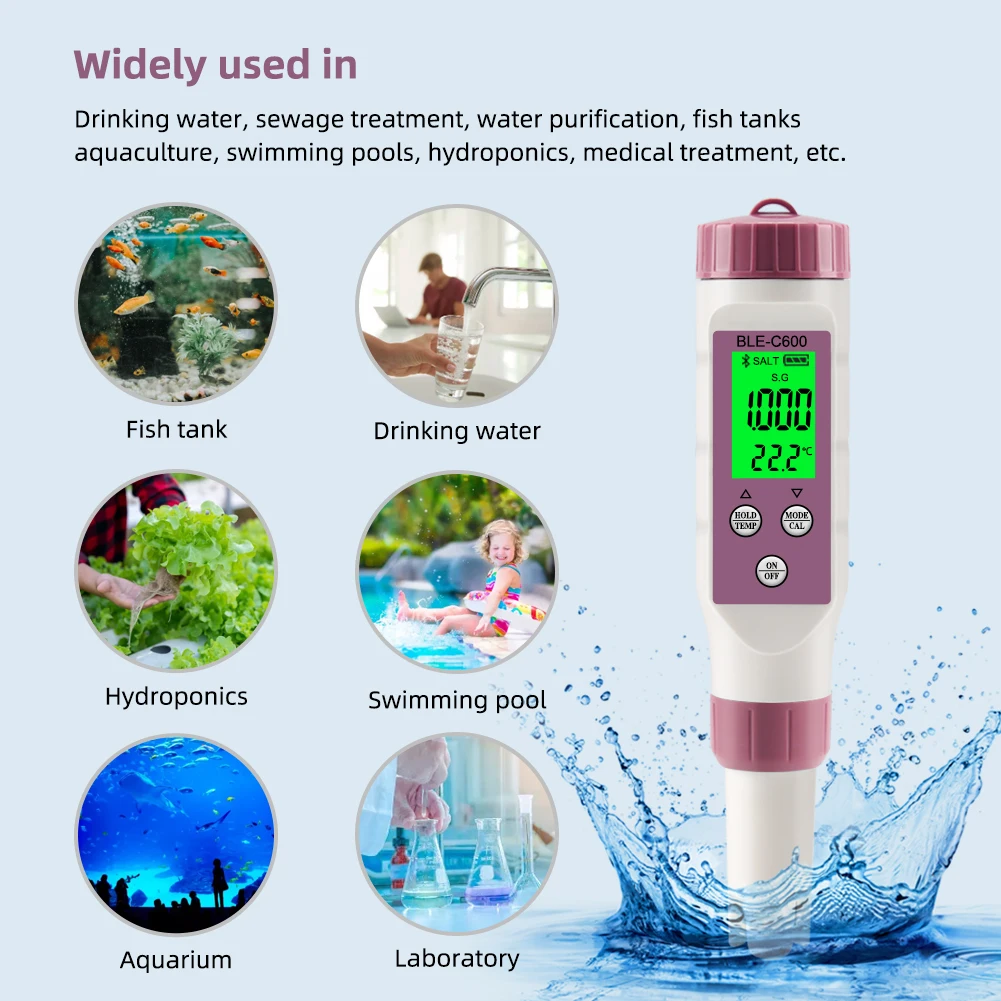

1. Multi-function Meter with Bluetooth: mobile phone APP intelligent control, mobile phone full screen multi-parameter display, professional measurement of PH/EC/TDS/ORP/SALT/SG/Temp. The mobile phone can control the backlight. Applicable Used in Drinking water, Aquarium, Fish Tank, Swimming Pool, Farmland irrigation, Laboratory Etc.

2. Cloud Based Data Management System: Precision real-time Bluetooth data transmission, Synchronize save time and data record, Share data or print excel tables, the mobile phone can view the calibration record.

3.Automatic Calibration Tester: With high sensitive replaceable probe, easy to operate, automatically calibrate pH, two sets of calibration points are optional

4. Multifunctional Meter with Automatic Temperature Compensation: Temperature can affect reading levels, digital pH tester has an even better range of 0.1-60.0 ℃ (32.1-140.0 °F), automatic temperature compensation can ensure that you are getting the best reading, so you can test with confidence in any environment(4.0+6.86+9.18/4.0+7.00+10.00).

5. High Accuracy Water Tester: High-accuracy algorithm chip and electrode of our digital water quality tester ensure an accurate and fast response. EU CE certification, Chinese / English switching, backlit LCD design, read the measurement results at any time. One key to lock the reading function, you can view the data at any time. Can be set to automatically/manually save data. It can detect water data changes for a long time, and automatically set the time interval for recording measurement results. You can set the maximum and minimum values. When the measurement result is not within the set range, the value will be displayed in red.

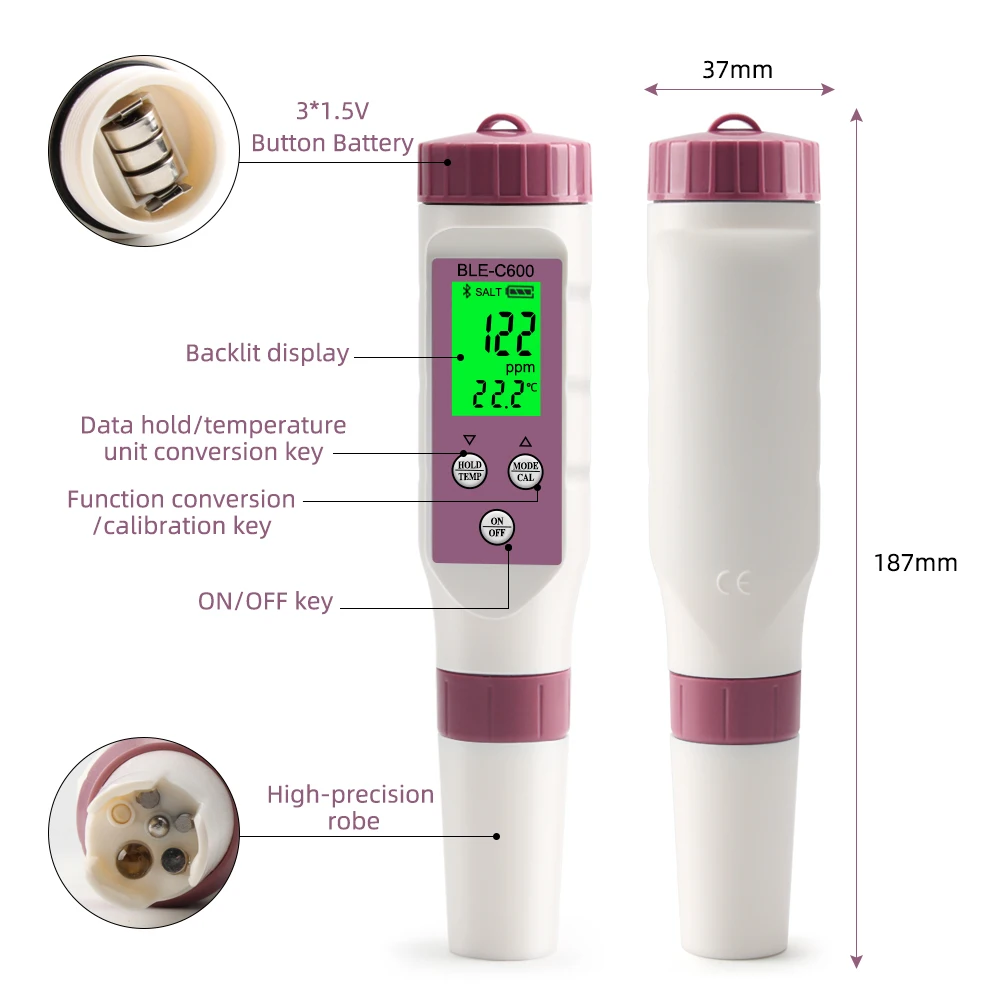

BLE-C600 Specifications:
1. Model: BLE-C600
2. PH: 0.00-14.00
3.TEMP: 0.1-60.0°C; 32.1-140.0°F
4. ORP: -999mV ~ +999mV
5.S.G: 1.000-1.222
6.EC: 0-9999 us/cm; 10.01-19.99 ms/cm; 20.1-400.0 mS/cm
7.SALT: 0.01-25.00%; 0-9999 ppm; 10.01-200.0 ppt
8. TDS: 0-9999 ppm; 10.01-200.0 ppt
9.TEMP: 0.1-60.0 °C; 32.1-140.0 °F
10. Two sets of calibration points are optional: 5.0+6.86+9.18/4.0+7.00+10.00
11. ATC: 0-60.0°C; 32.0-140.0°F
12.Work environment: 0.1℃-80.0℃; RH: max 90%
13.Waterproof grade: IP67
14.Size: 187m*3*37mm (7.36*1.46*1.46in)
15.Power supply mode: 3*1.5 V battery (not included), low battery warning
16.Weight: 95g
17.Packing list: 1 * BLE-C600 Bluetooth Salinity/PH/TDS/EC/ORP/Seawater Specific Gravity/Temperature Water Quality Pen

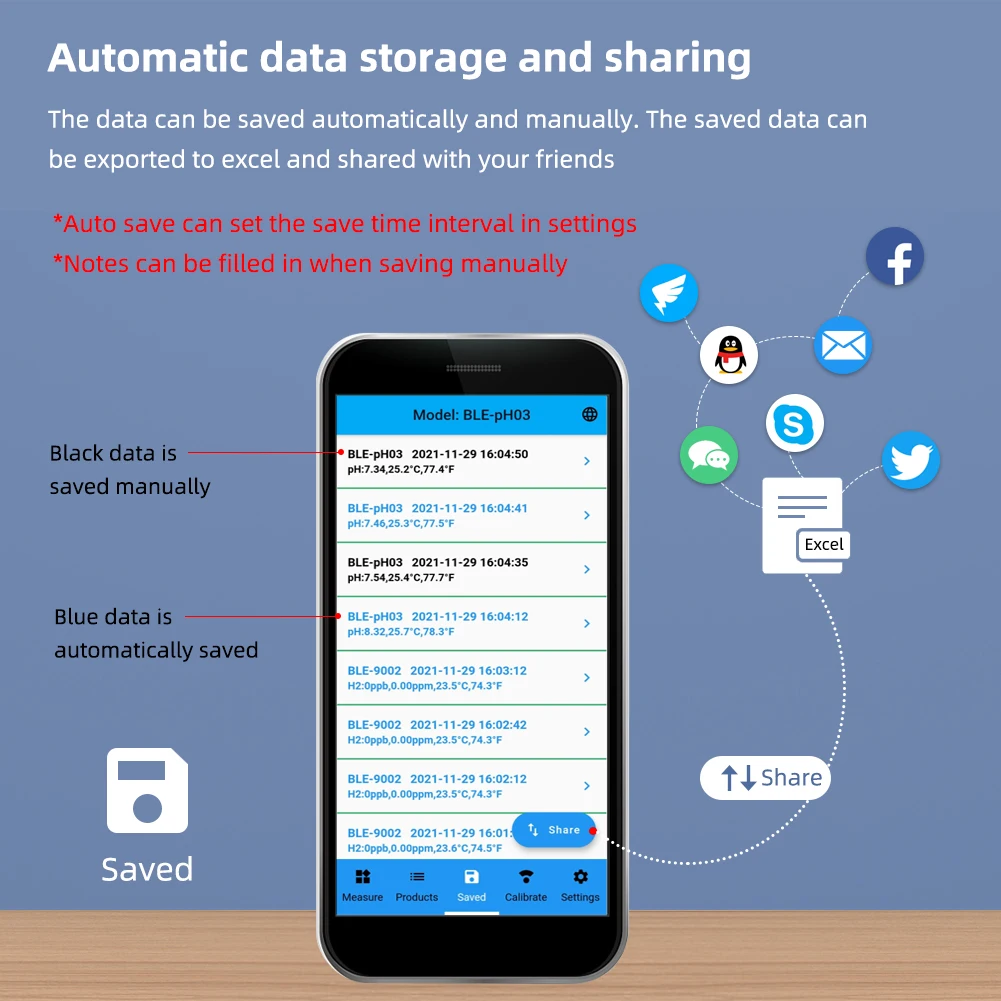

Automatic data storage and sharing ：

The data can be saved automatically and manually. The saved data can be exported to excel and shared with your friends

* Auto save can set the save time interval in settings.

* Notes can be filled in when saving manually

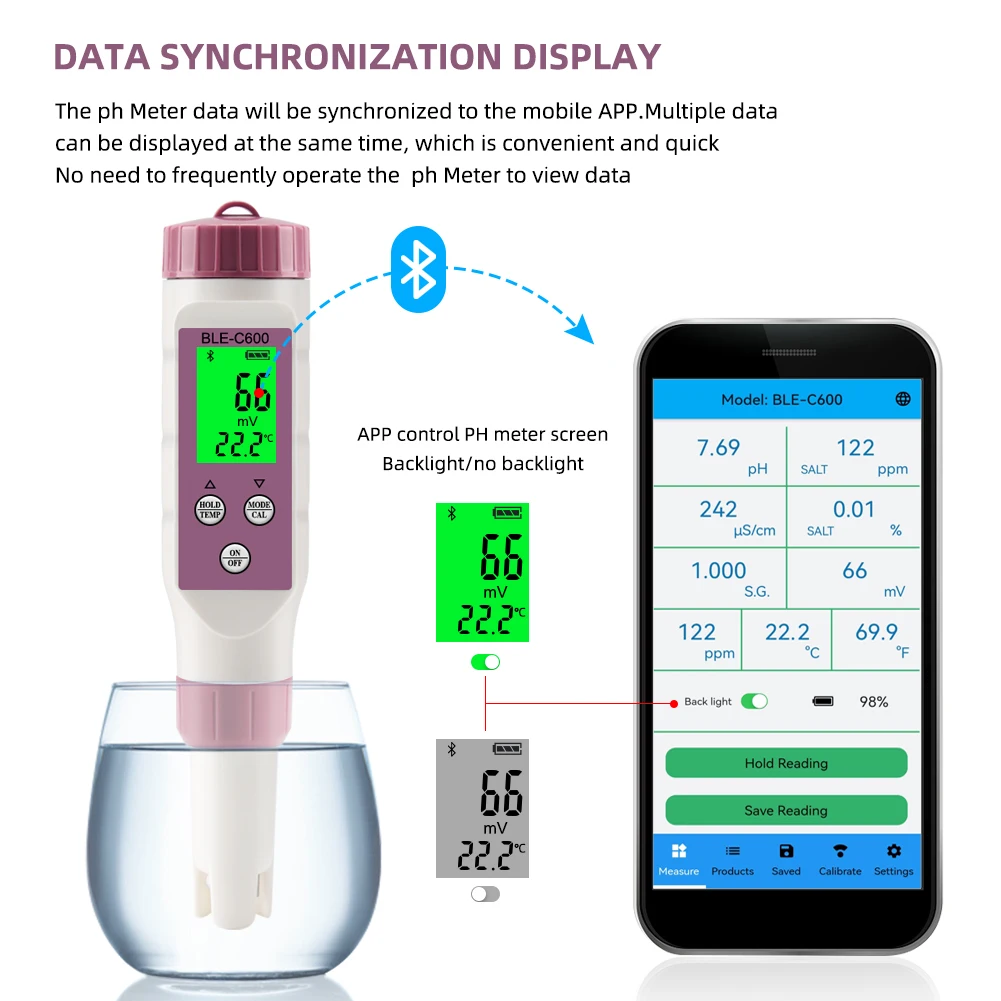

Data synchronization display：

The ph Meter data will be synchronized to the mobile APP.Multiple data can be displayed at the same time, which is convenient and quickNo need to frequently operate the ph Meter to view data

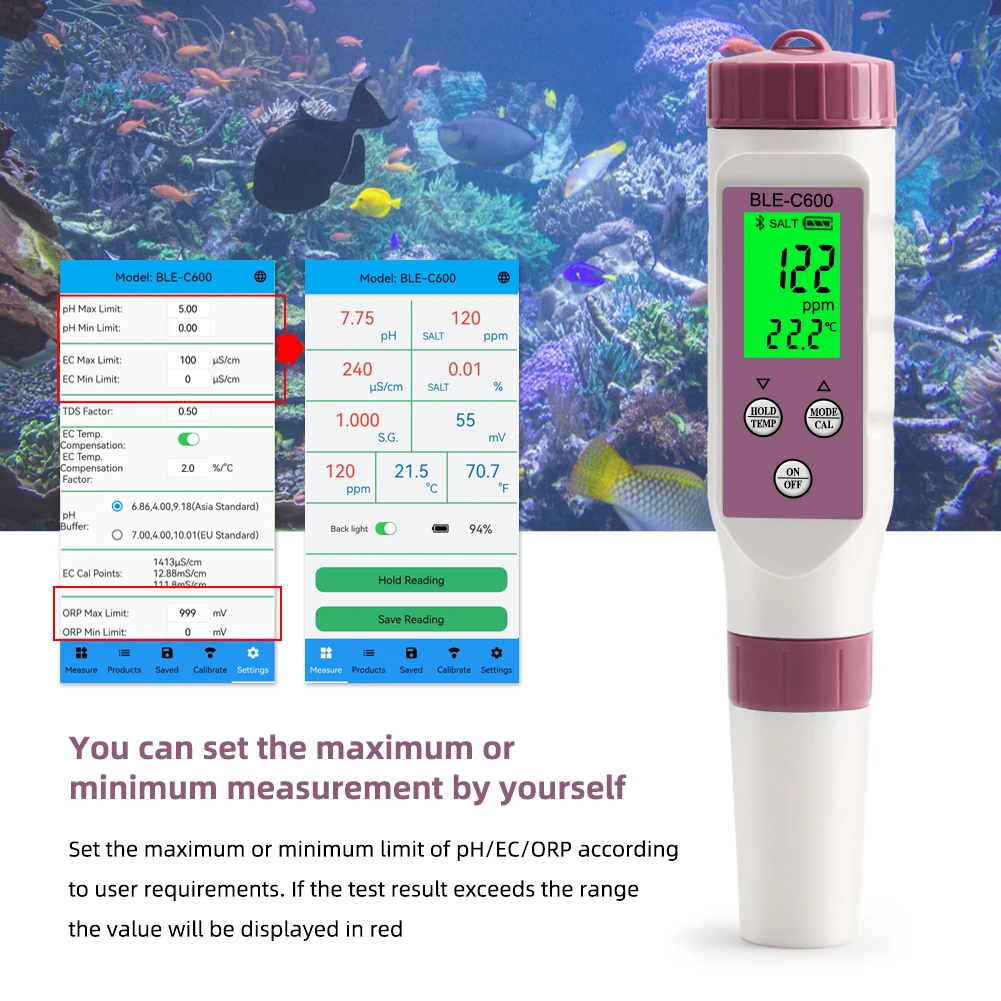

You can set the maximum or minimum measurement by yourself :

Set the maximum or minimum limit of PH according to user requirements, If the test result exceeds the range the value will be displaved in red

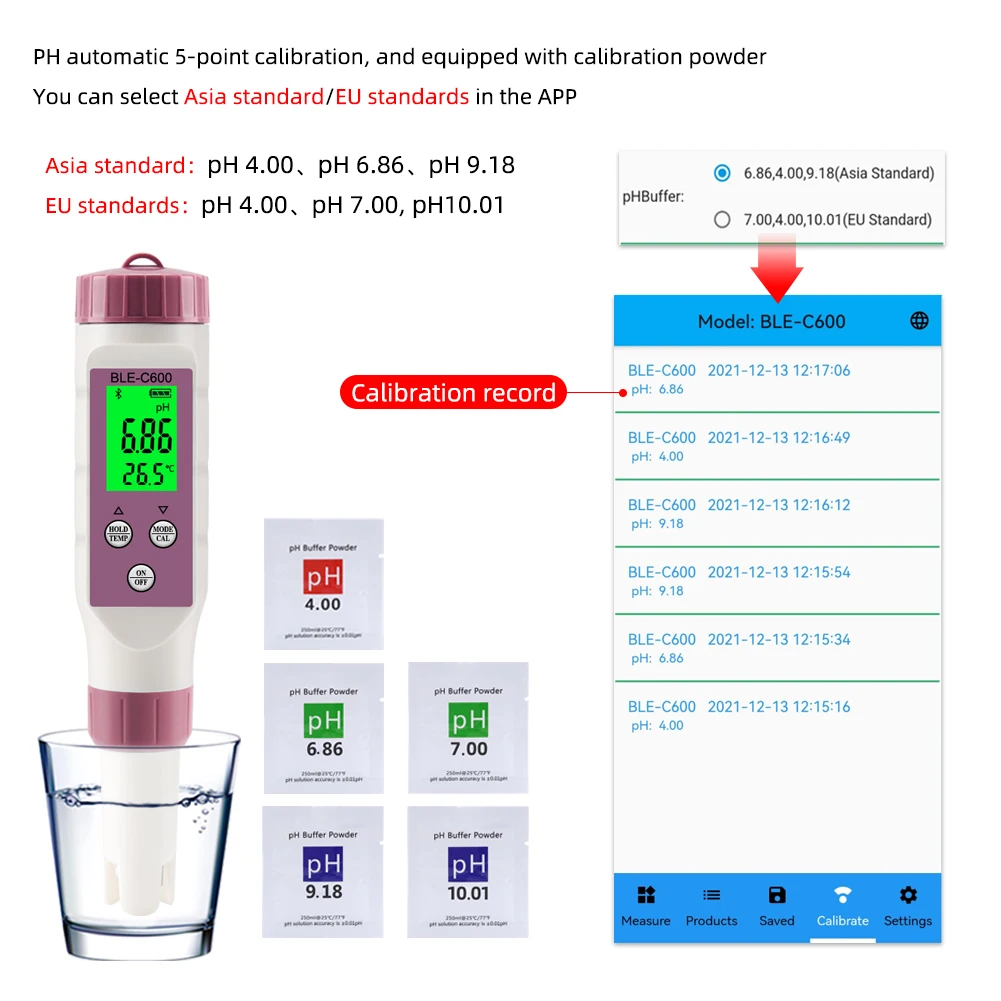

PH automatic 5-point calibration, and equipped with calibration powder You can select Asia standard/EU standards in the APP：

1 . Asia standard: pH 4.00, pH 6.86, pH 9.18

2 . EU standards: pH 4.00, рH 7.00, pH10.01

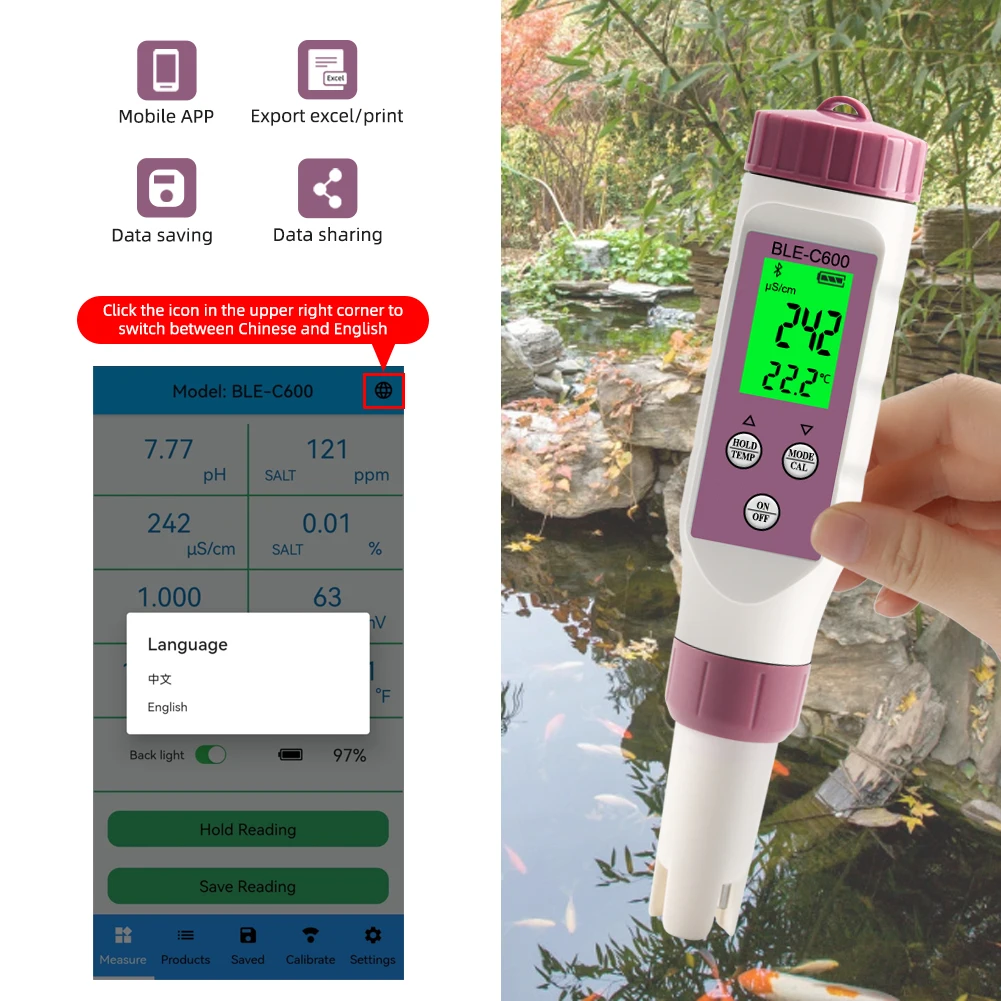

Click the icon in the upper right corner to switch between Chinese and English

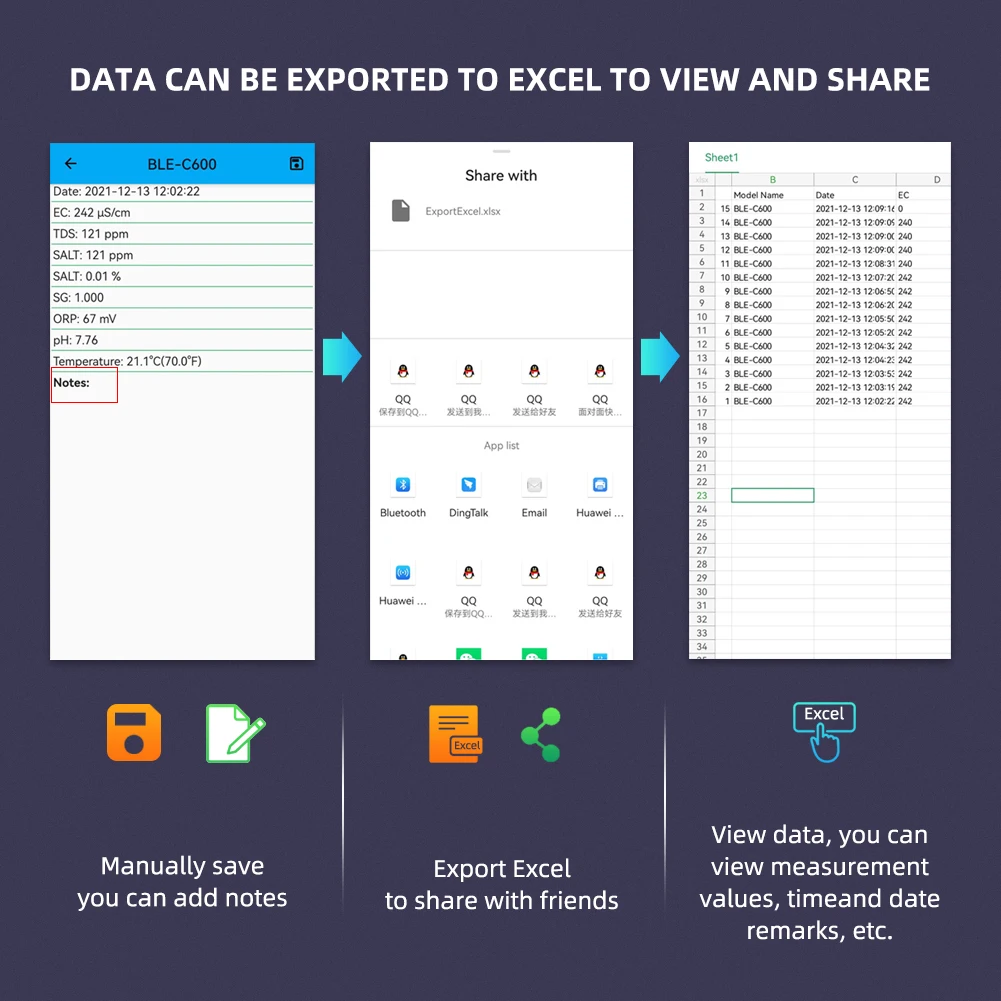

The data is exported to excel format for easy viewing and sharing :

1. Manually save you can add notes

2. Export Excel to share with friends

3. View data, you can view measurement values, time and date remarks, etc.

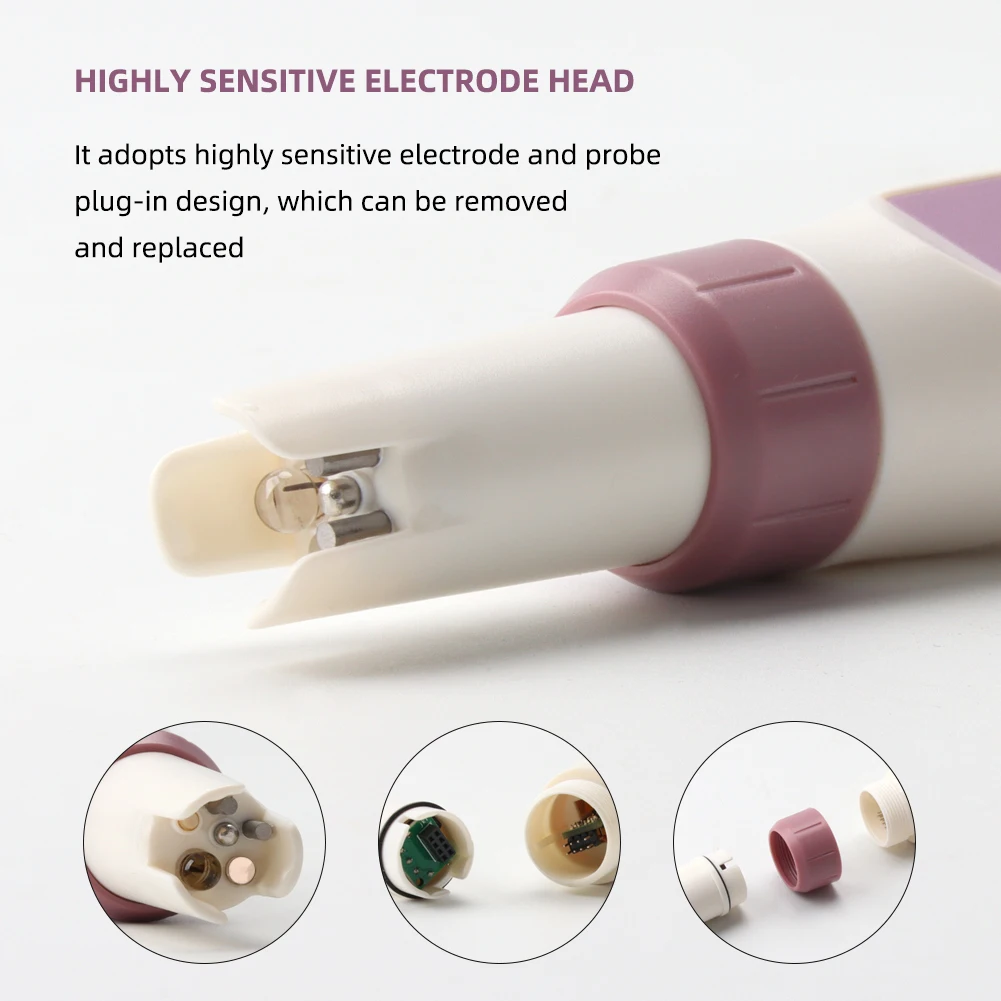

HIGHLY SENSITIVE ELECTRODE HEAD ：

It adopts highly sensitive glass electrode and antirust platinum electrode, which can be removed
