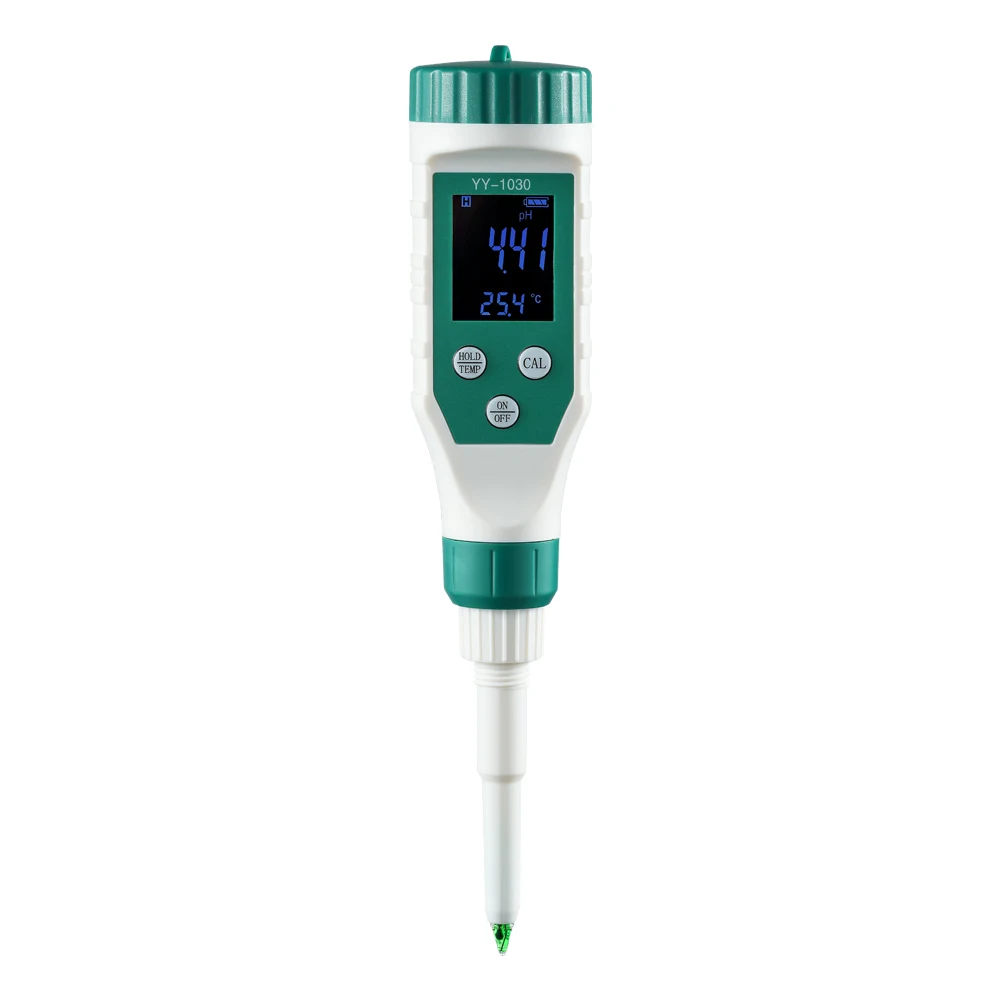

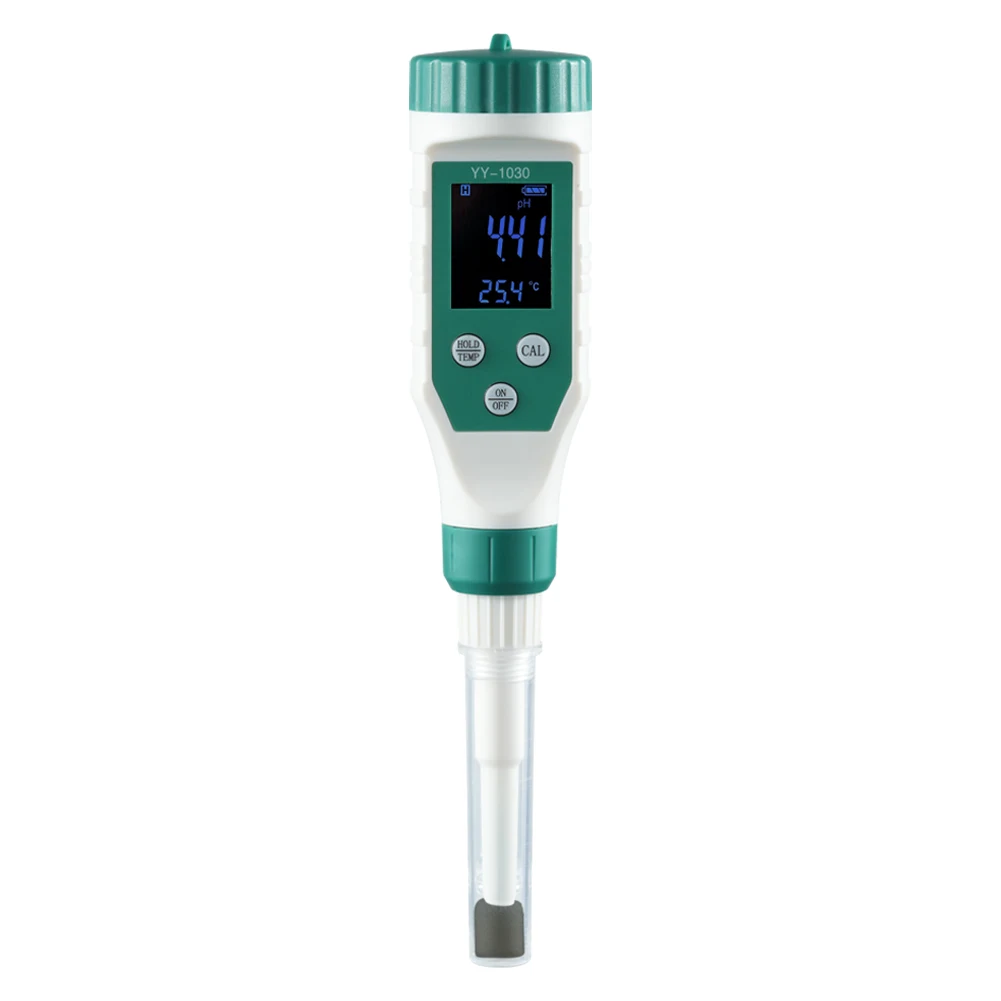

YY-1030 Smart Bluetooth PH Meter
- Is Smart Device: YES
- Model Number: YY-1030
- With Backlight Or Not: YES
- Display Type: DIGITAL
- Brand Name: yieryi
- YIERYI Model: YY-1030
- Origin: Mainland China
- Certification: CE
- Feature 1: Water PH Meter,swimming pools and spas,koi ponds,also for aquariums,seawater,seawater marine aquariums
- Feature 2: Fruit PH Meter
- Feature 3: Food PH Meter Cheese Meat Flour Products
- Feature 4: Cosmetic PH Meter
- Feature 5: Soil PH Meter

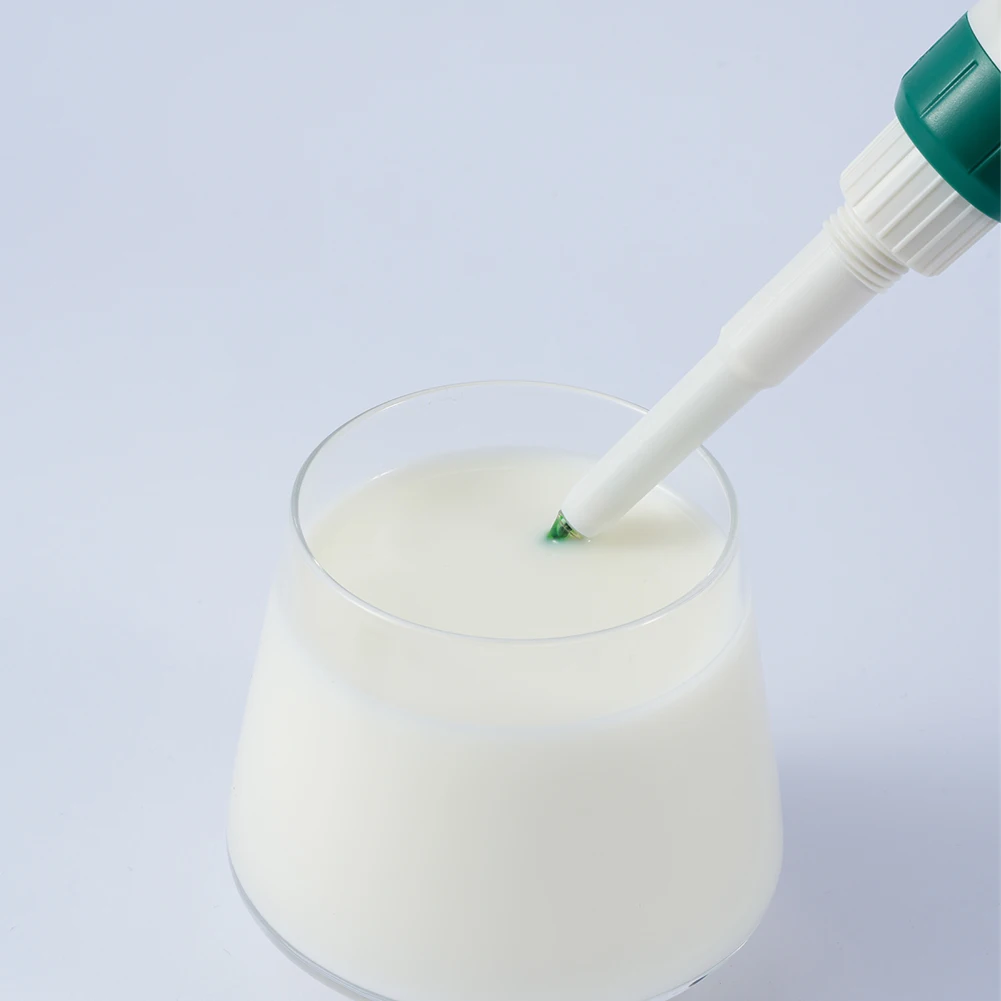

- Feature 6: Detecting the pH value of liquids
- PH: 0.011~14.00ph
【Upgraded Smart Bluetooth PH Tester】：The new super version of the PH tester adds wireless connectivity. The pH tester connects to your phone or tablet in seconds and you can get all your readings in one view. It makes testing more accurate and convenient. Note: Please read the user manual for specific operations, if there is any abnormality, please contact customer service.

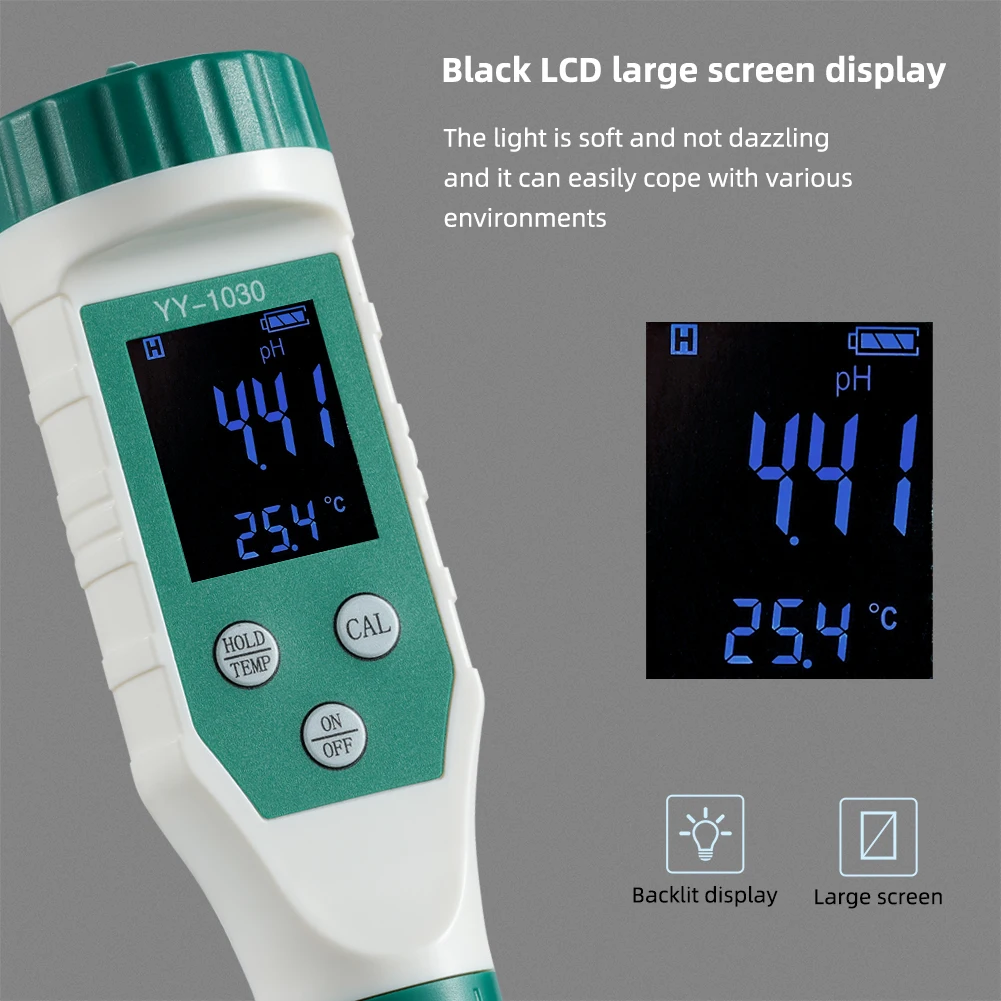

【Easy Operation】：Immersed the electrode of the tester in water and waited for a few seconds to get the data on the LCD screen. No need to match colors one by one like test strips. The operation is simpler and more convenient. Support mobile APP one-button backlight control, easy to read even in dim light.
【One-key data storage and sharing】：One-key storage of all measurement data, intelligent control of mobile APP, real-time viewing, long-term recording of measurement and calibration data, easy comparison and analysis, data synchronization, automatic/manual storage; export Exce/print-share, Remarks can be added to display the location, and the measurement value, time, date, remarks, location, etc. can be viewed. Make testing work more efficient and fun.

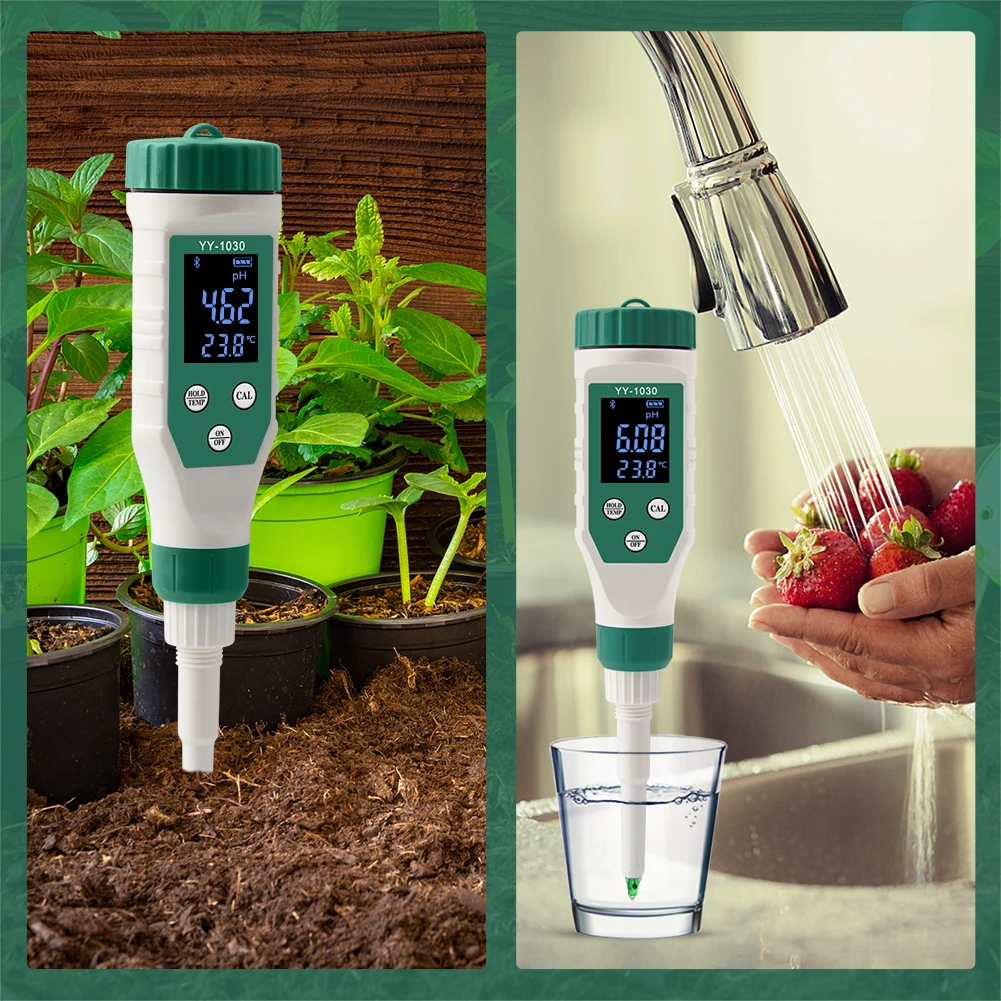

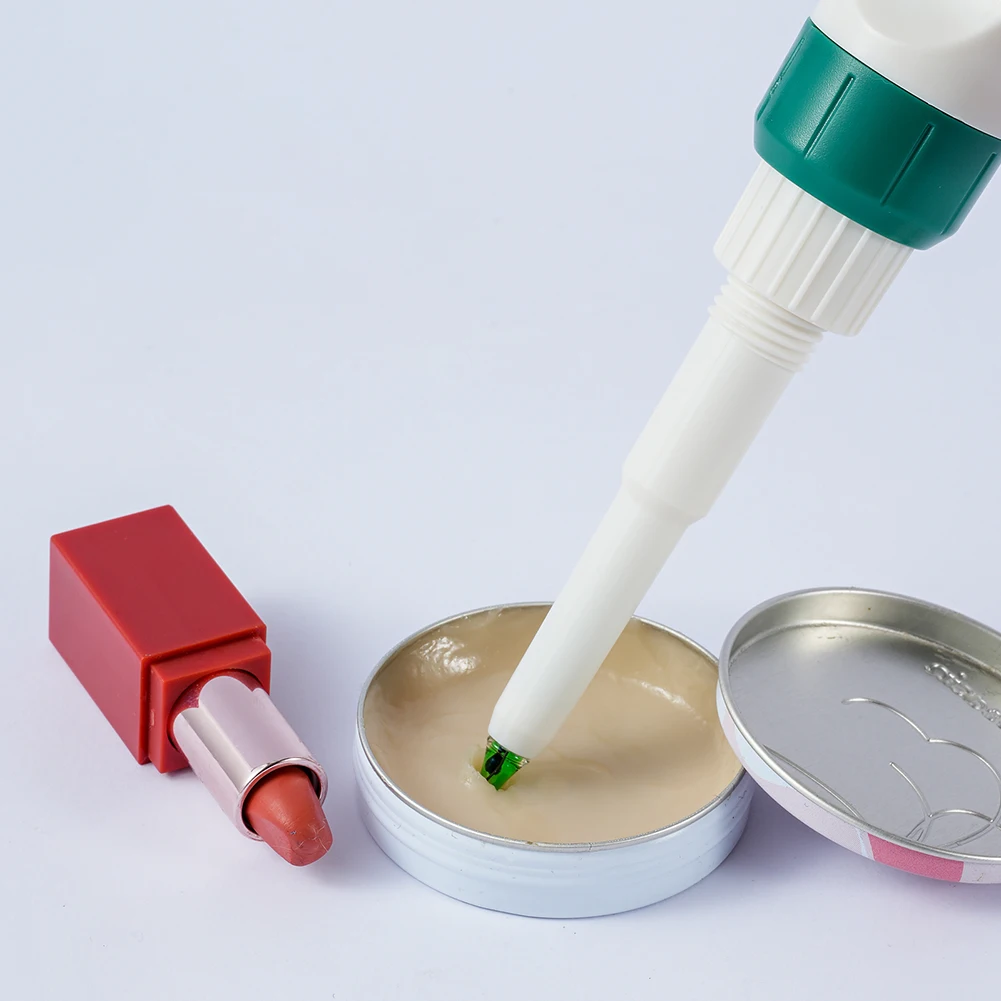

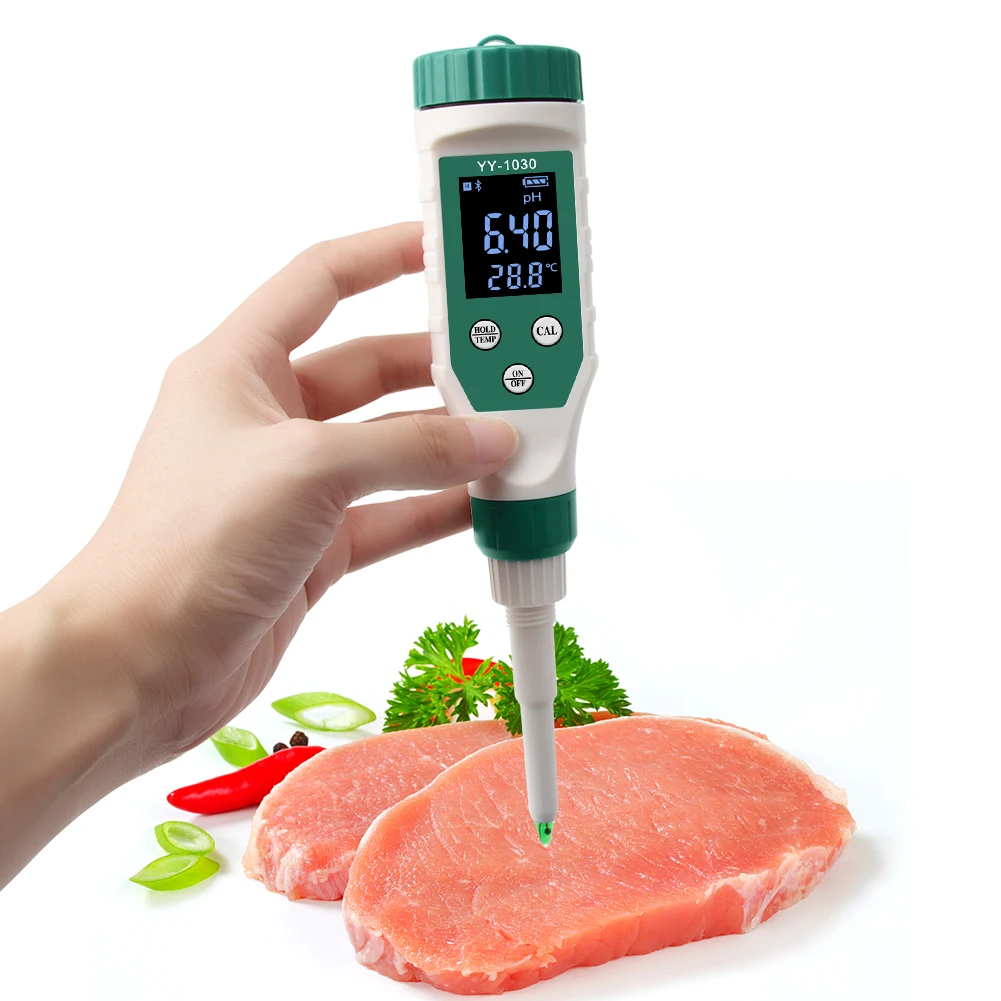

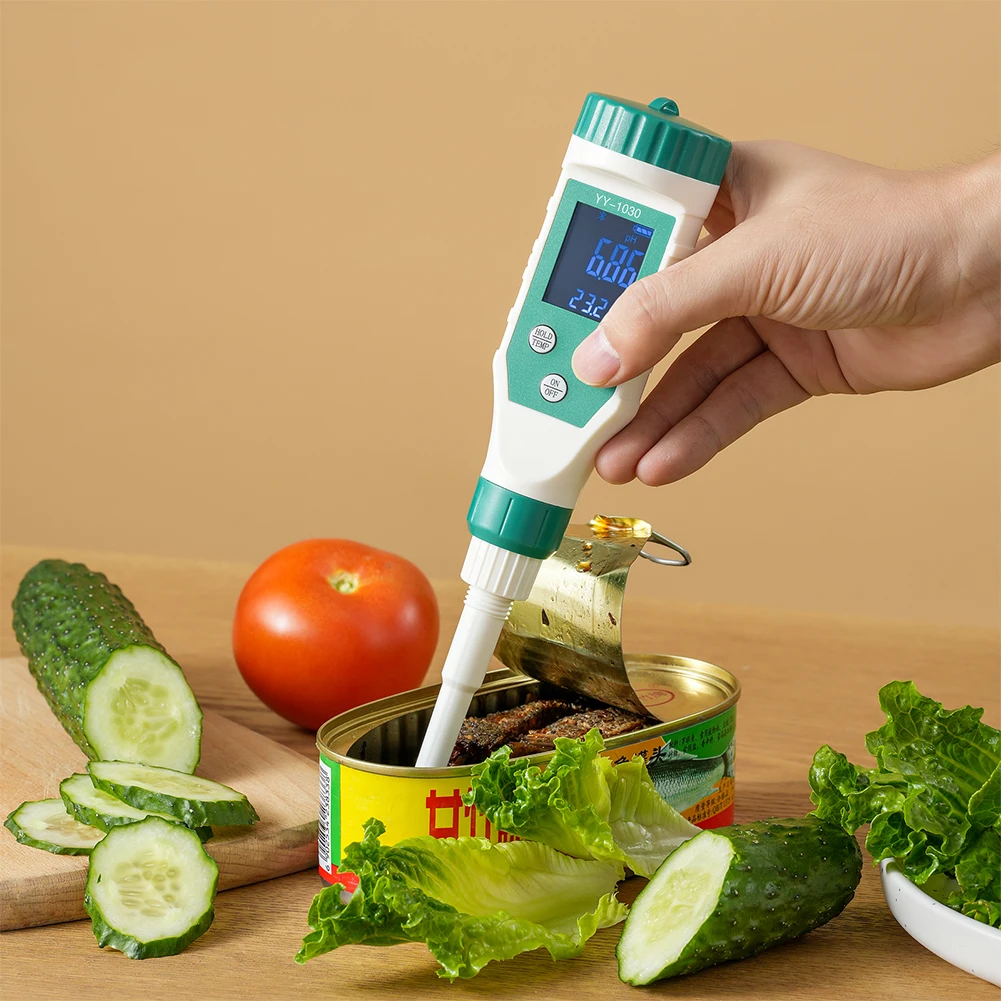

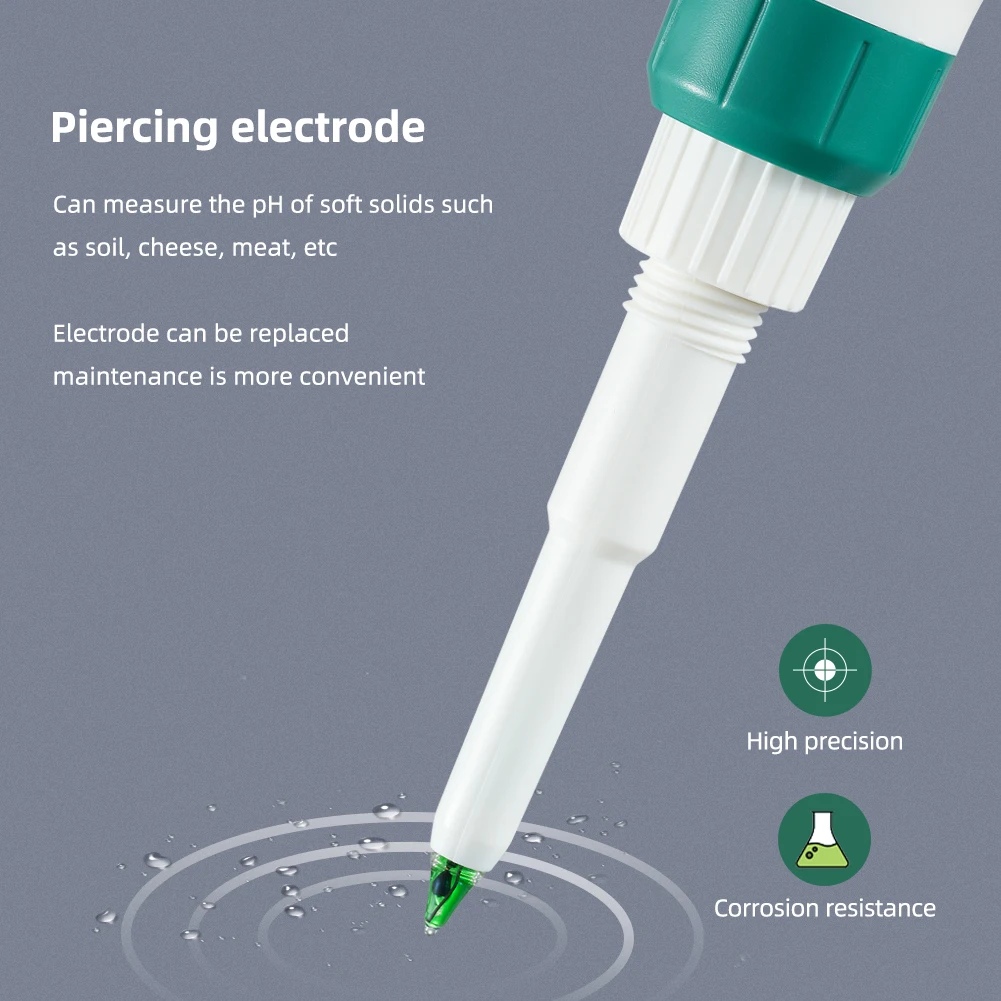

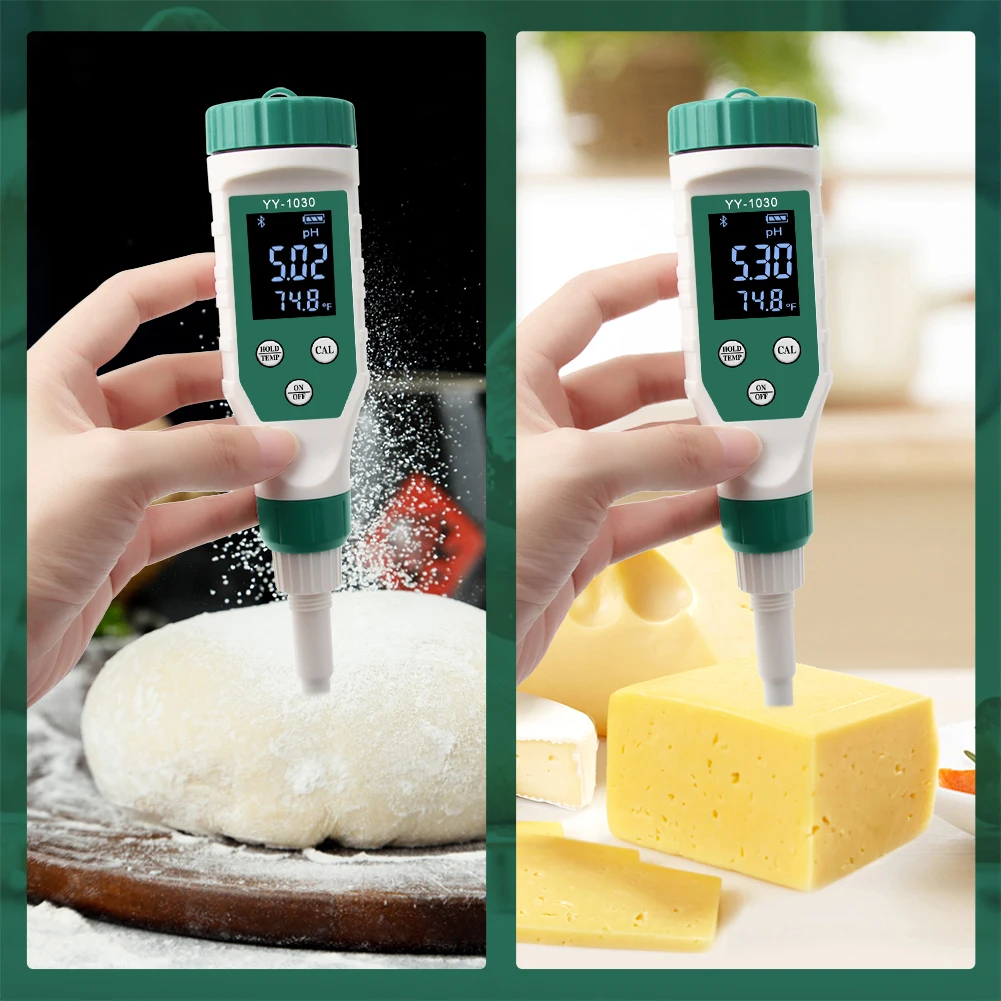

【High-precision replaceable puncture electrode, wide application range】：Mainly used to measure water-containing solid or semi-solid media, such as: cheese, cosmetics, meat, fruit, flour products, soil and solid medium and other solid and semi-solid samples Detection, suitable for swimming pool pools and spas, koi fish ponds, also suitable for aquarium, saltwater, marine/saltwater fish tank PH testing.

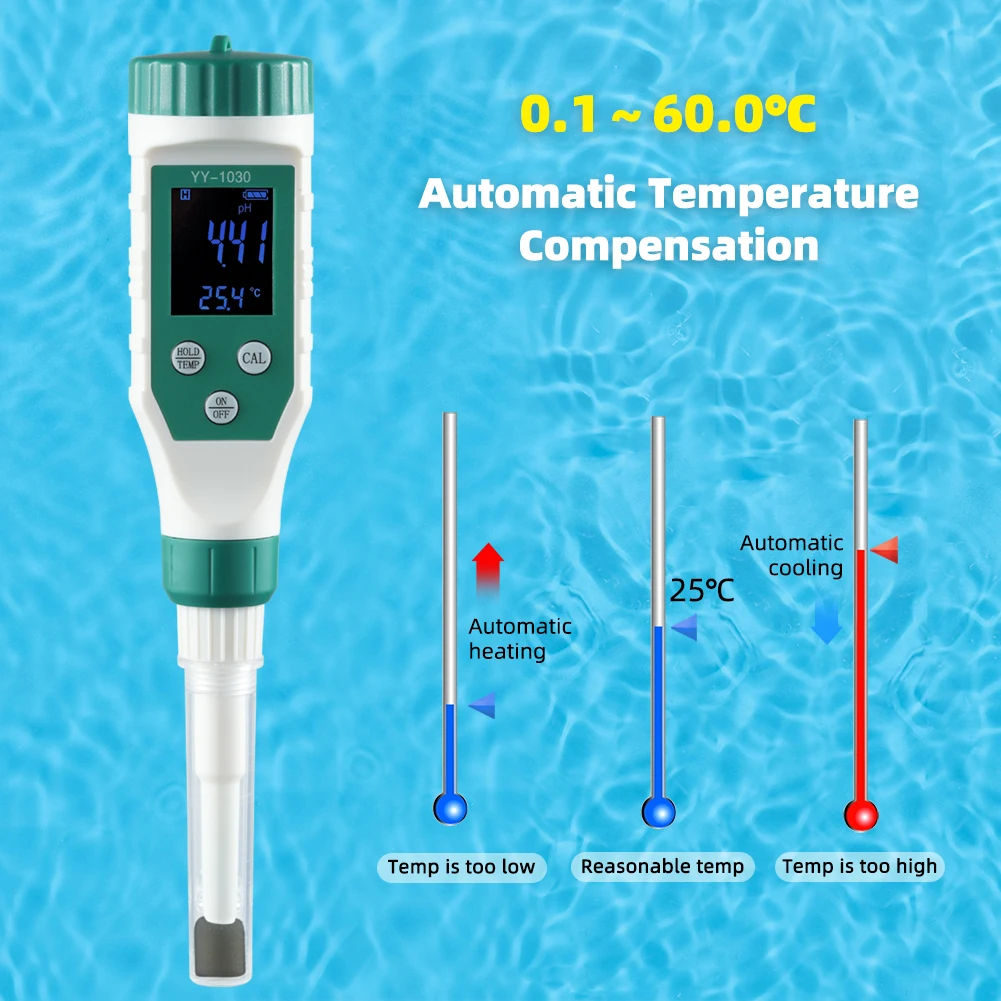

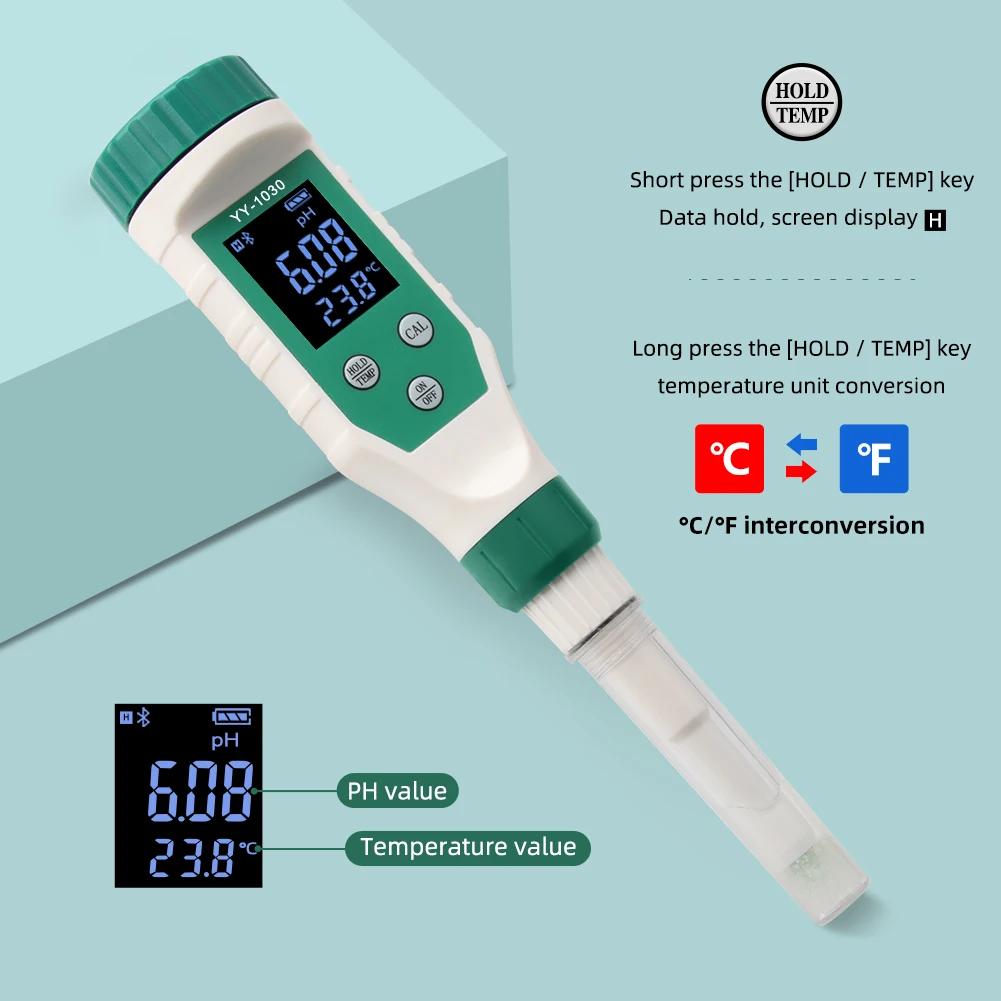

【Multi-function】：Measurement data lock, °F&°C temperature unit conversion, automatic temperature compensation, IP67 waterproof function, data synchronization, setting measurement upper limit (maximum and minimum value), 2 groups of PH calibration (6.86/ 4.00 / 9.18 or 7.00 / 4.00 / 10.01)
Notice:
1. When inserting the electrode, please pay attention to the even force to prevent. Electrodes will not be damaged. If the sample to be tested is relatively solid (such as meat and fruit), a small hole should be pierced with a tapered knife before inserting the electrode. When testing food (such as: sushi, cheese, meat, fruit, etc.), always use samples for testing, and testing samples are not edible.
2. The product APP will be updated from time to time. If your phone fails to connect wirelessly or fails to store data during use, you need to uninstall the current APP and download the latest version to reinstall.

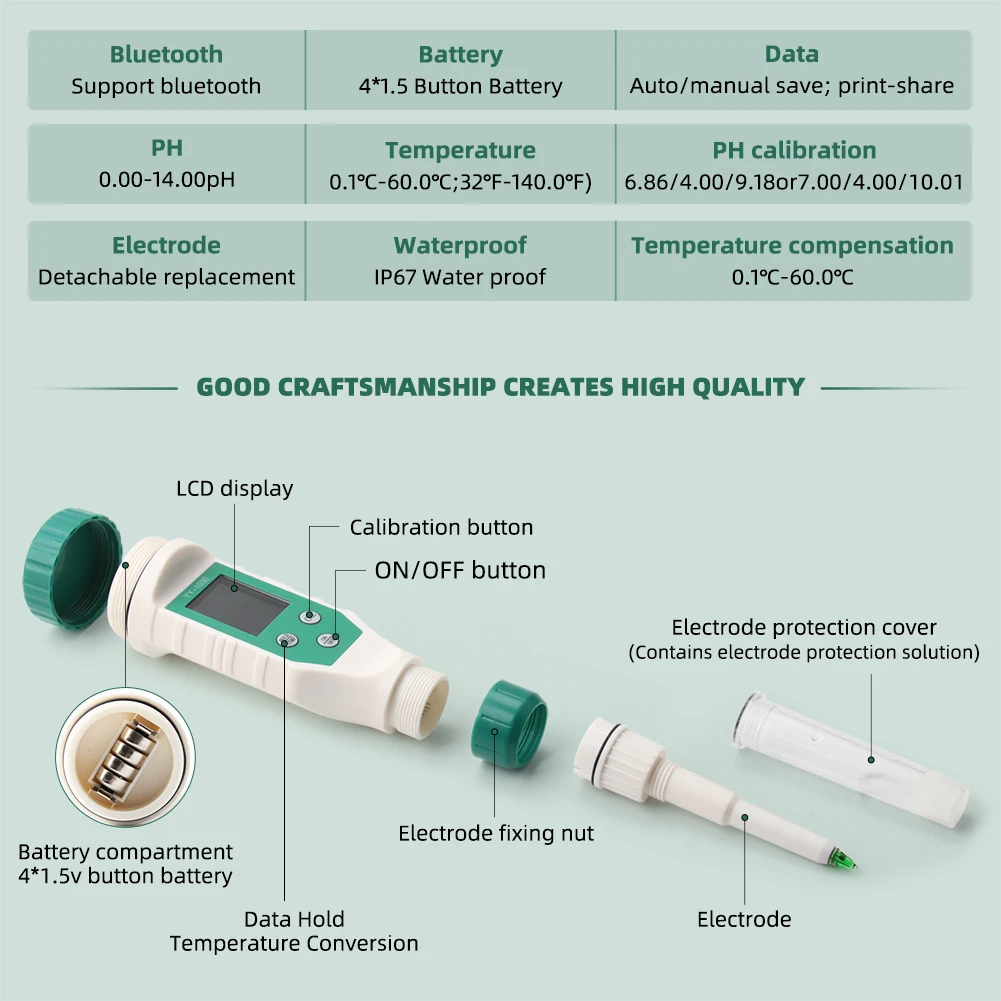

Specifications :
1.Moder: YY-1030

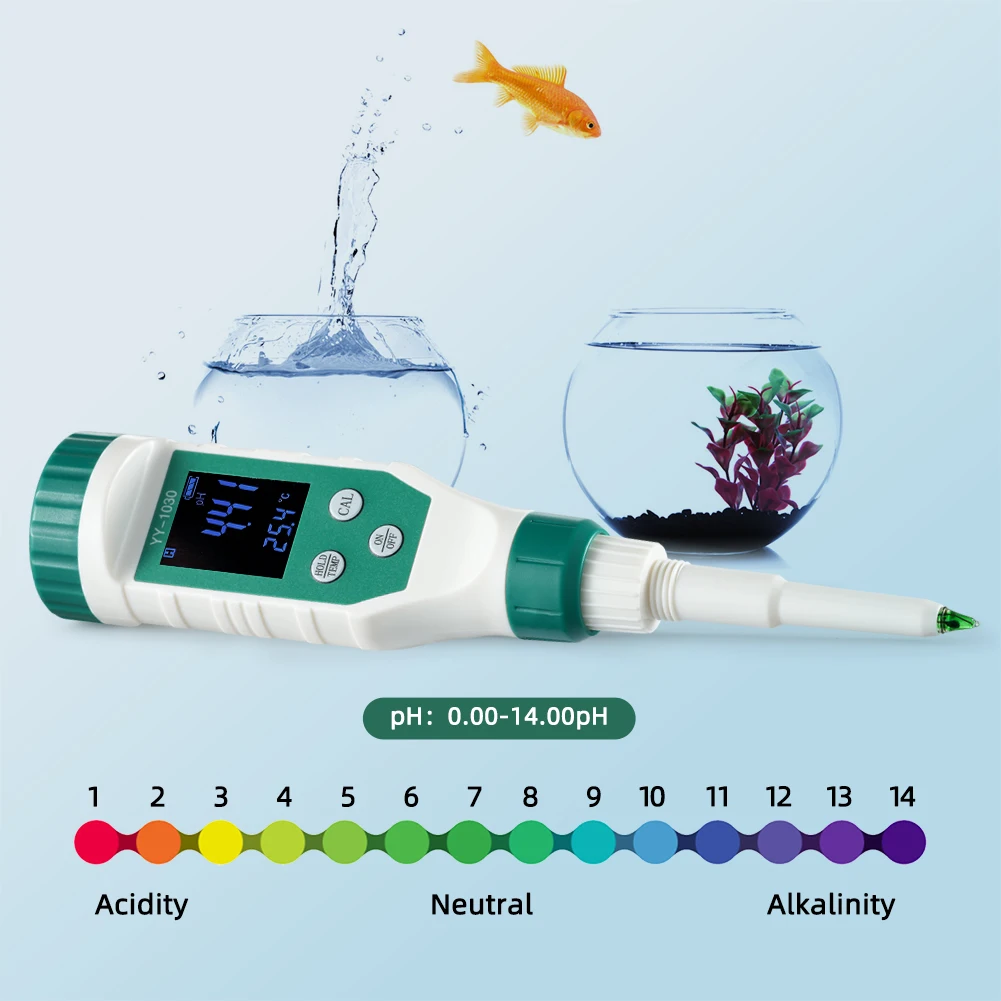

2.PH Range: 0.00-14.00 pн
3.PH Resolution: 0.01pH
4.PH Accuracy: ±0.1pH
5.TEMP Range: 0.1C-60.0°C, 32.1°F-140.0°F
6.TEMP Resolution: 0.1°C; 0.1°F
7.TEMP Accuracy: ±0.5°C
8. PH Calibration: 6.86/ 4.00 / 9.18 or 7.00 / 4.00 / 10.01 (Optional two sets of calibration modes) Calibration records can be viewed
9. Electrod Replaceable: Puncture electrode (3.3M KCL Electrode Storage Solution)
10.Temp. ATC: 0.1°C-60.0°C
11.Environment: 0.1°C-80°C; RH: max 90%
12.Waterproof: IP67

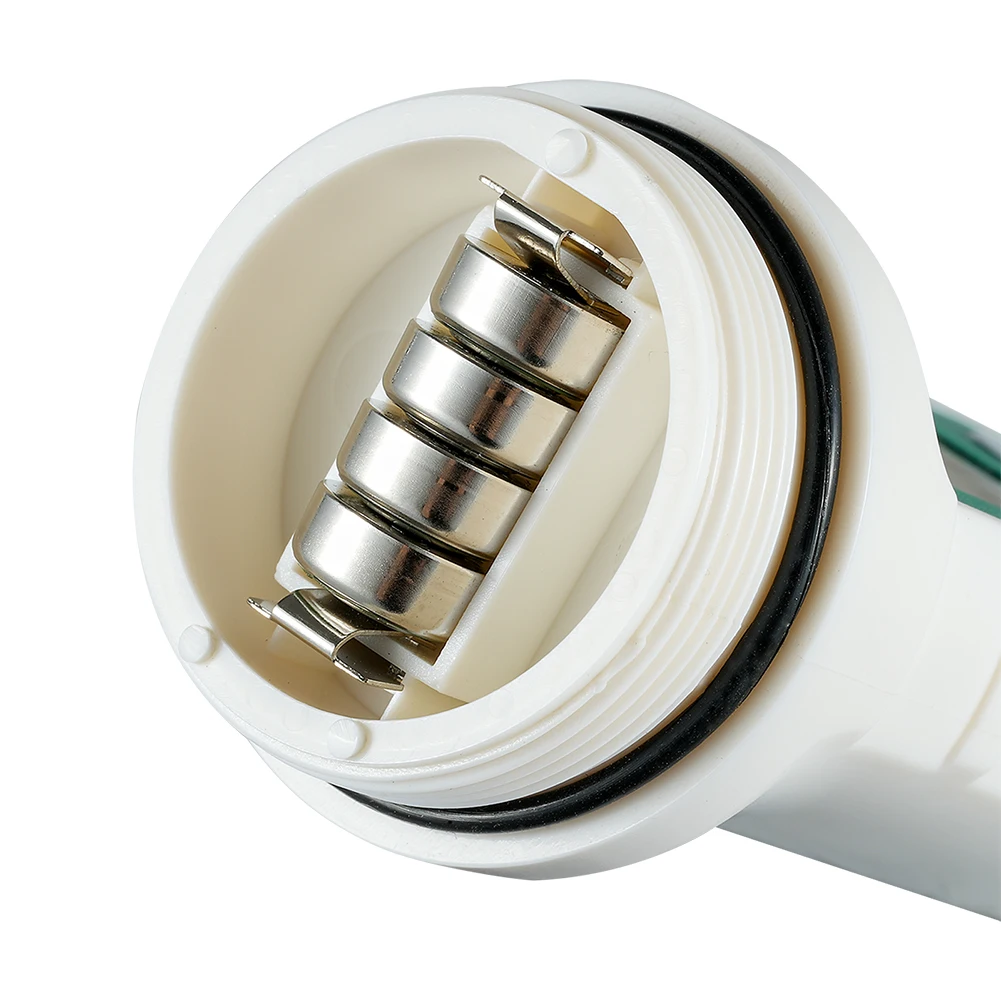

13.Battery: 4*1.5V (LR44) not included; low battery indicator
14.Bluetooth: Mobile bluetooth 5.2 Version
15.Backlights: With backlights, support mobile control
16.Data: Save as Excel sheet/Support printing
17.Data storage: Can store the latest 1000 records of data
18.Standby time: Around 50 days (turn on bluetooth) 2 years (turn off bluetooth)

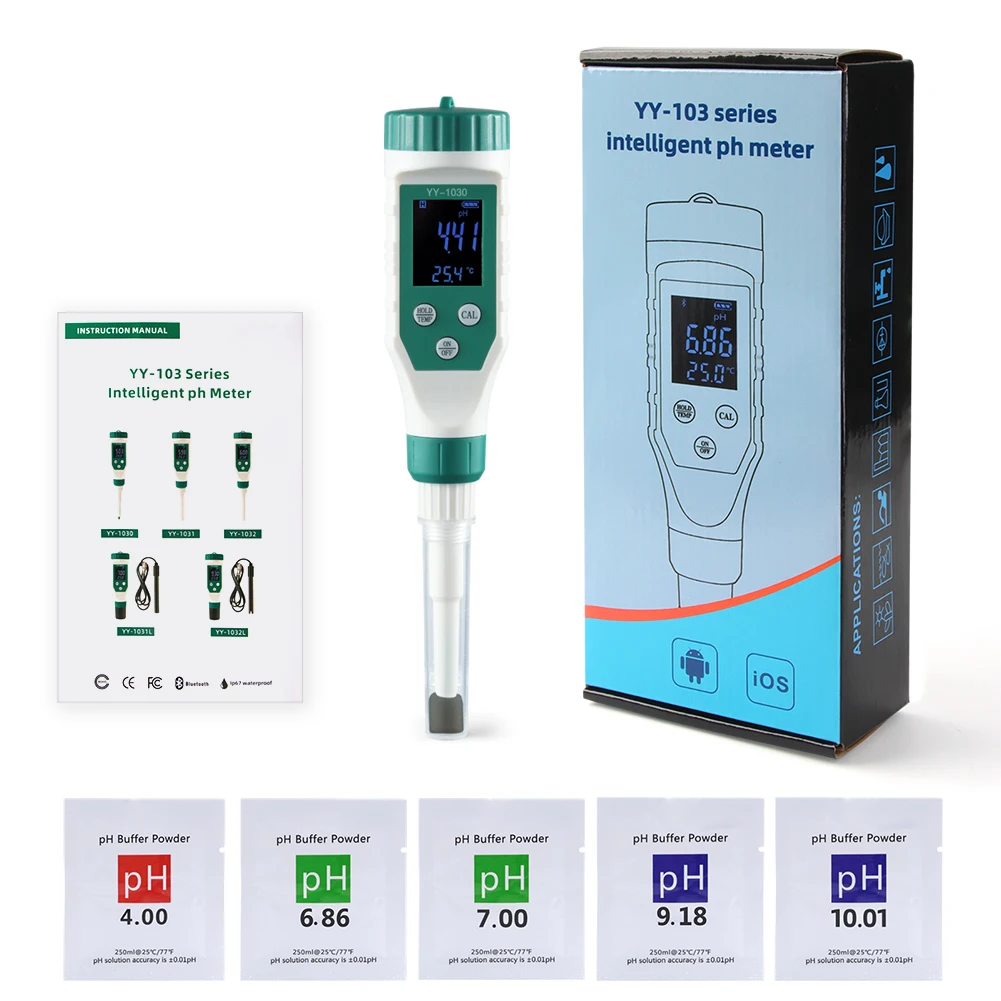

19.Packing list: 1*Bluetooth PH tester; 5 packs of PH calibration powder (4.0, 6.86, 9.18, 7.0, 10.01); 1*English manual

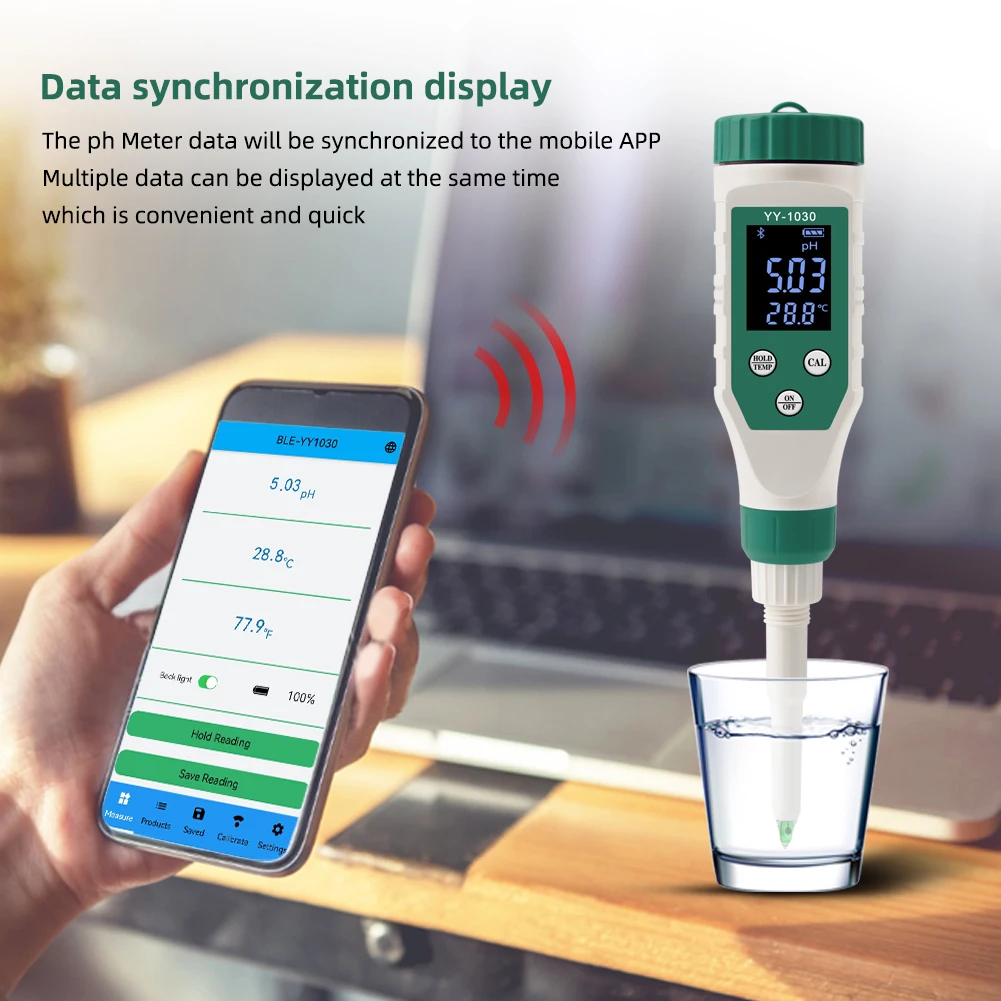

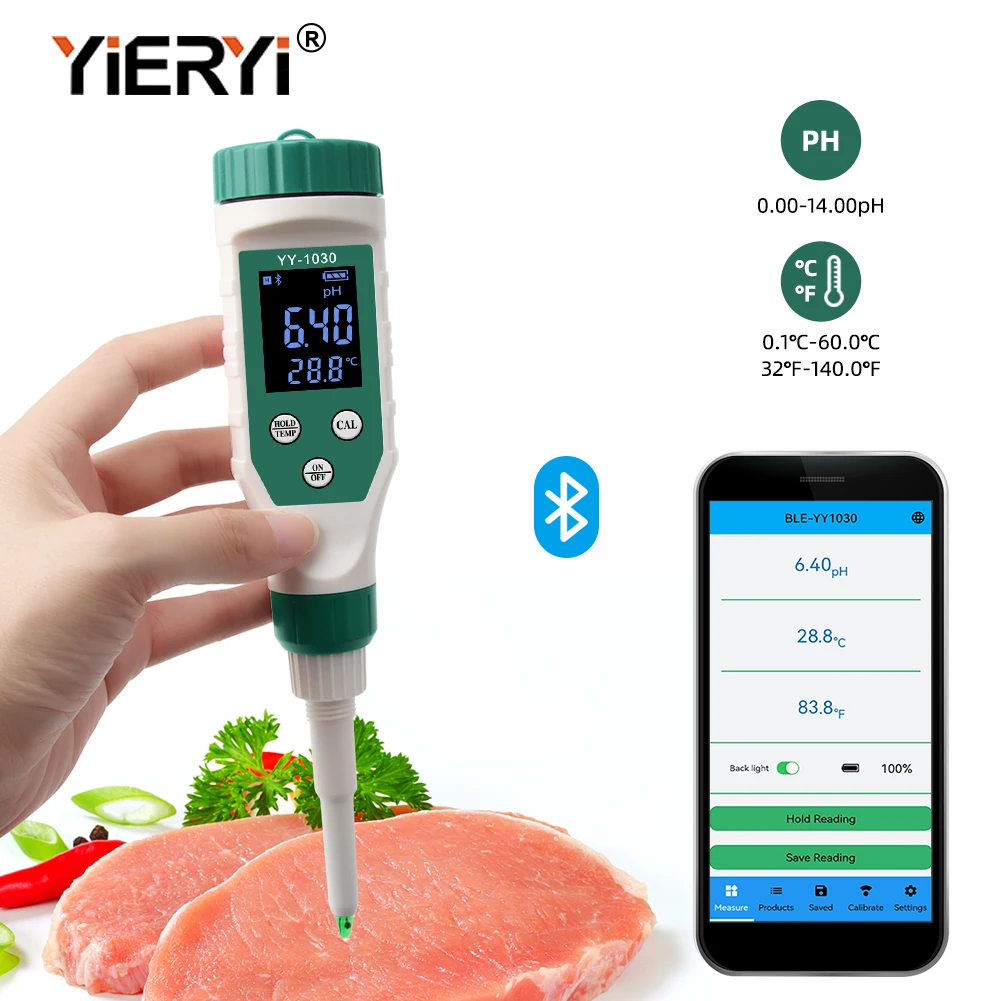

Data synchronization display :
The PH meter data will be synchronized to the APP, which can display multiple data at the same time, which is convenient and fast

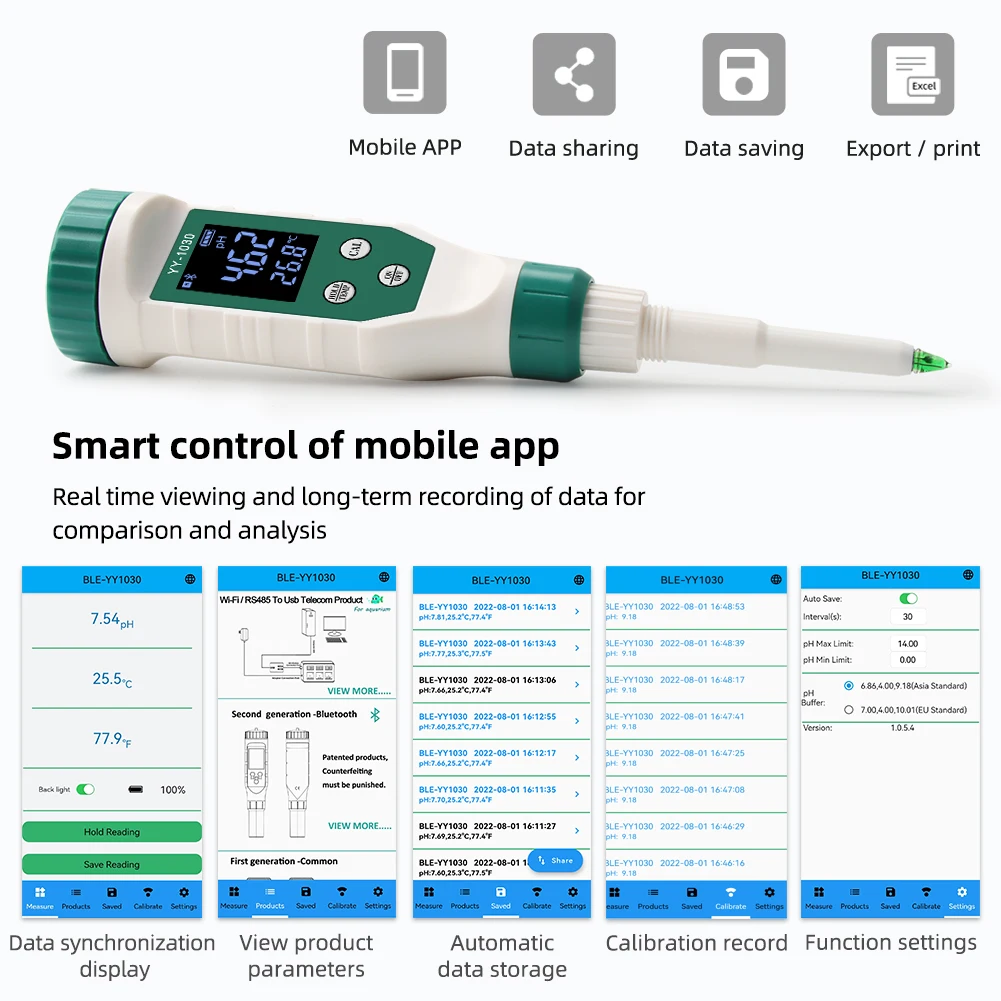

Mobile APP intelligent control :
Real-time viewing, long-term data recording, easy comparison and analysis

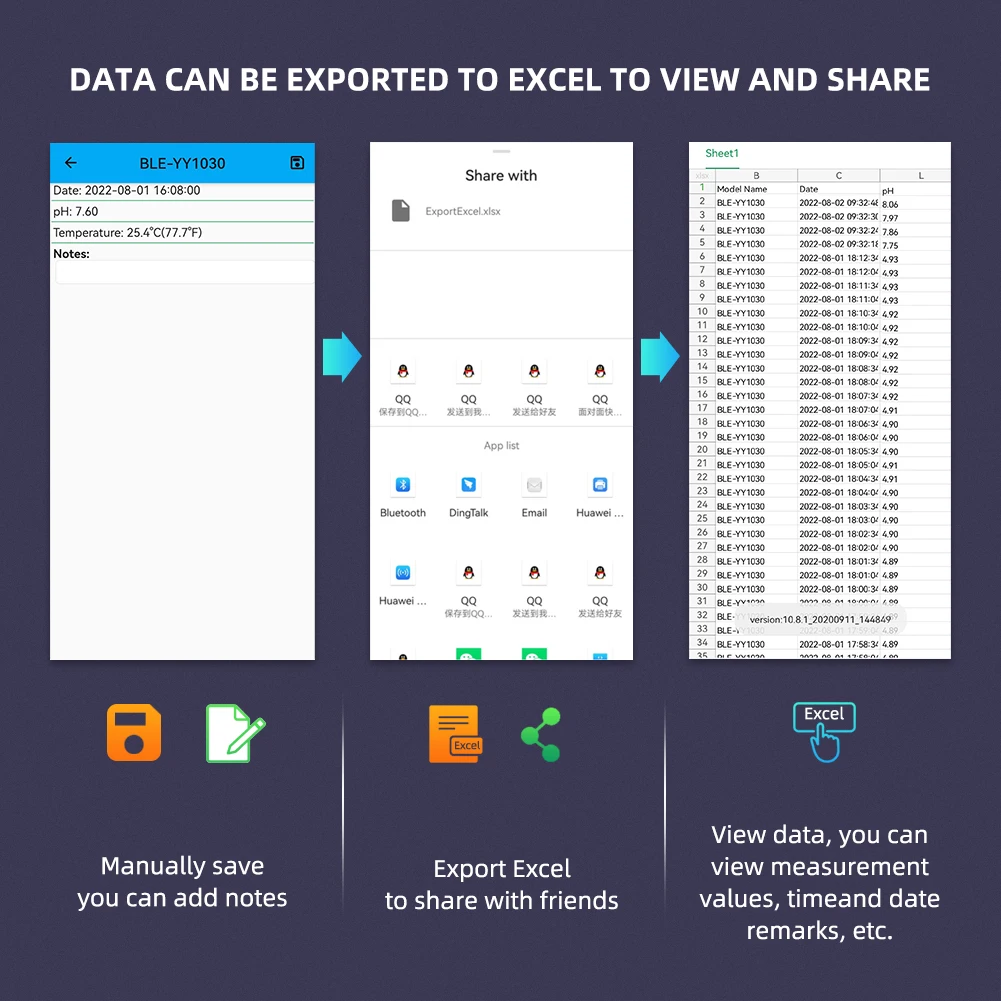

Automatic and manual storage/data can be exported to Excel for viewing and sharing :
The automatic saving time can be set, and the automatic saving time interval can be set to 30-9999 seconds.

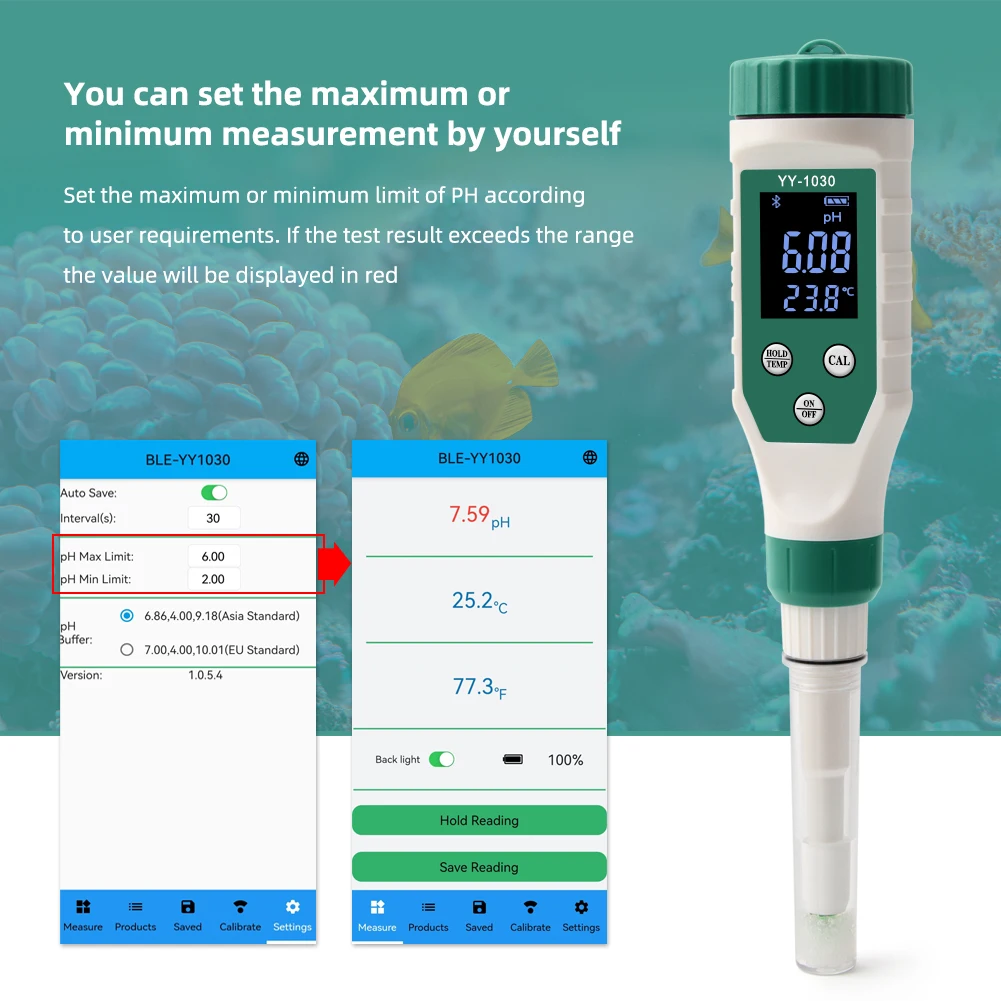

You can set the maximum or minimum value of the measurement by yourself :
Set the maximum or minimum pH limit according to the user’s requirements. If the test result is out of range, the value will be displayed in red.
OPERATION :
APP downtoad :
(IOS)(Android)”IOS system: Open the APP store that comes with your iPhone, search for YINMIK and download it; or scan the QR code with Google Chrome to download the App.
*Android system: Scan the QR code with Google Chrome to download the APP.”
Notes:
1. When the meter is connected to the APP, it needs to locate the mobile phone to connect successfully.
2. The APP is updated frequently. After the update, the old version may nat be connected or used. Just uninstall the old APP and download the new version connect the meter to the new version of the APP again.
Bluetooth Connection :
1.Press the “ON/OFF” button for 3-5 seconds to turn on the Bluetooth of the meter.After the Bluetooth is turned on, the screen will display the Bluetooth icon
2.Turn on the mobile phone location function, otherwise the connection will fail.
3.Turn on the Bluetooth of the mobile phone andsearch for the model of the meter click connect when the model of the meter appears.
4.Open the “YINMIK” APP, the APP will automatically match the model of the meter.When the APP page displays the meter model, indicating that the meter is successfully connected to the APP.
Bluetooth Connection :
1.Press the “ON/OFF” button for 3-5 seconds to turn on the Bluetooth of the meter.After the Bluetooth is turned on, the screen will display the Bluetooth icon
2.Turn on the mobile phone location function, otherwise the connection will fail.
3.Turn on the Bluetooth of the mobile phone andsearch for the model of the meter click connect when the model of the meter appears.
4.Open the “YINMIK” APP, the APP will automatically match the model of the meter.When the APP page displays the meter model, indicating that the meter is successfully connected to the APP.
Questions and Answers
Q : Doubts after receiving the product?
A : Factory calibrated for immediate use. When done, rinse the electrodes with purified water. Gently insert a few times to make sure there are no air bubbles around the electrodes. Do not disassemble the instrument without authorization to avoid damage to the instrument. It is normal to generate resistance when the probe encounters 6 during the break. Be careful not to bump or bump the electrode bulb, otherwise it will rupture. A jump of air and value. If the electrode is damaged, the electrode needs to be replaced.
F : Is it possible to calibrate 5 packs of calibration powder (4.0, 6.86, 9.18, 7.0, 10.01) at one time?
A : No, the calibration of the product should be carried out in 2 groups, link the APP of the product, and switch the calibration mode of the product. Calibration mode A can only calibrate 4.0, 6.86 and 9.18; calibration mode B can only calibrate 4.0, 7.0, and 10.01
Service Reminder !
Dear, please note that products generally do not ship batteries, if you need batteries, please contact us and we will check to see if we can replace the channel and send you the channel with the battery. The type of battery is: 4*1.5V (LR44)
