ZEEWEII DSO3D12 Digital Oscilloscope
- ZEEWEII DSO3D12 Digital Oscilloscope
- Display Size: 3.0 – 4.9 Inches
- Digital Channels: 2
- DIY Supplies: ELECTRICAL
- Brand Name: ZEEWEII
- ZEEWEII Model: DSO3D12
- Origin: Mainland China
ZEEWEII DSO3D12 Digital Oscilloscope
- Display Size: 3.0 – 4.9 Inches
- Digital Channels: 2
- DIY Supplies: ELECTRICAL
- Brand Name: ZEEWEII
- ZEEWEII Model: DSO3D12
- Origin: Mainland China

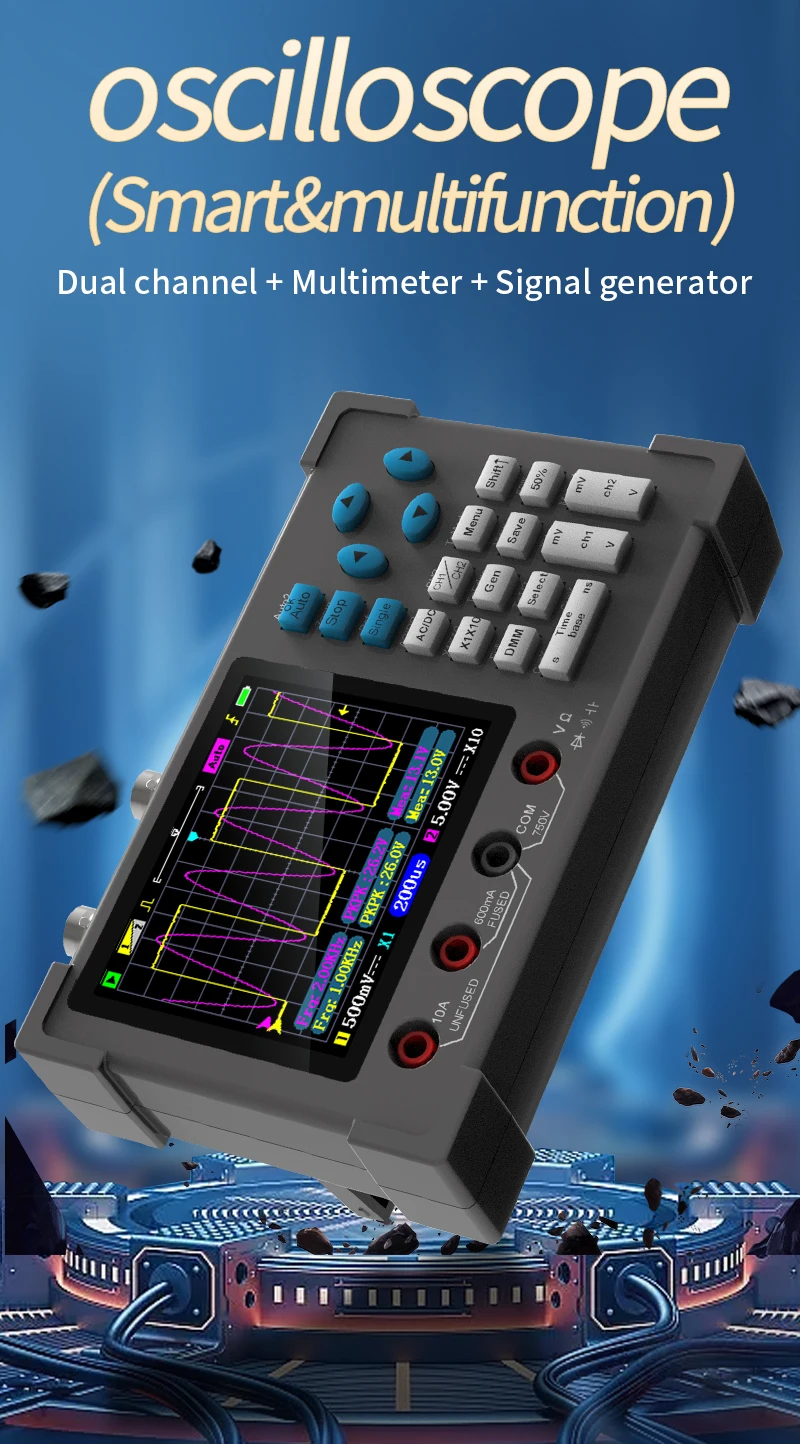

This DSO3D12 120M bandwidth oscilloscope with very low price and excellent performance. like adopt ARM and FPGA chip collocation, also Includes a high-accuracy true RMS multimeter and a 2.5V signal generator. Fully automatic measurement mode is supported.Come on and try it, it will not let you down.
Features:
Adopts ARM and FPGA chip collocation, provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions.
Wide applications: can be used for such as sin-gle-chip debugging, car maintenance, home appliance maintenance,DIY debugging, electronic competition, power supplys debugging, frequency converter and so on.

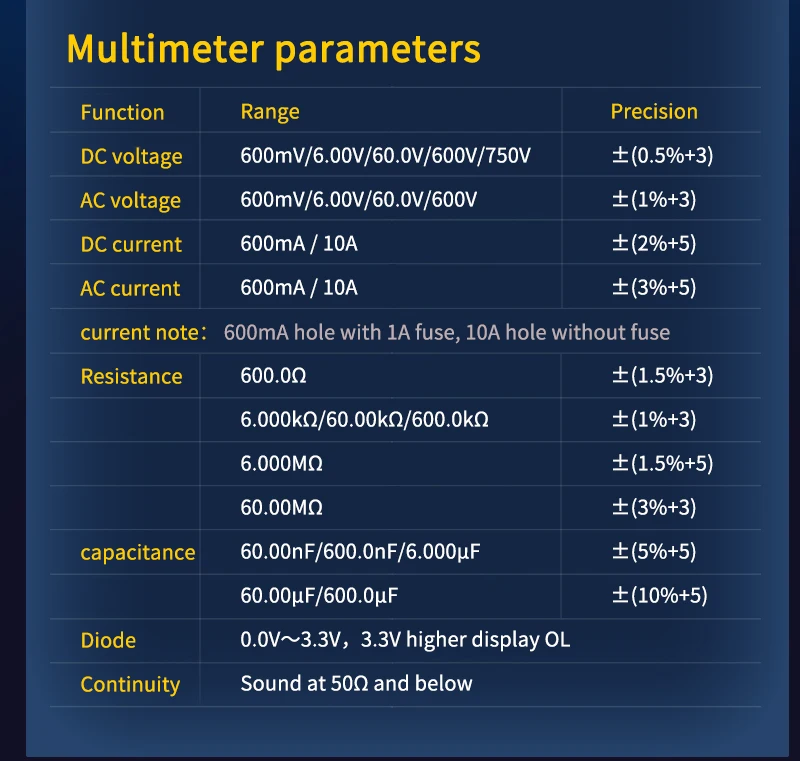

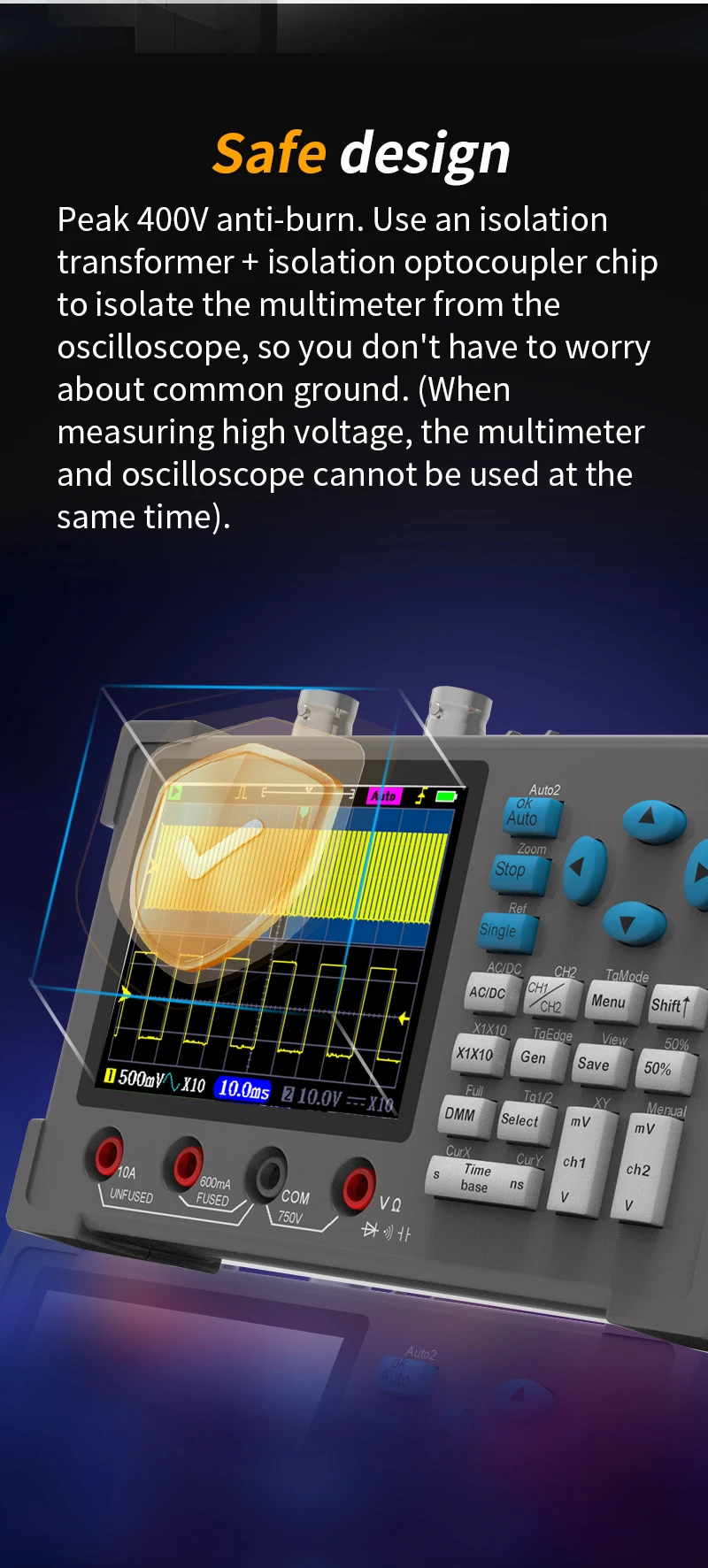

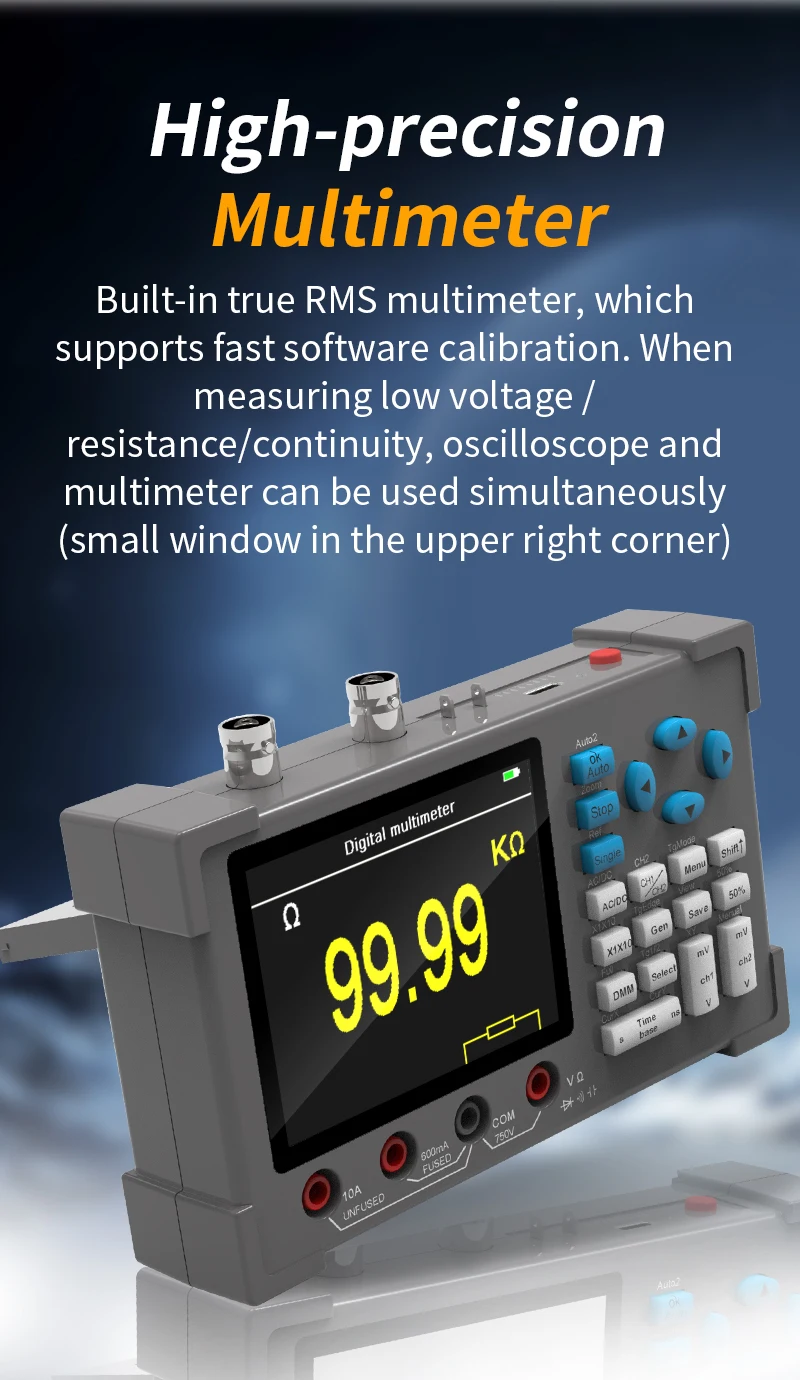

Built-in high-precision multimeter, support voltage/current/resistance/diode/continuous/capacitor. The multimeter is isolated from the oscilloscope.The accuracy is high and it is also supported for fast calibration.

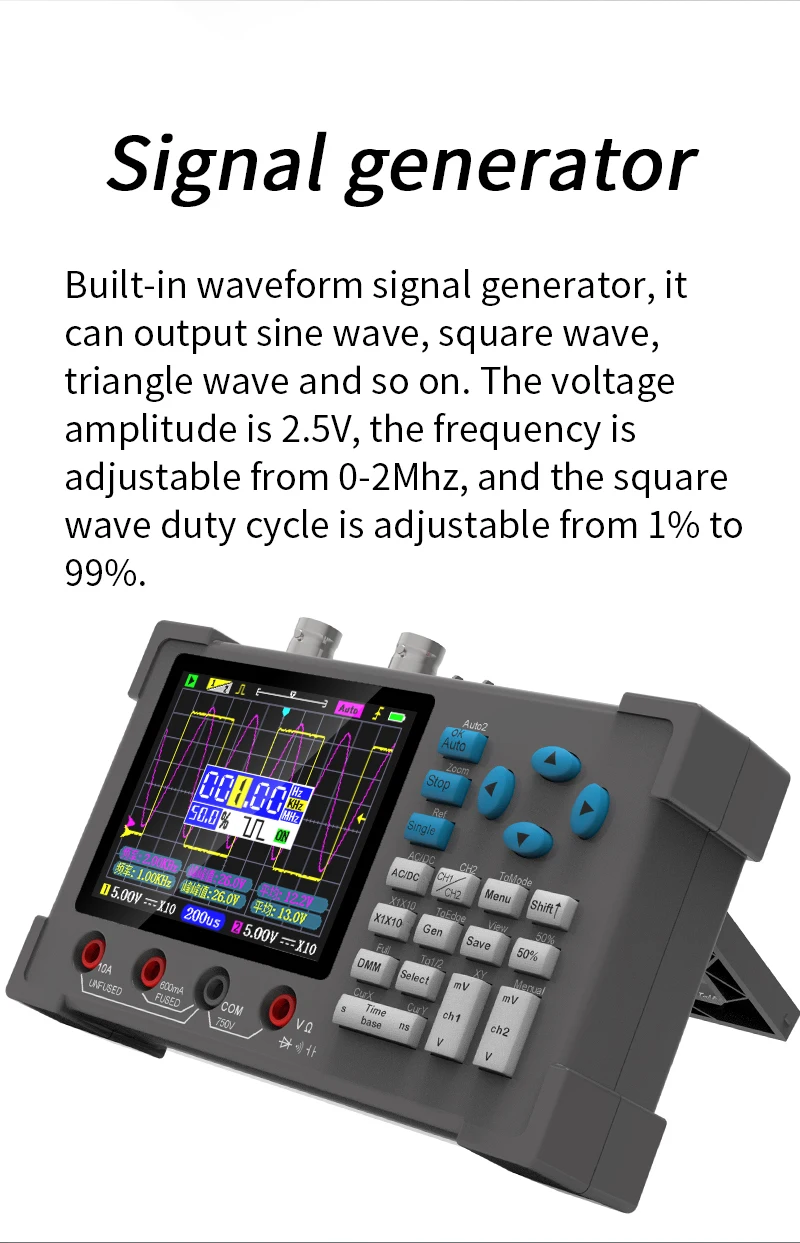

The bottom of the oscilloscope can output a variety of waveforms of 2.5V amplitude such as sine waves, square waves, trian-gle waves, half waves, singh waves, which the frequency adjustment ranges is 0~2MHz.

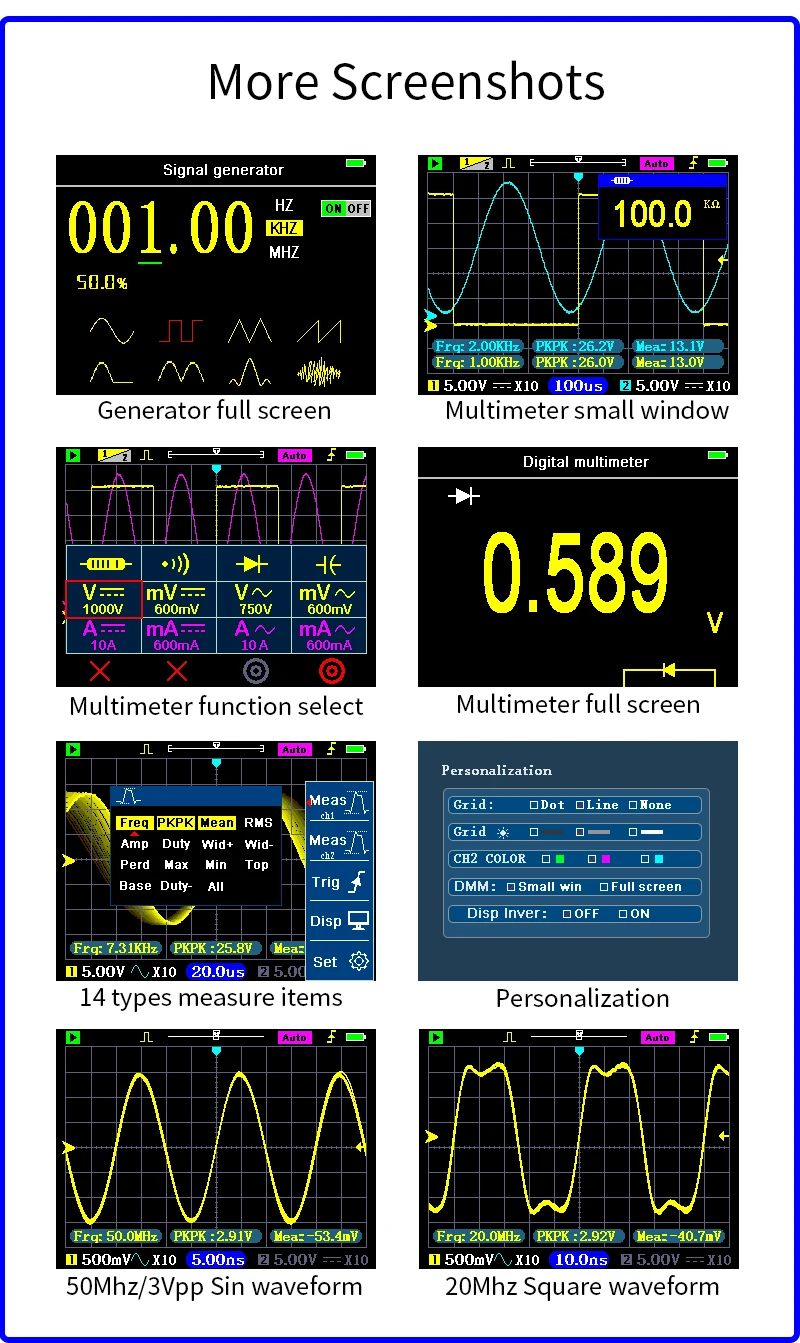

There are 14 measurement options available: Frequency, P-eak to P-eak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.

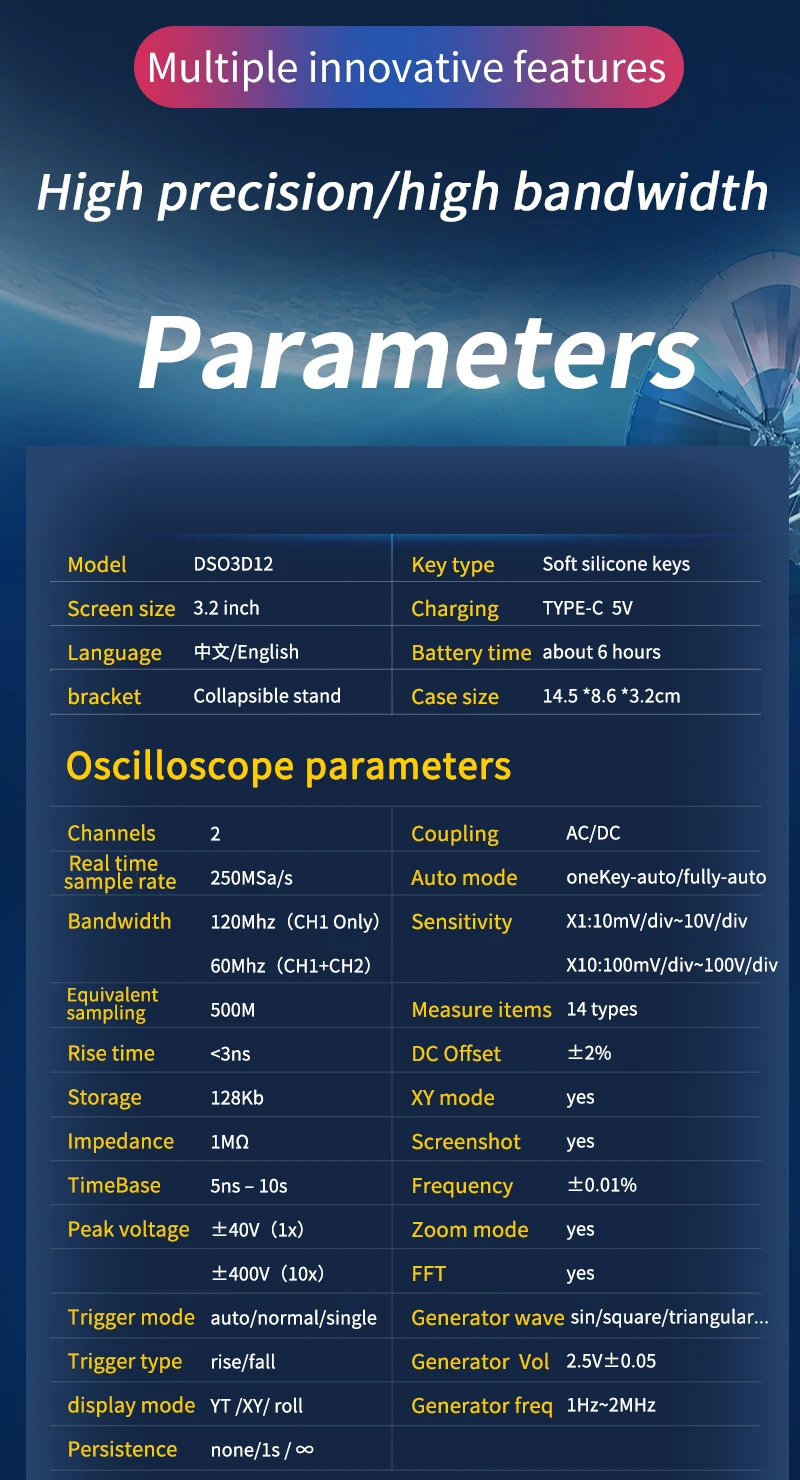

Specifications:
- Material: ABS

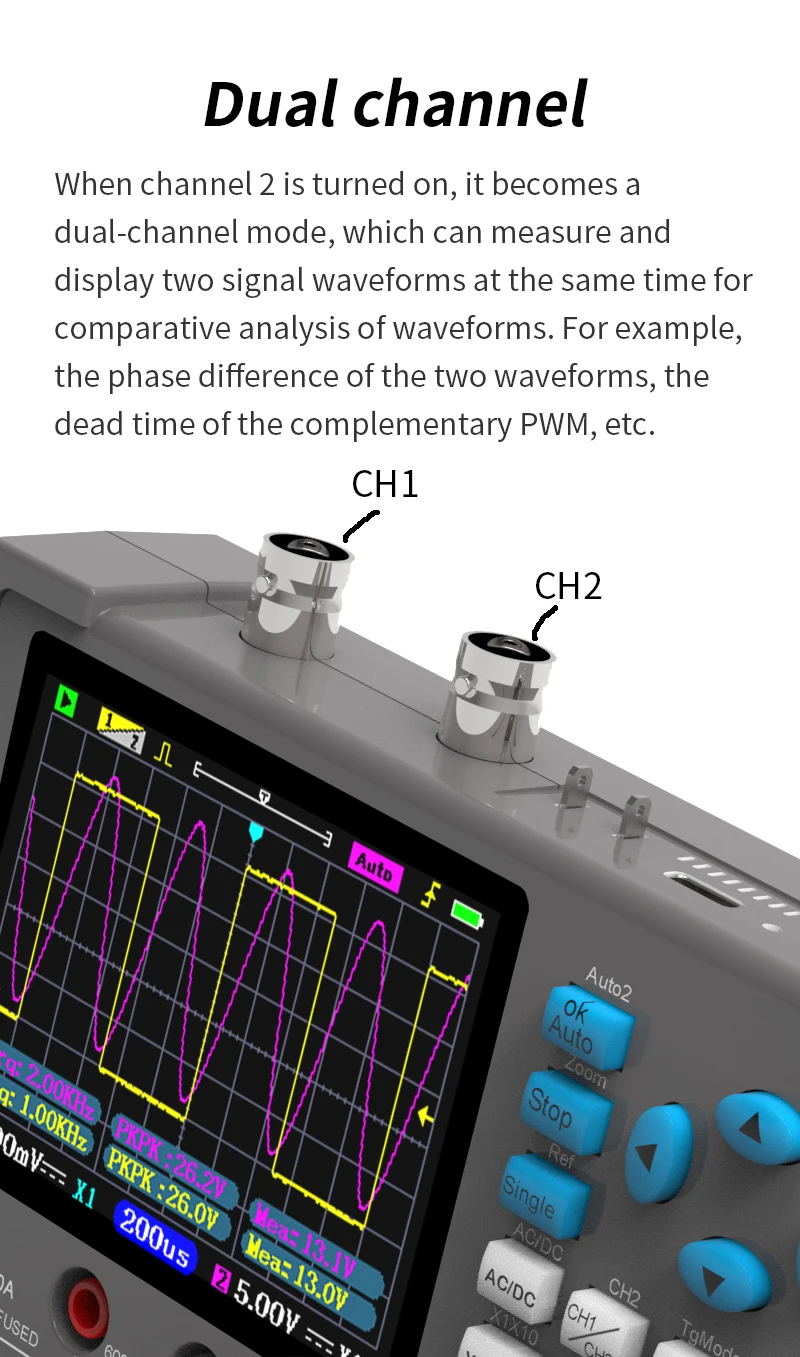

- Channels: 2
- Coupling: AC/DC

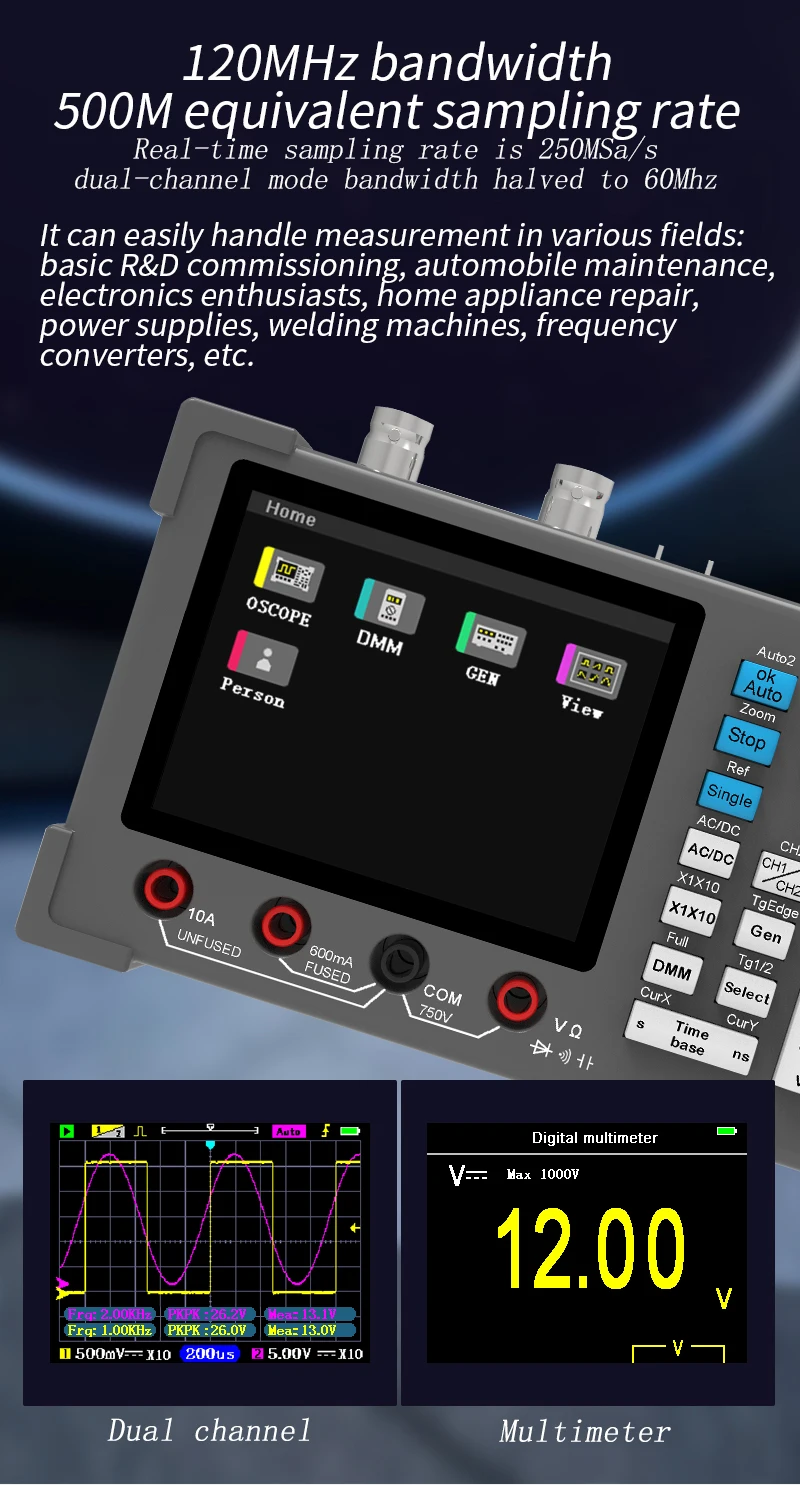

- Bandwidth 120M(ch1 only),dual channel mode is 60M.
- Multimeter：voltage/current/resistance/diode/continuous/capacitor.

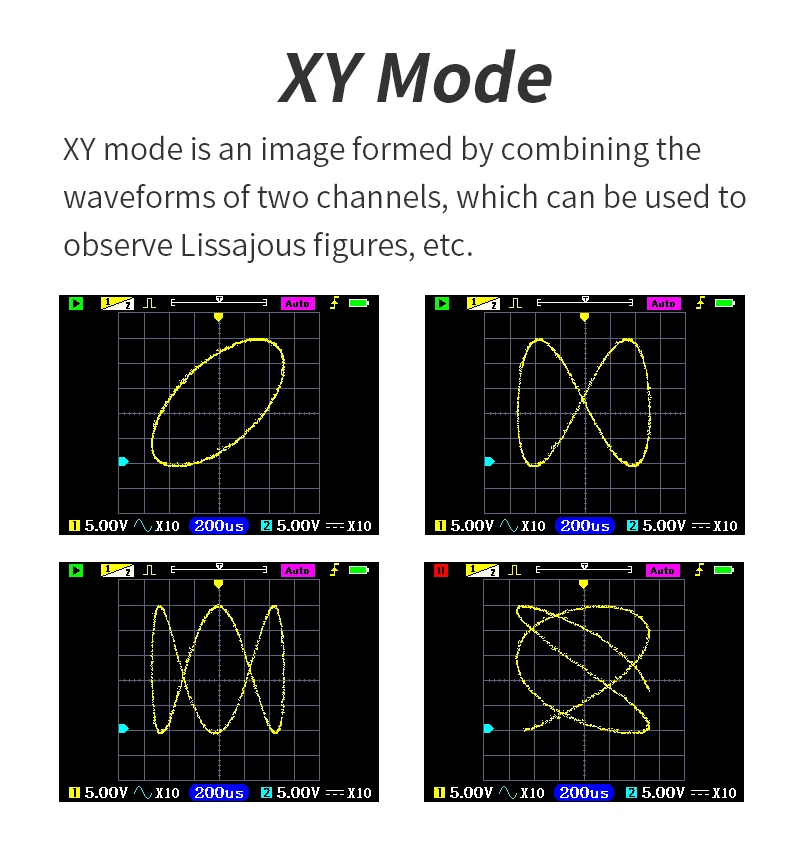

- XY mode: support
- Equivalent sample rate: 500M(algorithm)
- Real-time sample rate: 250M

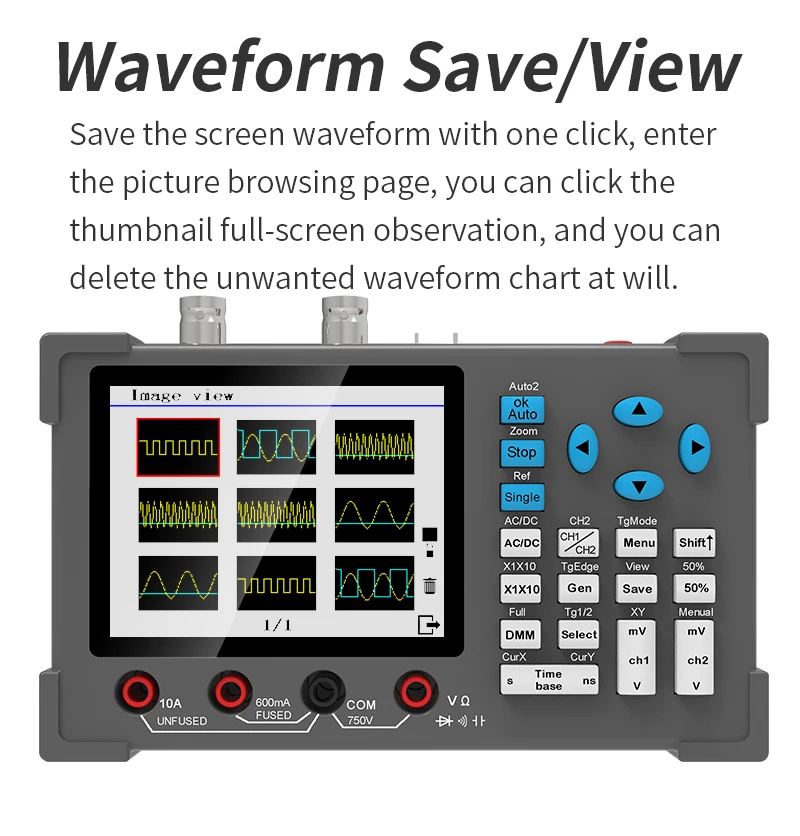

- Screenshot: support
- Rise time: <3ns
- Frequency: ±0.01%
- Single trigger: support
- Impedance: 1MΩ

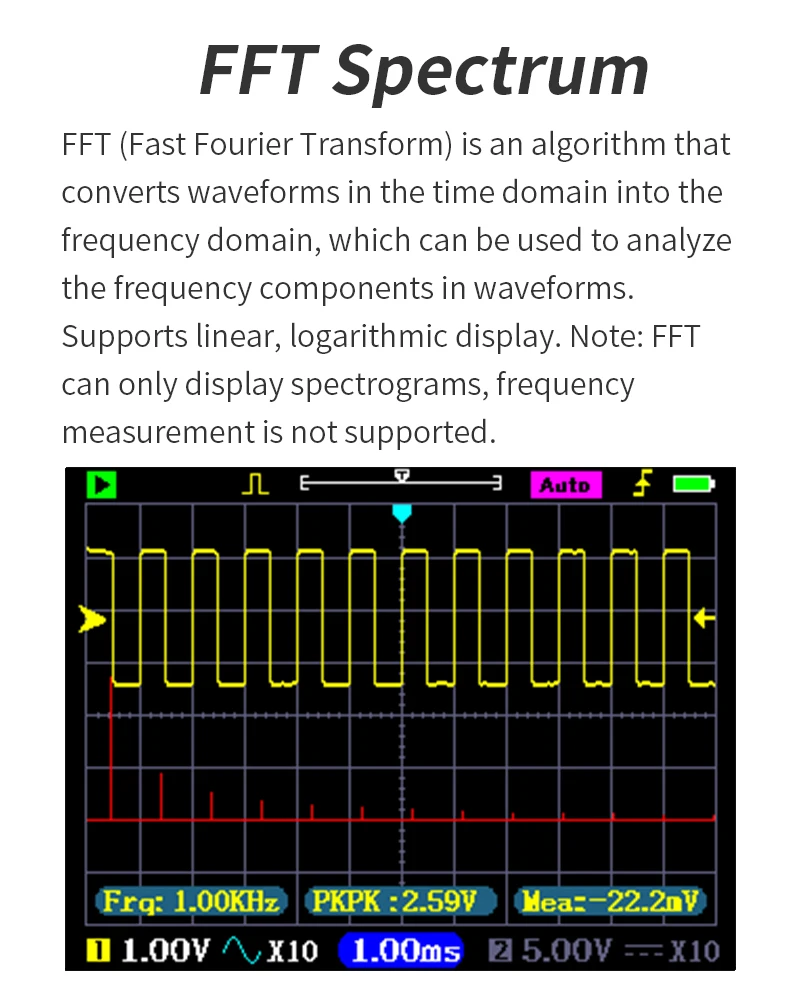

- FFT: support
- Fully-Auto: support
- Time base: 5ns~10s
- Wa-ve out amp: 2.5V
- Ver sensitivity: 10mV/div~10V/div(X1)
- Waves out freq: 0-2MHz
- Max voltage ±40V(x1), ±400V(x10)
- Trigger type: rise/fall
- Display mode: YT/Roll
- Persistence: None/1s /∞
ZEEWEII DSO3D12 product manual:
