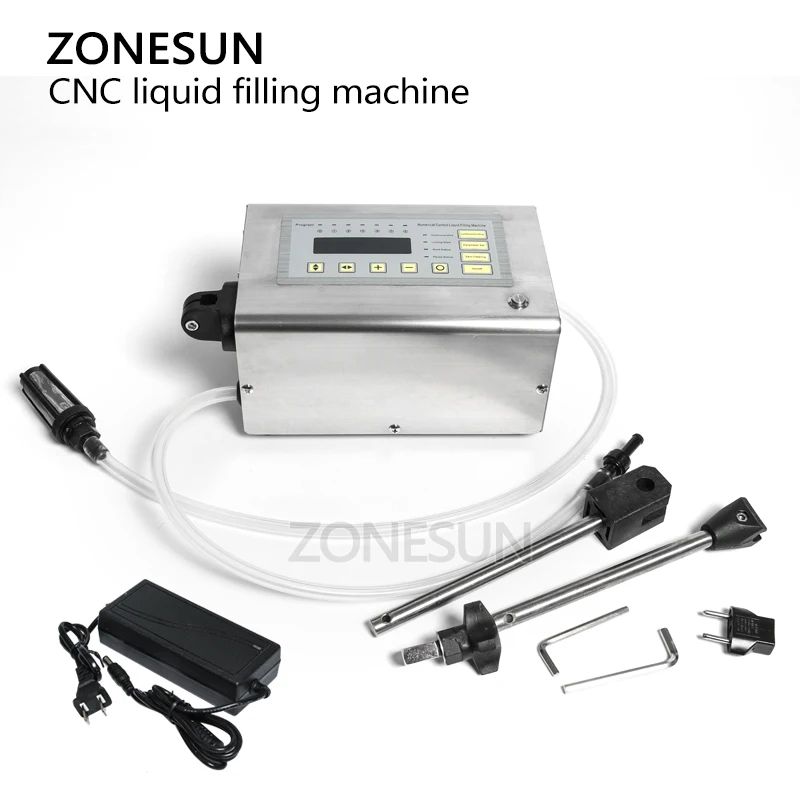

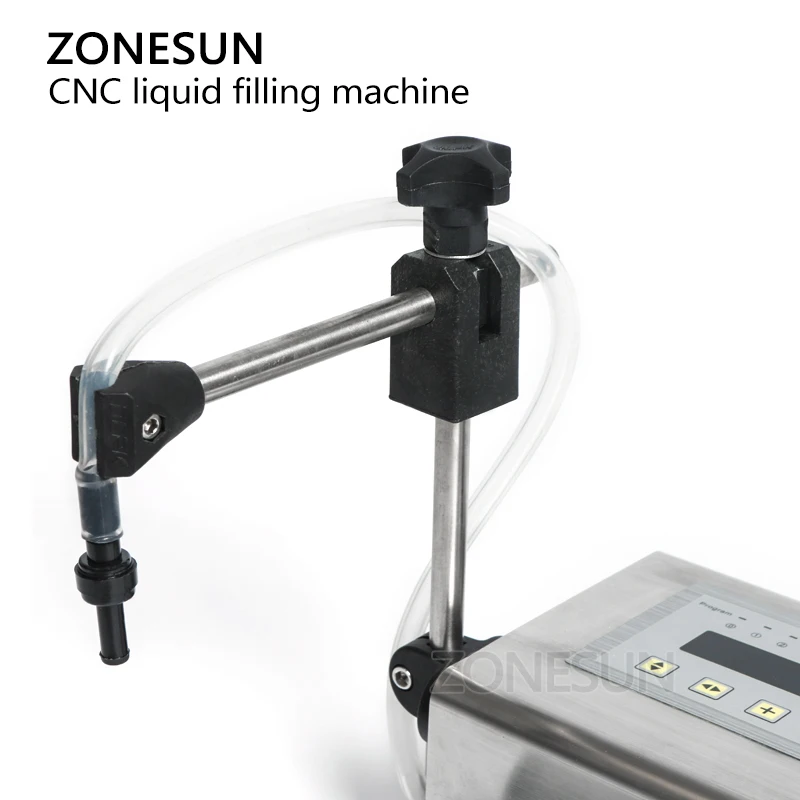

ZONESUN GFK-180 Electrical Liquid Filling Machine

• Voltage:110V, 220V
• Power:30W
• Max Flow Rate:3.2L/min
• Max Suck Distance:2m
• Repeat Error:<0.5
• Machine Weight:2.7kg / 12.1Lbs
• Filling Volume Range:5ml-3500ml
• Anti-dripping Function:Available
• Memory Function without Electricity:Available
• Machine Size:220 X 150 X 100(mm)
• Diameter of Filling Nozzle:Phi 8mm
• Suitable Soft Tube:17#(interior diameter: 6.4mm, thickness: 1.6mm, max pressure0.24Mp)
• Note:Different liquid needs to choose different material of tube. The tube provided by us is silicone tube.

This Updated GFK series numerical control liquid filling machine uses micro-computer to control the mini-pump on filling time and the rotation rate of electric motor so that the machine can fill the liquid fluently and at high accuracy. Separated with the electric motor,the pump is made of a variety of anti-corrosion imported material. There is no mechanical metal part or abrasion inside the pump.

This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean. The machine has a self-prime pump that can suck in the liquid from your container and then output via the nozzle. It can be used to fill many different types of clear thin liquid,including water, olive oil, fuel, drinks, vinegar, milk etc.

Liquid suitable: low viscous liquid like water, wine, solutions etc.

Liquid unsuitable: very thick liquid (sauce,detergent etc), or liquid containing small particles.

Features

1. Automatic counting function, effectively control filling quantity
2. Import single-chip microcomputer control, high efficiency, low power consumption
3. LCD display, touch screen is very easy to operate
4. Filling Accuracy is high, precise volume
5. Wide Voltage range
6. Working performance is stable and can be used for long time
7. Self-suck function, don’t need to pour
8. The pump can stand acid and alkali
9. Anti-dripping design
10. Reasonable design, made of stainless steel, meet GMP requirement
11. Speed Parameter Range: 1-9, Filling Time Range: 0.01-99.99s, Interval time Range: 0.01-99.99s
12. Save up to 6 sets of parameters for different-sized bottles and can choose from easily
13. Widely used in medical, chemistry, food, beverage, oil, and cosmetics, etc.
14. Suitable for filling low-viscous liquid without pellets
15. The pump can stand oil, heat, acid, alkali, abrasion and chemical products
16. Integrates the advantage of self-suck pump and chemical pump
17. Self suck, heat protect, stable working and continuous idle or load operate for long time

Characteristics

1.Imported single-chip control,high efficiency,low power consumption

2.Automatic counting,control the filling quantity effectively.

3.LCD display,touch screen panel is easy to operate.

4.Filling Accuracy is high,precise volume.

5.Wide voltage use range.

6.Product working performance is stable,long use life.

7.Self-suck function,don’t need to pour.

8.Pump can stand the acid and alkali.

9.Anti-dripping design

10.Reasonable construction design,stanless steel shelf,meed GMP requirement.

Technical Parameter

Packing List

standard set
