ZONESUN ZS-DTPP100C4 Small Production Line Liquid Filling Machine
- Filling Accuracy: 99.5%
- Filling Speed: 20-50 bottles/min
- Model Number: ZS-DTPP100C4
- Brand Name: ZONESUN
- Origin: Mainland China
- Certification: CE

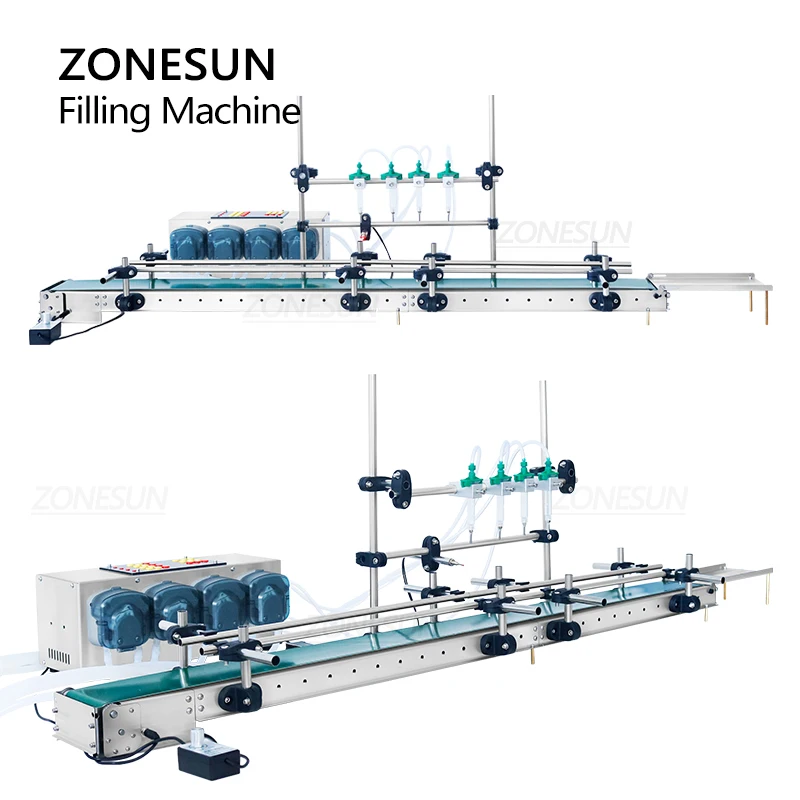

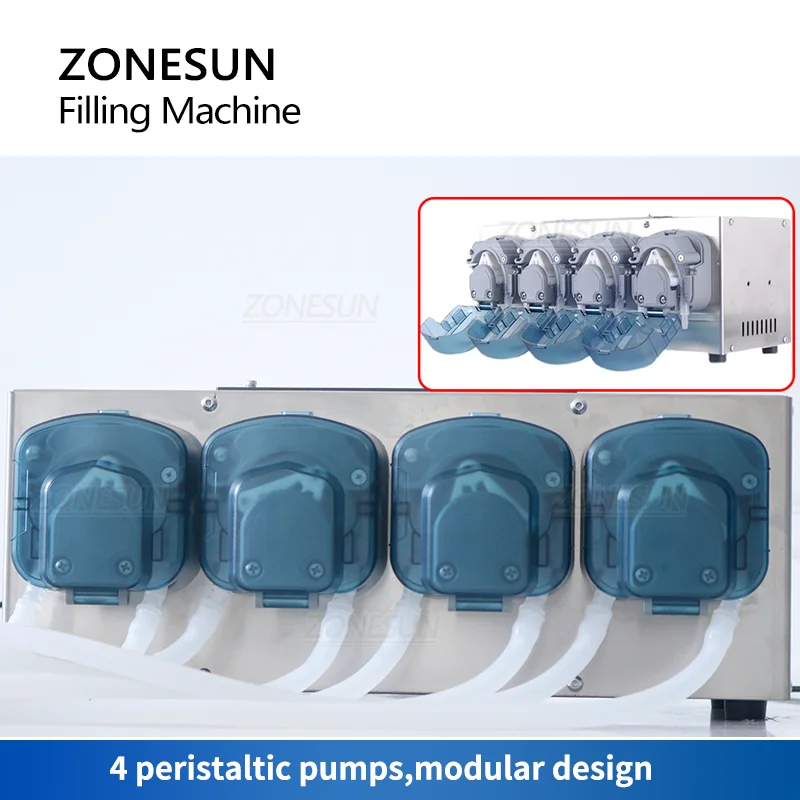

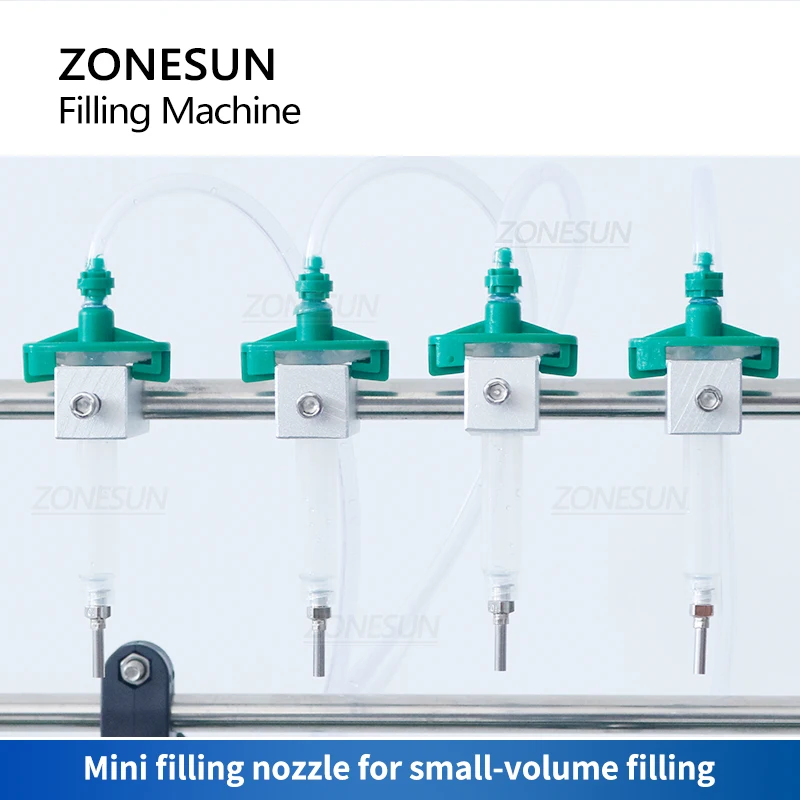

This is a small production line for filling liquid. It adopts a modular design with 4 peristaltic pumps. It’s suitable for small-volume filling. The height of the filling nozzles can be adjusted according to the bottles’ height.
2. PARAMETER
|
Machine Model |
ZS-DTPP100C4 |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
75W*4 |
|
Machine Pump |
Peristaltic Pump |
|
Recommended Filling Range |
10-100ml |
|
Max Flow Rate |
700ml/min*4 (based on water) |
|
Filling Speed |
About 50-60 bottles/min (50ml perfume) |
|
Minimum Bottleneck Diameter |
ID 8mm |
|
Filling Nozzle Diameter |
OD 3.3mm |
|
Suitable Liquid Temperature |
Max 100℃ |
|
Size of Collecting Tray |
210mm*100mm (L*W) |
|
Liquid Inlet Pipe |
7mm (ID)*10mm (OD) |
|
Pipe in the pump |
4.8mm (ID)*8mm (OD) |
|
Conveyor Size |
1200mm (L)* 100mm (W) |
|
Max Load of the Conveyor |
6kg |
|
Package Size |
51*34*21cm (Machine), 67*17*20 (Conveyor) |
|
Package Weight |
5.6kg (Machine), 5.2kg (Conveyor) |
