ZONESUN ZS-GFK160 Liquid Filling Machine
- Filling Accuracy: 99%
- Filling Speed: 1.2-3.1L/min
- Model Number: ZS-GFK160
- Brand Name: ZONESUN
- Origin: Mainland China
- Certification: CE
- Condition: New
- Packaging: Type: Cartons
- Packaging Material: Paper
- Dimension(L*W*H): 40*38*20MM
- Filling Range: 5ml-3500ml
- Max Flow Rate: 3.1L/min
After receiving the product, the user must discharge the air in the hose so it can operate properly.
DESCRIPTION

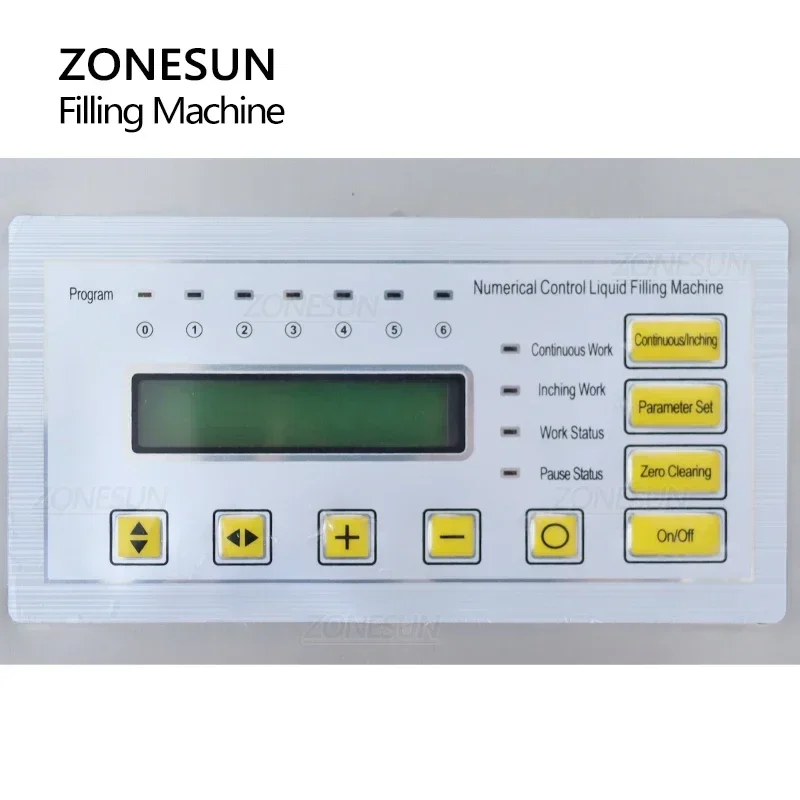

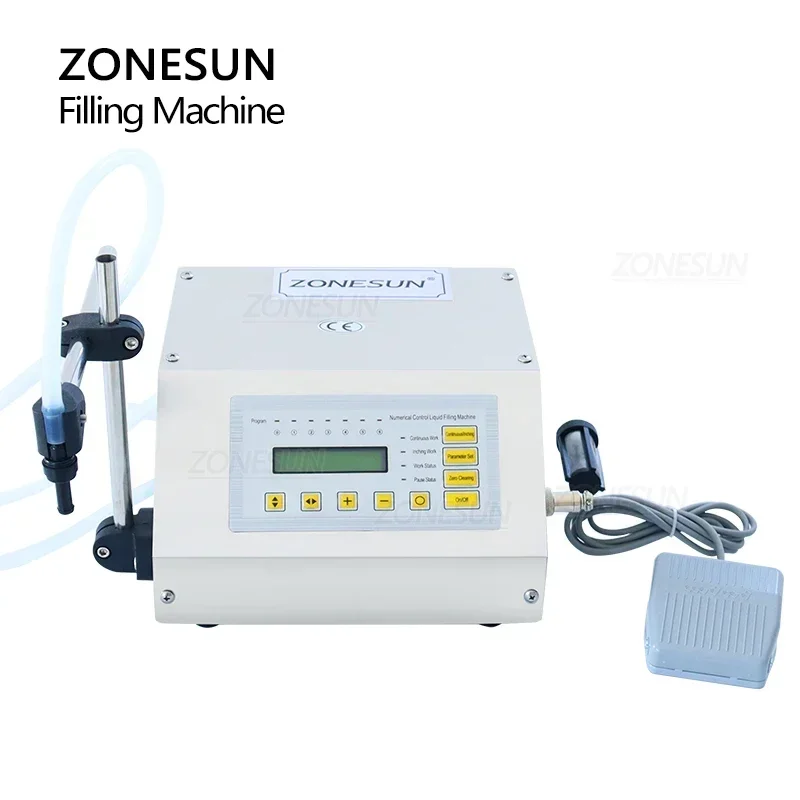

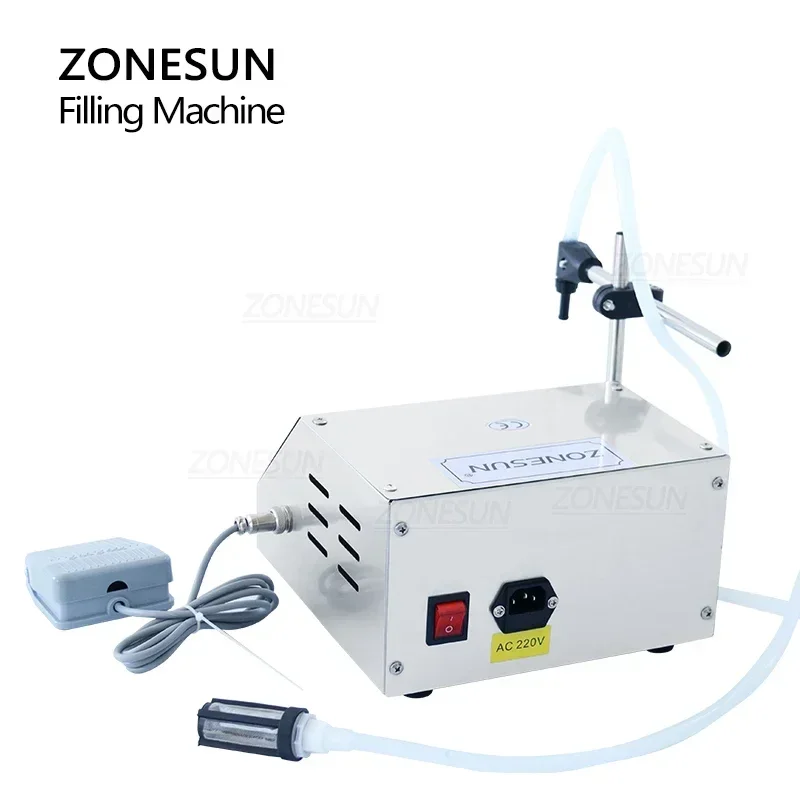

1. This numerical control liquid filling machine is compact and portable. The casing is made of stainless steel, making it durable and easy to clean. The machine has a self-prime pump. It can fill many types of thin liquid, including water, olive oil, fuel, drinks, vinegar, milk, etc.
2. Suitable liquid: low viscous liquid like water, wine, solutions, etc.
Unsuitable liquid: very thick liquid (sauce, detergent, etc), or liquid containing small particles.
Buy-this-product-on-Aliexpress
PARAMETER
|
ZS-GFK160 |
|
|
Voltage Power |
AC 220V,110V 50/60Hz 40W |
|
Recommended Filling Range |
≤500ml |
|
Max Flow Rate |
3.1L/min (water) |
|
Diameter of Filling Nozzle |
Φ 8mm |
|
2m |
|
|
Margin of Error |
±≤0.5% |
|
Anti-dripping Function |
Available |
|
Memory Function Without Electricity |
Available |
|
Suitable Soft Tube |
17# (interior diameter: 6.4mm, thickness: 1.6mm) |
|
Packing Size |
325*275*180 |
|
Gross Weight |
2.75kg |
2. We will test all of the machines before shipment, so, normally, there is water left in the machine pump and the tube when you receive it.
We have upgraded this machine. The dimension is smaller than the old model. Functions are the same. Please notice that customers from USA and RU may receive the old model as we ship them randomly.
Buy-this-product-on-Aliexpress
Packing List
|
1.Power Cord 1pcs |
6.Screwdriver 1pcs |
|
2. Pedal Switch 1pcs |
7.Inner hexagonal wrench 1pcs |
|
3. Filling Stand 1pcs |
8. Manual Book 1pcs |
|
4. Filter 1pcs |
9. Guarantee Receipt 1pcs |
|
5. Filling Nozzle 1pcs |
10.Quality Certificate 1pcs |
Installation

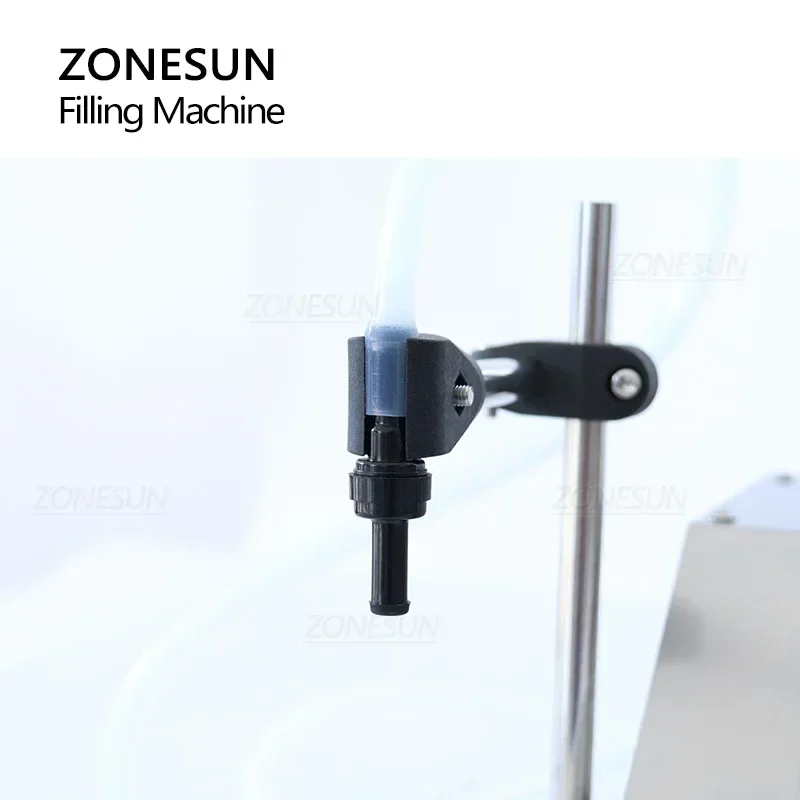

Take the plastic filling nozzle out and install it in the feeding tube. (Notice the triangle head connects the discharge tube). Take out the filling-head stand and install it on the left of the machines. Put the filling head in the clip and tighten it with a socket wrench.

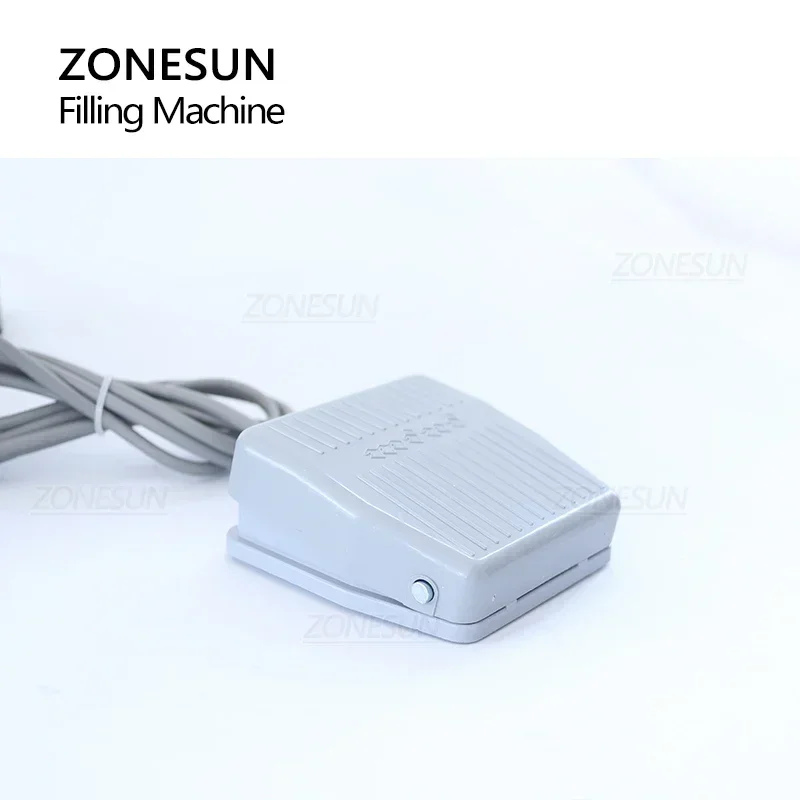

Connect the pedal switch with the machine, and put the tube with filter below the liquid level inside the storage rank. The position of the tank should be lower than the machine. Start to test the machine after all is ready.
