ZONESUN ZS-YTZL500S/ ZS-YTZL500D/ ZS-YTZL500 Liquid Vacuum Filling Machine
- Model Number: ZS-YTZL500S/ ZS-YTZL500D/ ZS-YTZL500
- Brand Name: ZONESUN
- Origin: Mainland China
Parameter
|
Machine model |
|
|
Machine power |
About 50W |
|
Filling range |
About 5-500ml |
|
Filling speed |
20-60 bottles/min (4 nozzles) |
|
Machine air pressure |
0.4-0.8MPa |
|
Applicable bottle height |
<200mm |
|
Applicable bottle mouth diameter |
<22mm |
|
Adjustable liquid surface distance |
About 30mm |
|

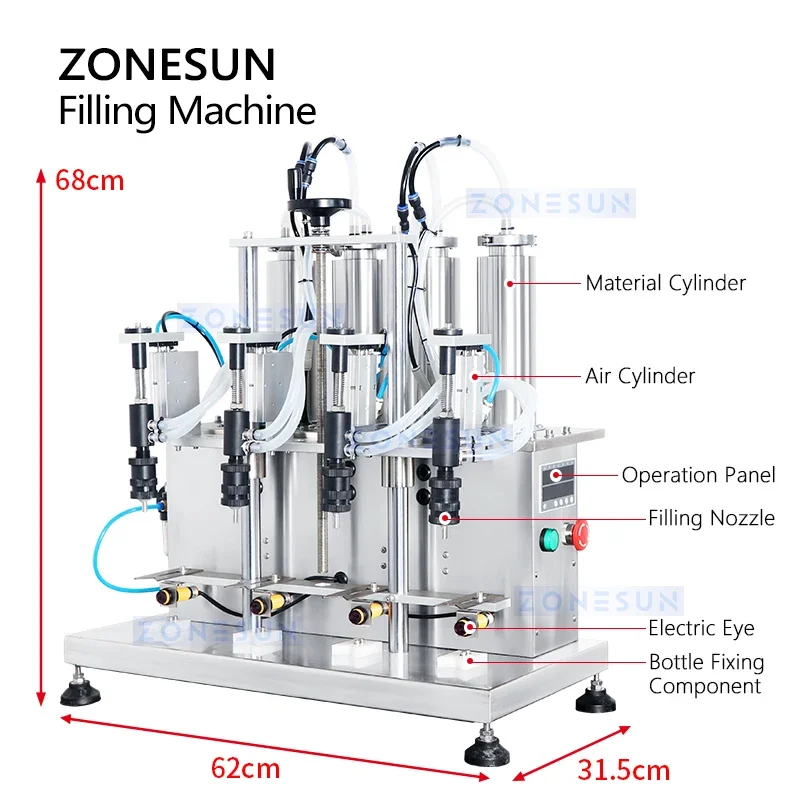

Machine size |
About 620*315*680mm |
|
Machine weight |
33kg |
|
Package size |
680*420*840mm |
|
Package weight |
About 50kg |
*** The machine is required to work with an air compressor, If you don’t have an air compressor yet, please purchase one.
Features

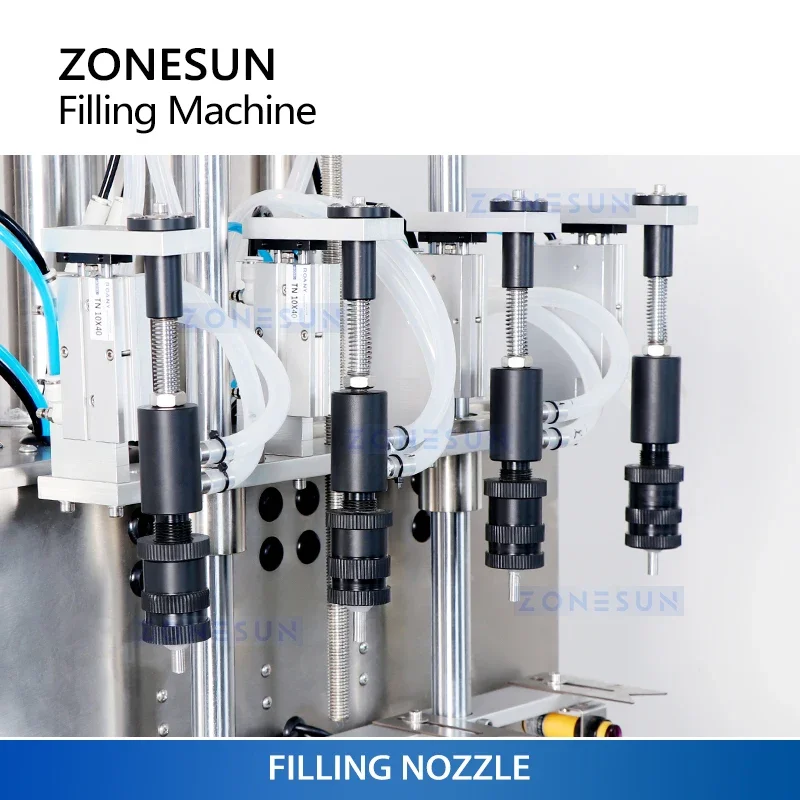

[Vacuum Filling] With 4 pneumatic vacuum filling nozzles, it can fill liquid accurately. The nozzles are with back suction function and liquid level line, enabling it to suck the redundant liquid back, which ensures filling accuracy.
[Adjustable Working Height] The height of nozzles can be adjusted as needed, making it suitable for bottles of different heights. Easy to operate.

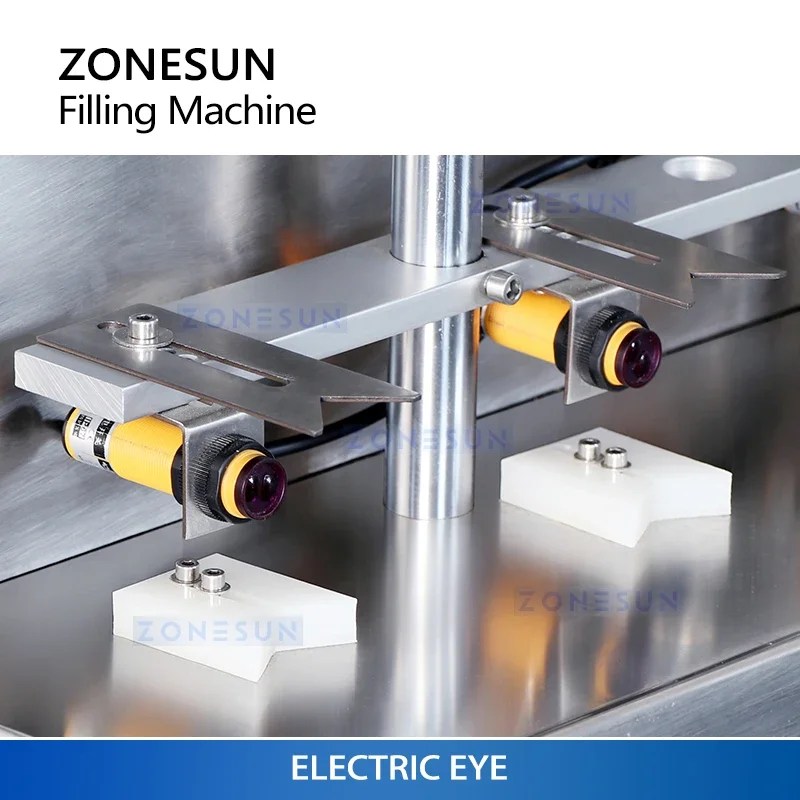

[Intelligent Control System] With electric eye, it will detect bottles and control the machine to work automatically, saving labor cost.
[Positioning Plate] It is with positioning plate, good for placing bottles. Improve work efficiency.
[Wide Application] This machine is suitable for filling low-viscosity liquid, such as perfume, essential oil, beverage, etc.
