ZONGMAI XW-C11605HU Video Digital Microscope

• Hign-concerned Chemical: None
• Magnification Ratio: 500X & Under
• Drawtube: Monocular
• Certification: FCC
• Material: Metal
• Origin: Mainland China
• Model Number: XW-C11605HU
• Brand Name: ZONGMAI
• Theory: Video Microscope
• Features: High Definition,PORTABLE,Digital
• Pixel: 2 million
• Sensor dpi: 1080P@60fps
• Output interface: HDMI / USB
• Input voltage:: 110V-250V
• Working voltage: DC12V/1A
• lens type: C-mount
• Datum line: Reticule alignment
• Video: HD Video Output
• Picture: HD Picture Output
• Measurement: By connecting to a computer
• Magnification: 5X-130X
• working distance: 5cm-40cm

Buy-this-product-on-Aliexpress

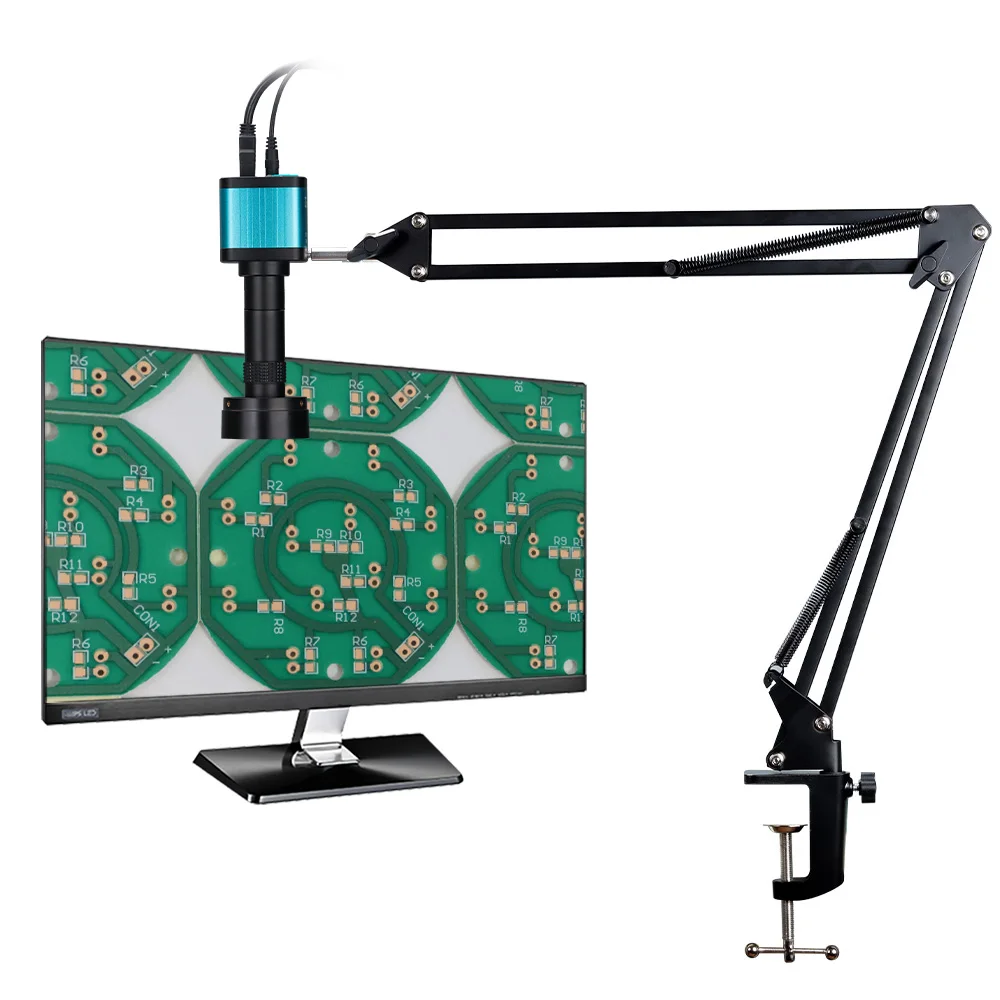

Folding Bracket Microscope

1. Camera with HDMI USB2.0 two output
2. 48 megapixel Panasonic sensor
3. 1920*1080 60F/S @ HDMI output
4. 4K(25fps) 2K(30fps) 1080P(60fps)
720P(60fps)HD Video Output
5. The measurement function is obtained
by connecting the computer
6. Folding bracket, Full metal shell
7. C-Mount lens
8. Magnifications 10-150X
9. Working distance: 50mm-infinity
10. View field of Max multiple : 3.6mm*2mm

New generation upgrade products

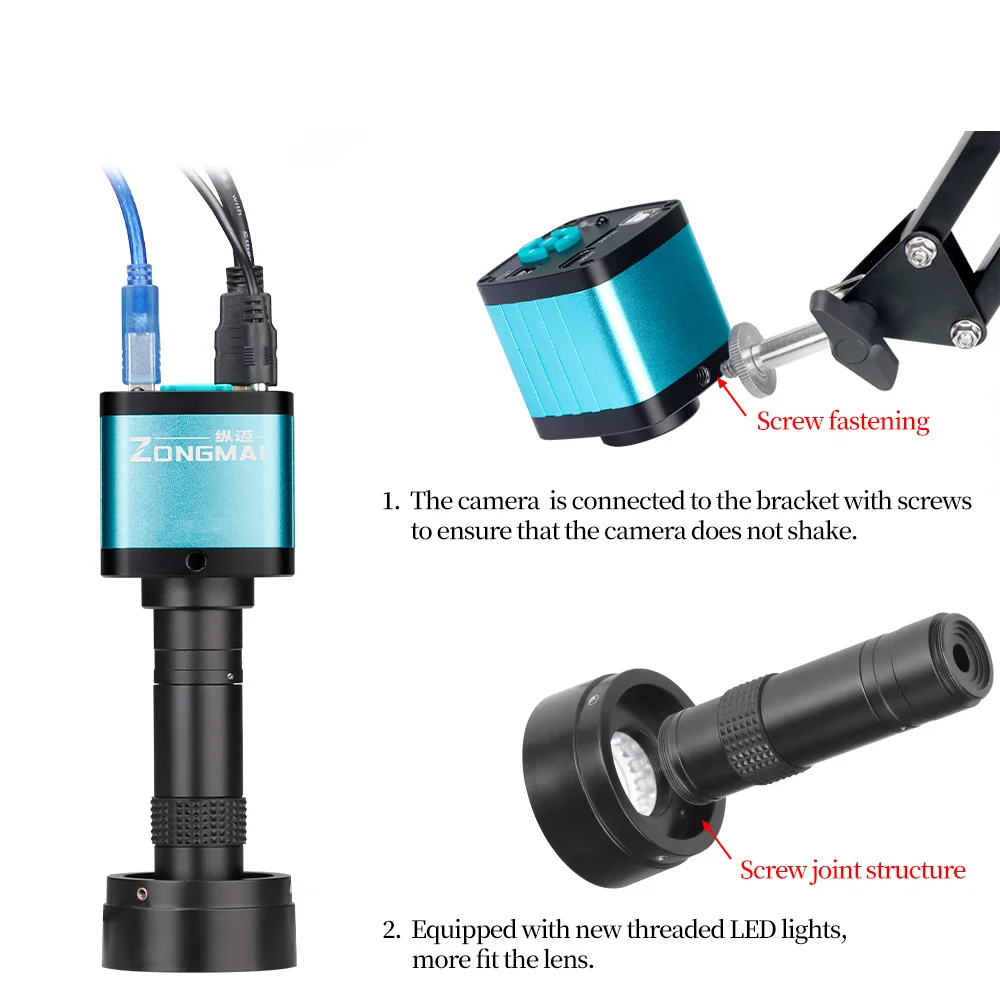

1. The camera is connected to the bracket with screws to ensure that the camera does not shake
2. Equipped with new threaded LED lights, More fit the lens.
3. Aluminum alloy material,The use of integrated design,,material has been enhanced,good design is durable.

• White balance: Auto/manual
• Cross cursor: Support multi-color, size adjustable
• TF card interface: Max 32G
• video format:MOV
• HDMI interface: HDMI/USB output
• Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
• Language:Chinese/English
• Mirroring: Support
• Frequency:50Hz/60Hz
• Monitor:16:9/16:10/4:3Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
• Power supply:5-12V 1A

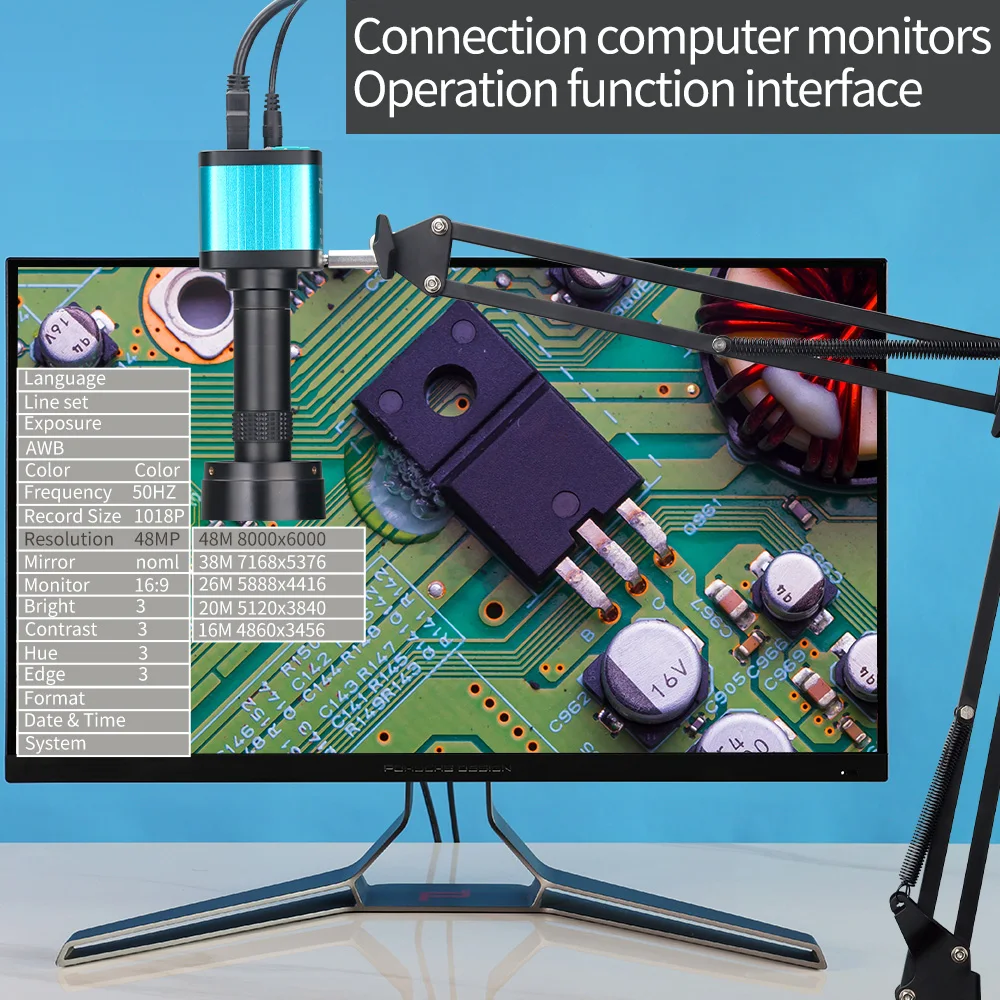

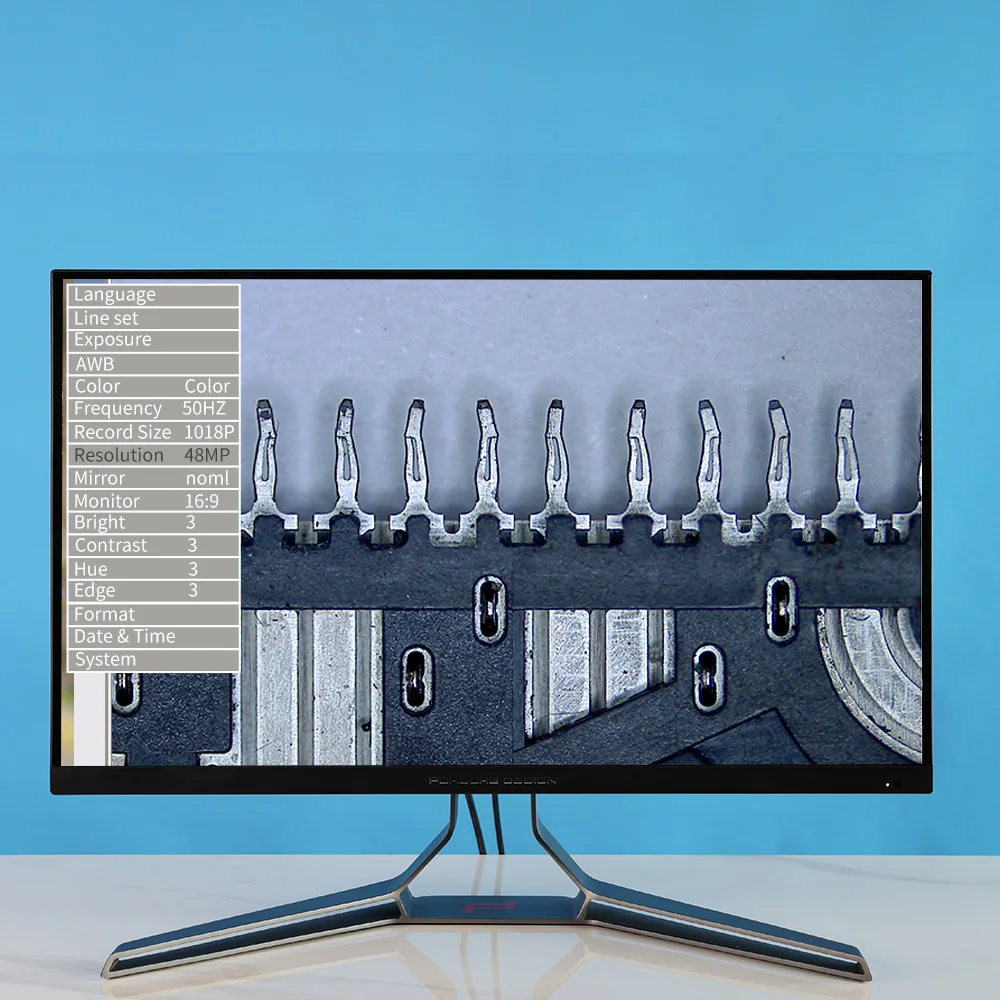

HDMI connects to the display

1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available

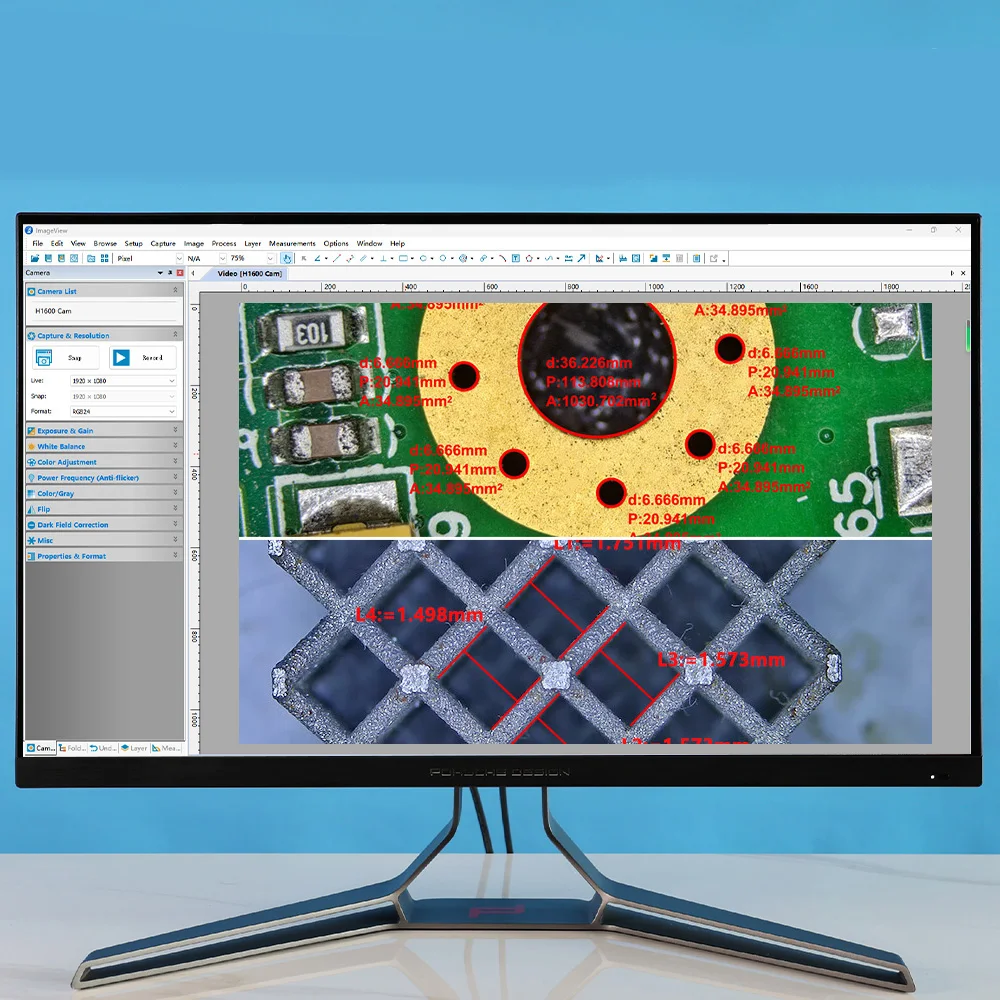

1. Install the ImageView on your computer
2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.

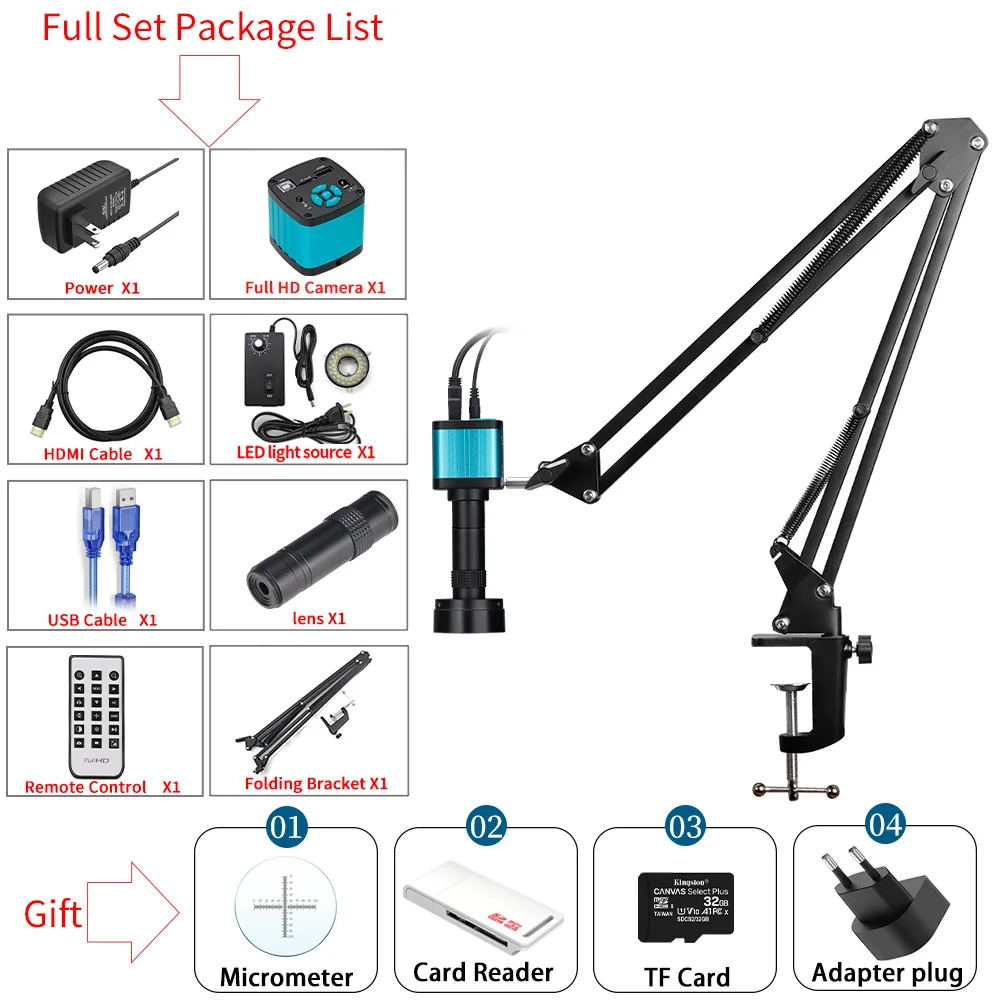

1 x FULL HD Camera

1 x Power Adapter

1 x HDMI Cable

1 x USB Cable

1 x Remote Control

1 x 37CM Folding Bracket

1 x Lens

1 x LED Light

Gift

1 x Micrometer

1 x TF Card

1 x Card Reader

1 x Adapter Plug
